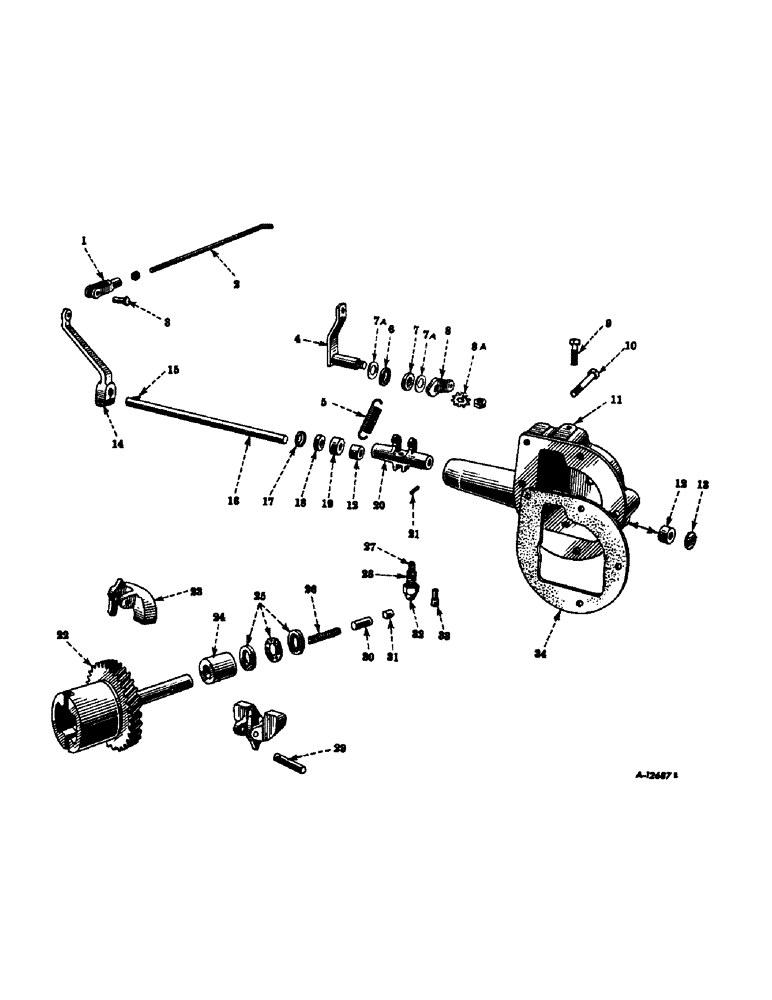

Запчасти Case IH SUPER A-1 (034) - ENGINE, GOVERNOR AND CONNECTIONS (01) - ENGINE

1

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, adjustable rod end, 1/4-28NF (same as 17730D)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

2

43617DA

ROD

connecting, governor

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rod end, 1/4 x 51/64"

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

4

46947DAXB

LEVER

governor speed change, w/shaft

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

5

46944DA

SPRING

governor

1шт.

6

46950D

RETAINER

seal, governor speed change lever shaft (order 149345R91)

1шт.

7

46949D

SEAL

governor speed change lever shaft (order 149345R91)

1шт.

7

149345R91

OIL SEAL

OIL SEAL, governor speed change lever shaft (will work for 46949D and 46950D)

1шт.

7a

355476R1

SPRING WASHER

governor spring lever (one used with oil seal, 149345R91) 304312 up

2шт.

8

355477R91

LEVER

governor spring, 51494DA, w/washer, 355476R1 (will work for 51491DAX), Serial Range: 250001-304311

1шт.

8

51491DA

LEVER

governor spring, 304312 up

1шт.

8a

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8"

1шт.

9

41359D

STOP, governor speed change lever, Serial Range: 250001-327591

1шт.

220064

NUT

hex., 1/4-20NC

1шт.

9

357432R2

BOLT

STOP, governor speed change lever, 327592 up

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

54041D

BOLT, governor housing

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

357433R91

HOUSING, governor, 6340DAX, w/nut, 114503 and stop, 357432R1 (will work for 6340DX), Serial Range: 250001-327591

1шт.

11

6340DAX

HOUSING

governor, assembly, 327592 up (composed of - (2) bearing 45753D, (1) bushing 46939D, (1) housing 6340DA (NSS), (1) pin 46942D, (1) pin 49220D, (1) plug 172531)

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

(governor rockshaft)

2шт.

13

172531

PLUG,Exp, 3/4"

expansion, 3/4"

1шт.

14

6507DA

ARM

governor rockshaft

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 7/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

106958

KEY

woodruff, no. 1

1шт.

16

46943DA

SHAFT

ROCKSHAFT, governor

1шт.

17

43483D

SEAL RETAINER

RETAINER, governor rockshaft seal

1шт.

18

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor rockshaft

1шт.

19

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

20

352522R1

LEVER

governor rockshaft (will work for 6816DB)

1шт.

21

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, 1/8" x 5/8", Type A

1шт.

22

6339DAX

GEAR

PINION, ignition unit and governor, w/pin (33 teeth)

1шт.

23

351778R1

WEIGHT

governor (will work for 6506D) (optional with 374710R1)

2шт.

23

374710R1

WEIGHT

governor (optional with 351778R1)

2шт.

24

49325D

BUSHING

SLEEVE, thrust, governor (steel) (optional with 363866R1)

1шт.

24

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, thrust, governor (nylon) (optional with 49325D)

1шт.

25

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING, ball thrust

1шт.

26

49218DA

SPRING

governor shaft bumper

1шт.

27

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

28

31804DA

BODY

governor bumper spring

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

29

46924D

PIN

governor weight

2шт.

108628

PIN

cotter, 1/16 x 7/8"

2шт.

30

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

31

49220D

STOP

PIN, governor shaft stop

1шт.

32

129-531

NUT,Crown, 7/16"-14

low crown 7/16-20NF (will work for 50046D)

1шт.

33

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, retainer, governor rockshaft lever

1шт.

34

45875D

GASKET

governor housing

1шт.

356745R91

1шт.

PACKAGE, governor, assembly (composed of - (1) arm 6507DA, (1) bearing 43481D, (1) body 31804DA, (1) bolt 54041D, (1) gasket 45875D, (1) housing 6340DAX, (1) key 106958, (1) lever 51491DA, (1) lever 46947DAXB, (1) lever 352522R1, (1) nut 114494, (1) nut 114503, (1) nut 272121, (1) nut 131487, (1) oil seal 149345R91, (2) pin 46924D, (1) pin 49219DA, (2) pin 108628, (1) pin 142485, (1) pinion 6339DAX, (1) retainer 43483D, (1) rockshaft 46943DA, (1) seal 43482D, (1) screw 179796, (2) screw 179821, (2) screw 17

1шт.
