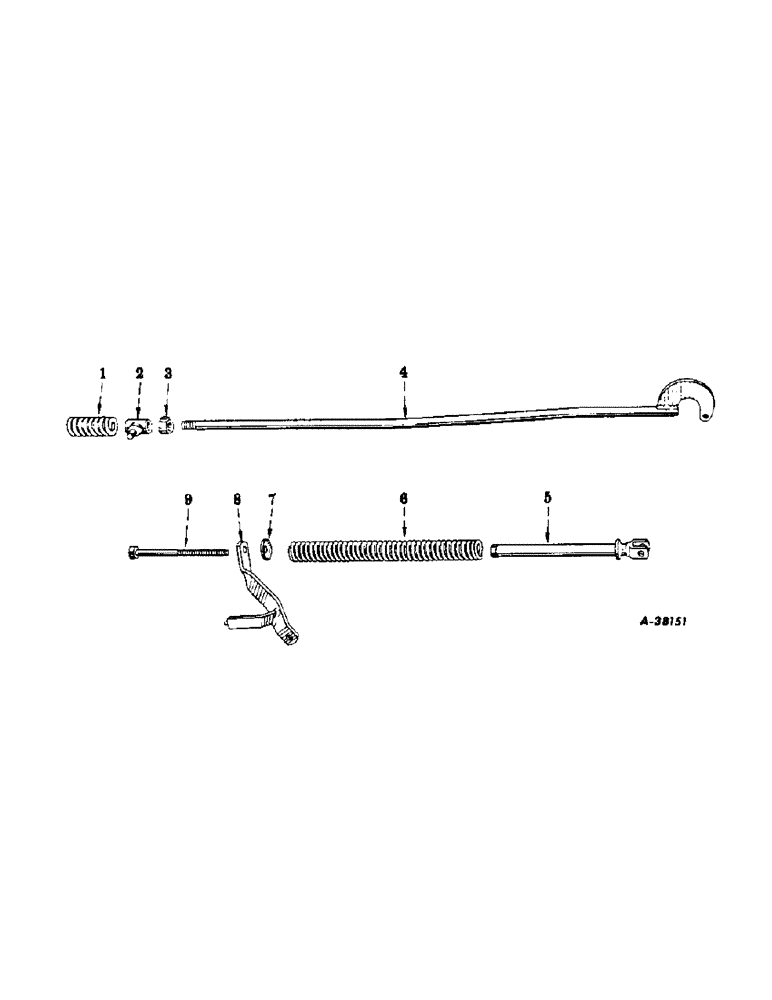

Запчасти Case IH SUPER A-1 (278) - ATTACHMENTS, FAST-HITCH, FARMALL SUPER A AND A-1, SPECIAL, LIFT LINK AND HELPER SPRING CONNECTIONS Attachments

363644R91

1шт.

ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (composed of - (1) arm 350919R2, (1) arm 350919R21, (1) arm 363217R11, (1) bolt 17526R1, (6) bolt 17553R1, (6) bolt 495967R1, (2) bushing 350693R1, (1) fitting 443566, (2) nut 102637, (6) nut 102635, (2) screw 18493R1, (1) unit 520055R91, (6) washer 103321, (2) washer 103323, (7) 103326, (2) washer 188, (6) washer Q1505) 501 to 1377

1шт.

363645R91

1шт.

ATTACHMENT, fast-hitch (for tractors equipped with touch-control system) (composed of - (1) bolt 17526R1, (6) bolt 17553R1, (6) 495967R1, (2) nut 102637, (6) nut 102635, (2) screw 18493R1, (1) unit 520055R91, (6) washer 103321, (2) washer 103323, (7) washer 103326, (2) wasaher 188, (6) washer Q1505)

1шт.

520055R91

UNIT, fast-hitch, assembly (consists of parts listed in fast- hitch units unless otherwise noted)

1шт.

1

520712R1

SPRING

lift link cushion

1шт.

2

520066R1

PIVOT

TRUNNION, lift link

1шт.

521073R1

PIN, lift link trunnion, 5/16 x 1-1/8"

1шт.

13034R1

PIN, cotter, self-opening, 1/8 x 5/8"

1шт.

3

2638X

COLLAR

lift link set, w/screw, 110448

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, set, sq-hd., cup-pt., 1/2-13NC x 3/4"

1шт.

4

520076R11

LINK

lift

1шт.

4

520710R91

LINK

520076R11, w/nut, 218445

1шт.

218445

NUT,Jam, 1"-8, G5

jam, hex., 1" - 8NC

1шт.

13139R1

PIN, cotter, self-opening, 1/4 x 1-3/4"

1шт.

103348

WASHER,1" x 2" x .134"

plain, 1-1/16" I.D. x 2" O.D. x no. 10 ga.

1шт.

5

520708R11

GUIDE, helper spring, w/nut

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, std-hd., drilled, 5/8 x 1-3/4"

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

6

520713R1

SPRING

lift arm helper

1шт.

7

520711R1

WASHER, helper spring retainer

1шт.

8

520705R91

BRACKET, helper spring anchor

1шт.

17526R1

BOLT, machine, hex-hd., 3/4-10NC x 2" (see note)

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note) 3/4"

1шт.

9

520714R1

BOLT

helper spring

1шт.
