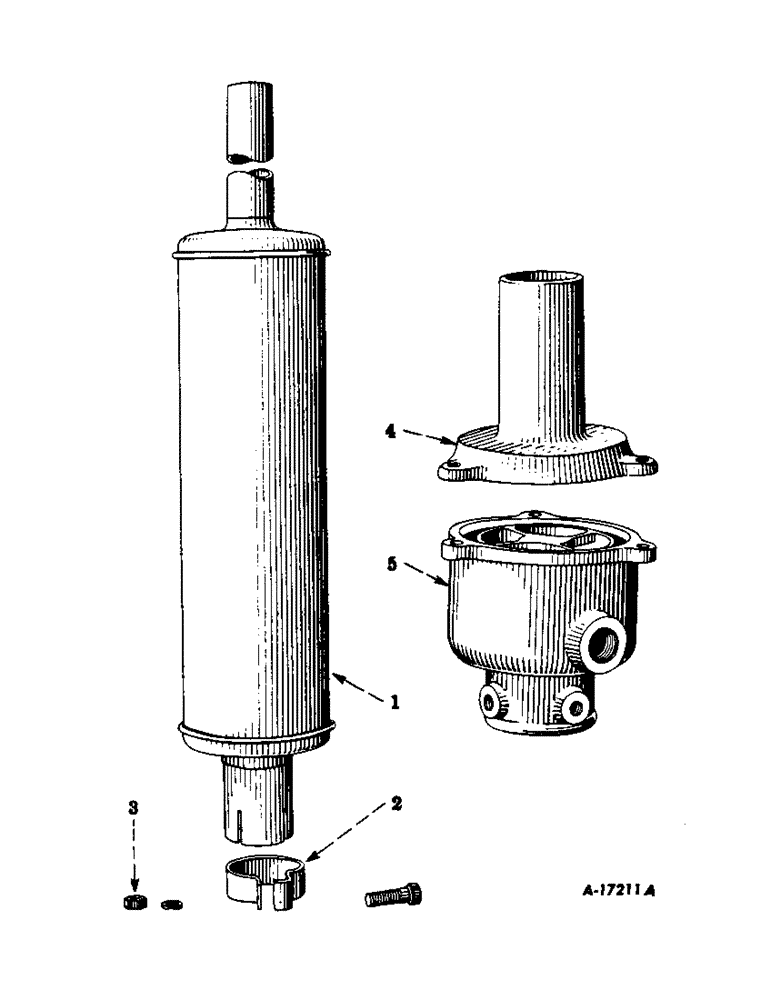

Запчасти Case IH SUPER A-1 (267) - ATTACHMENTS, EXHAUST MUFFLER AND SPARK ARRESTER, SPECIAL Attachments

48831DB

MUFFLER

ATTACHMENT, exhaust muffler

1шт.

55348D

ATTACHMENT, spark arrester

1шт.

1

360720R91

MUFFLER

exhaust (will work for 48832DC, 356004R91 and 357595R91)

1шт.

2

48889DA

CLAMP

exhaust muffler

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

93082H

NUT

exhaust muffler clamp

1шт.

4

8616D

TOP, spark arrester

1шт.

13254R1

BOLT, machine, sq-hd., 5/16-18NC x 1"

3шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

5125D

BODY, spark arrester

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

2шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, , To be inserted in the intake and exhaust manifold drain holes when exhaust muffler attachment is applied, 250001 to 3/16" x 1/2", Type A

2шт.
