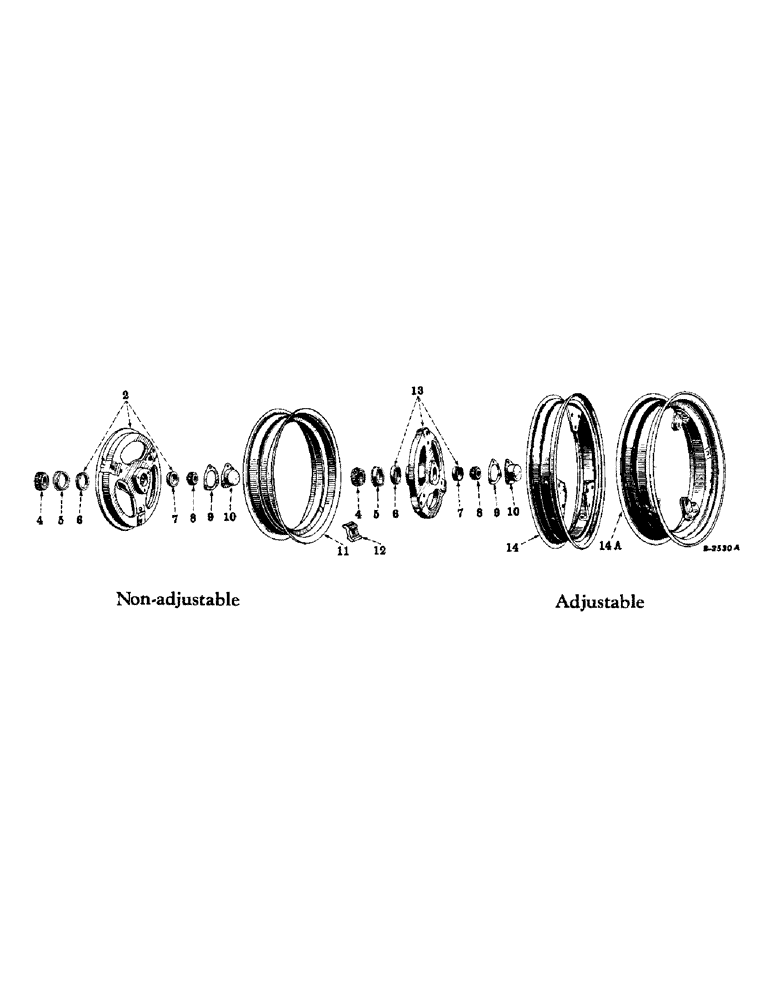

Запчасти Case IH SUPER A-1 (195) - CHASSIS, FRONT WHEELS & RIMS, PNEUMATIC TUBES & TIRES SHOULD BE ORDERED FROM THE TIRE MANUFACTURER (12) - CHASSIS

2

6787DEX

WHEEL, non-adjustable front, assembly (Super-A and A-1) (composed of - (1) cup 43440D, (1) cup 54630H, (1) ring 49117D, (1) wheel 6787DE (NSS)

2шт.

4

54631H

BEARING

CONE, tapered roller bearing (front wheel inner bearing )

2шт.

5

49117D

CUP ASSY.

RING, wear, front wheel oil seal

2шт.

6

54630H

BEARING ASSY,1.25" ID x 2.5" OD x 0.8125"

CUP, tapered roller bearing (front wheel inner bearing)

2шт.

7

43440D

CUP ASSY.

CUP, tapered roller bearing (front wheel outer bearing)

2шт.

8

13823V

CONE

tapered roller bearing (front wheel outer bearing)

2шт.

9

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

10

49115D

CYLINDER END CAP

CAP, hub, front wheel

2шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

351556R92

RIM

front wheel (Super A and A-1) (3.00 D -15 rim 4.00 x 15 tire or 5.00 x 15 tire) (used with non-adjustable wheel)

2шт.

12

48976DA

CLAMP

front wheel rim (Super A and AV-1) (used with non- adjustable wheel)

6шт.

351555R2

BOLT,Wheel, 1/2" - 20 x 2 5/8"

front wheel rim clamp

6шт.

125653

NUT,1/2"-20, G5, Thk

hex, cd-pltd., 1/2-20NF

6шт.

13

8734DX

WHEEL, adjustable front, assembly (Super-AV and AV-1) (composed of - (1) cup 54630H, (1) cup 43440D, (1) ring 49117D, (1) wheel (NSS) 8734D)

2шт.

13

9350DX

WHEEL, adjustable, front, assembly (Super-A and A-1 tractors equipped with adjustable front axle) (composed of - (1) cup 43440D, (1) cup 54630H, (1) ring 49117D, (1) wheel (NSS) 9350D)

2шт.

14

57882D

RIM, front wheel, w/clamps (used with adjustable front wheel) (Super-AV and AV-1) (3.00 - 19" rim for 4.00 x 19 tire)

2шт.

120371

NUT,1/2"-20, G5

6шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/2-20NF x 2-1/4"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

14a

352760R91

RIM, front wheel, w/clamps (used with adjustable front wheel) (4.50E - 16 rim for 6.00 x 16 tire)

2шт.

120371

NUT,1/2"-20, G5

6шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/2-20NF x 2-1/4" (Super-A and A-1)

6шт.

181709

SCREW,Hex, 1/2" - 20 x 1/2"

cap, hex-hd., cd-pltd., 1/2 20NF x 2-1/2" (Super-AV and AV-1)

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

14a

57095D

DISC, WHEEL

RIM, adjustable front wheel, w/clamps (not illustrated) (used with adjustable front wheel) (optional with 350327R91) (Super-A and A-1) (3.00 D - 15 rim for 4.00 x 15 tire)

2шт.

14a

350327R91

RIM

adjustable front wheel, w/clamps (not illustrated) (used with adjustable front wheel) (optional with 57095D) (Super-A and A-1) (3.00 D x 15 rim for 4.00 x 15 tire)

2шт.

120371

NUT,1/2"-20, G5

6шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, cap, cd-pltd., 1/2-20NF x 2-1/4"

6шт.

356148R91

2шт.

WHEEL, non-adjustable front, assembly (Super-A and A-1) (3.00 D - 15 rim for 4.00 x 15 tire or 5.00 x 15 tire) (composed of - (3) bolt 351555R2, (1) cap 49115D, (3) clamp 48976DA, (1) gasket 49116D, (3) nut 125653, (1) rim 351556R92, (3) screw 179814, (3) screw 179814, (3) washer 103320, (1) wheel 6787DEX)

1шт.

356149R91

2шт.

WHEEL, adjustable, front, assembly (Super-A and A-1) equipped with adjustable front axle (3.00 D - 15 DC rim for 4.00 x 15 tire for 5.00 x 15 tire) (composed of - (1) cap 49115D, (1) gasket 49116D, (3) nut 120371, (1) rim 57095D, (3) screw 179814, (3) screw 181707, (3) washer 103320, (3) washer 103323, (1) wheel 9350DX)

1шт.

356151R91

2шт.

WHEEL, adjustable, front, assembly (Super A and A-1) equipped adjustable front axle (4.50E - 16 DC rim for 6.00 x 16 tire) (composed of - (1) cap 49115D, (1) gasket 49116D, (3) nut 120371, (1) rim 352760R91, (3) screw 179814, (3) screw 181707, (3) washer 103320, (3) washer 103323, (1) wheel 9350DX)

1шт.

356152R91

2шт.

WHEEL, adjustable, front, assembly (Super AV and AV-1) (4.50 E - 16 DC rim for 6.00 x 16 tire) (composed of - (1) cap 49115D, (1) gasket 49116D, (3) nut 120371, (1) rim 352760R91, (3) screw 179814, (3) screw 181709, (3) washer 103320, (3) washer 103323, (1) wheel 8734DX)

1шт.

356153R91

WHEEL, adjustable front, assembly (3.00 D - 19 DC rim for 4.00 x 19 tire) (composed of - (1) cap 49115D, (1) gasket 49116D, (3) nut 120371, (1) rim 57882D, (3) screw 179814, (3) screw 181707, (3) washer 103320, (3) washer 103323 (1) wheel 8734DX)

2шт.

360119R92

PACKAGE

overhaul, front wheel bearing (consists of - (1) cone 13823V, (1) cone 54631H, (1) cup 43440D, (1) cup 54630H, (1) gasket 49116D, (1) oil seal 43463D, (1) ring 49117D, (1) washer 49118DA, (1) washer 55453D)

1шт.
