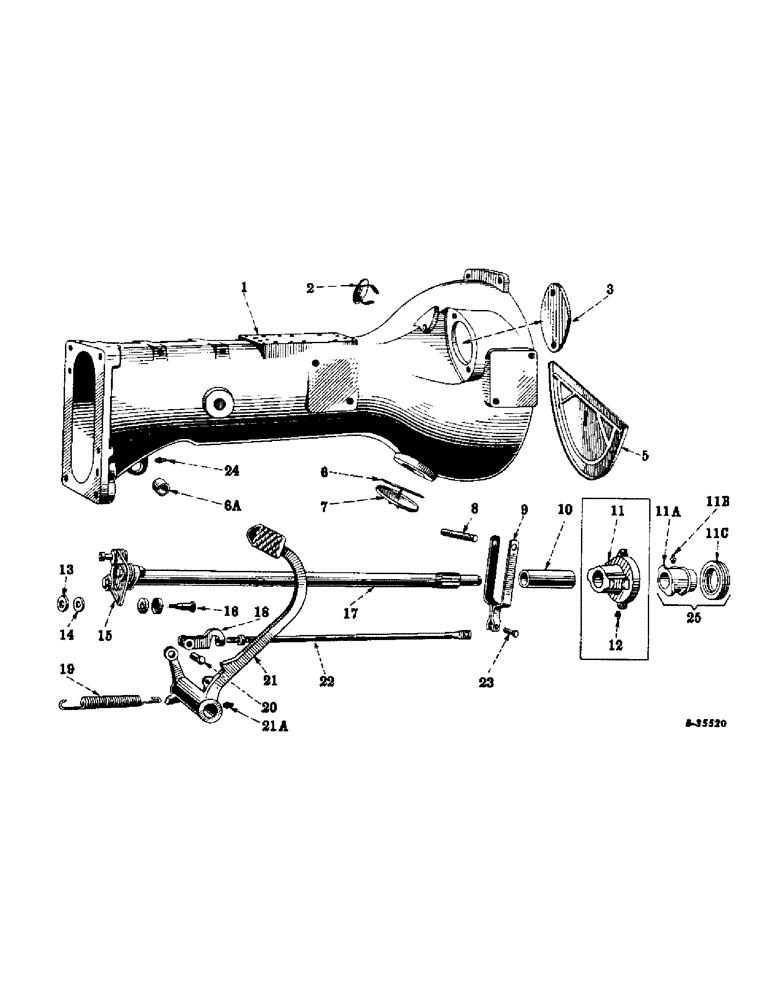

Запчасти Case IH SUPER A-1 (163) - CHASSIS, CLUTCH HOUSING, CONTROLS AND CONNECTIONS (12) - CHASSIS

1

357109R94

HOUSING, clutch, 351687R81; W/cover, 351486R1 (will work for 351687R41), Serial Range: 250001-326187

1шт.

1

351687R81

HOUSING, clutch, assembly (composed of - (2) bushing 355805R1, (1) fitting Q3852, (1) guide 43546D, (1) housing 351687R8 (NSS), 326188 up

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

4шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, cap, clutch housing (2-1/2" long)

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

57579DX

COVER

dust, clutch housing, w/2 rivets, 111871 and spring

1шт.

111871

RIVET,Oval Hd, 1/8" x 5/32"

(Will work for 350510R1) Oval Hd, 1/8" x 5/32"

2шт.

3

48554D

COVER, starter pad (for tractors not equipped with starting and lighting)

1шт.

179877

CAPSCREW,Hex, 1/2" - 13 x 5/8"

SCREW, cap, hex-hd., 1/2-13NC x 5/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

8778DAX

COVER, clutch housing, w/felt, 57575D (order 354910R91), Serial Range: 250001-298104

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

354909R1

COVER

clutch housing, 298105 up

1шт.

179812

GEAR

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

57578DX

STRAP

BAR, clutch housing hand hole cover, w/welding bolt

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

6a

355805R1

BUSHING,22.61mm ID x 25.45mm OD x 21.97mm L

brake shaft, 309775 up

2шт.

7

57576DX

COVER ASSY

COVER, clutch housing hand hole, w/felt, Serial Range: 250001-326107

1шт.

7

351486R1

COVER ASSY

COVER, clutch housing hand hole, 326188 up

1шт.

8

46278DAR

AXLE PIN

PIN, clutch release yoke pivot

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

9

47716D

CLEVIS COUPLING

YOKE, clutch release

1шт.

10

43546D

GUIDE

clutch release sleeve

1шт.

11

BEARING AND RETAINER, clutch release ("graphitar type release bearing) (order 364790R91)

1шт.

11a

6116D

SLEEVE

clutch release (see note)

1шт.

11b

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (optional with 119512) (see note) 1/8"-27 x .66 lg

1шт.

11b

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (see note)

1шт.

11c

55212D

BEARING

clutch release (see note)

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Optional with 110347) (Used with Ref 11) 1/4"-28 NPT x .54" lg

2шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (optional with 109454) (used with reference no. 11)

2шт.

13

43551D

RETAINER

clutch drive shaft joint rubber washer

8шт.

14

43550D

RUBBER WASHER

rubber, clutch drive shaft joint

8шт.

15

43549D

PLATE ASSY.

DISC, clutch drive shaft joint

1шт.

16

43552DBX

SCREW

clutch drive shaft joint, w/nut, 103026 and washer, 103321

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

351852R2

SHAFT

clutch

1шт.

18

49401D

YOKE

adjustable, clutch rod

1шт.

19

47845DA

SPRING

return, clutch pedal

1шт.

20

355788R1

PIN, clutch rod adjustable yoke (will work for 26480D)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

6400DA

PEDAL, clutch

1шт.

21a

66584D

FITTING

lubrication, straight, drive type, 3/16"

1шт.

22

49402D

BOLT

ROD, operating, clutch

1шт.

271505

BODY

hex., 7/16-20NF

2шт.

23

357369R1

AXLE PIN

PIN, clutch rod end (will work for B92-1/2)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

24

111296

FITTING, lubrication, straight, 1/8" (optional with 127800), Serial Range: 250001-276165

1шт.

24

127800

FITTING

lubrication, straight, 1/8" (optional with 111296), Serial Range: 250001-338329

1шт.

24

66584D

FITTING

lubrication, straight, drive type, 3/16", Serial Range: 276166-338329

1шт.

24

Q3852

FITTING

lubrication, straight, 1/4" (optional with 443567), 338330 up

1шт.

24

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, lubrication, straight, 1/4" (optional with Q3852), 338330 up

1шт.

25

364790R91

STRIPPER PACKAGE

BEARING, clutch release, 55212D, w/fitting, 109461 and sleeve, 6116D) (will work for 350830R31)

1шт.

57575D

SEAL

FELT, clutch housing cover, Serial Range: 250001-298104

1шт.

354910R91

PACKAGE, service, clutch housing cover (consists of one cover, 354909R1 with two screws, 179812 and two washers, 103320) (will work for 8778DAX), Serial Range: 250001-298104

1шт.
