Запчасти Case IH SUPER A (159) - CHASSIS, FUEL STRAINERS (12) - CHASSIS

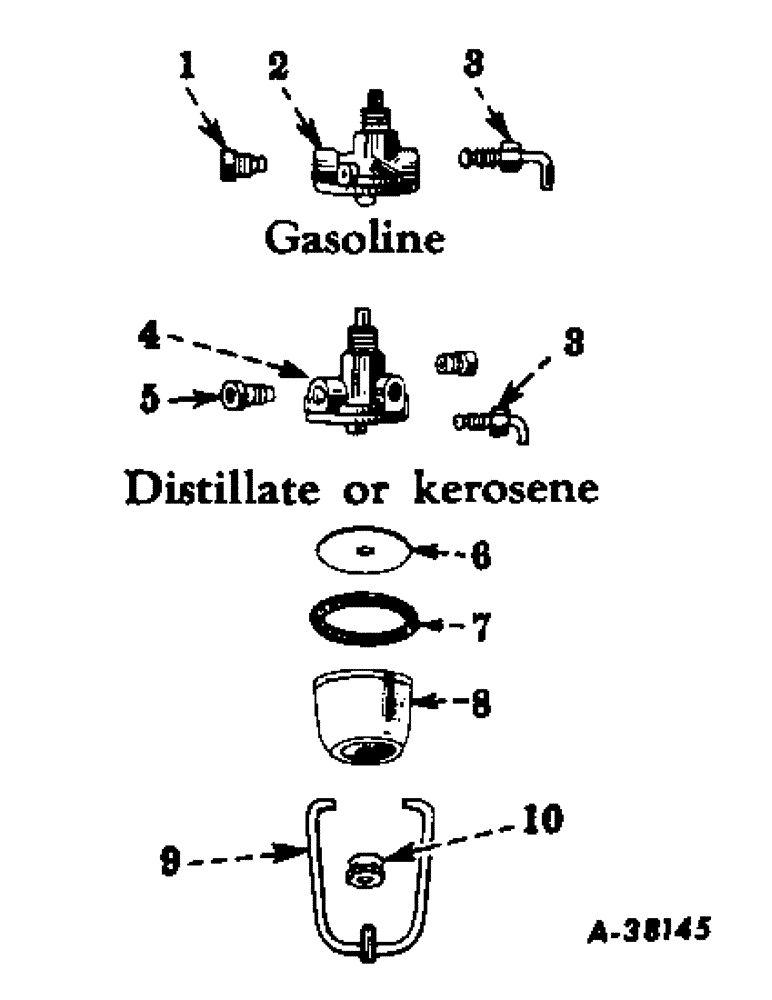

Схема запчастей Case IH SUPER A - (159) - CHASSIS, FUEL STRAINERS (12) - CHASSIS
9
5
7
3
2
1
8
4
10
6
3

Артикул

Название

Примечание

Количество

355142R92

STRAINER, gasoline, w/nut, 29899D (will work for 51066DC or 51066DCX)

1шт.

51495DD

STRAINER ELEMENT

STRAINER, fuel (distillate or kerosene)

1шт.

1

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing (gasket)

1шт.

2

54486D

BODY, strainer (gasoline), Serial Range: 250001-270380

1шт.

2

259402R91

BODY, strainer (gasoline), Serial Range: 270381-300097

1шт.

2

355141R91

BODY

strainer (gasoline), 300098 up

1шт.

3

52855D

VALVE

STEM, Serial Range: 250001-270380

1шт.

3

259403R91

COCK

STEM, 270381 up

1шт.

4

52856D

BODY

strainer (distillate or kerosene), Serial Range: 250001-270380

1шт.

4

354143R91

STRAINER ELEMENT

BODY, strainer (distillate or kerosene) 270381 up

1шт.

5

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing (distillate or kerosene)

2шт.

6

13194D

STRAINER ASSY.

SCREEN, strainer (distillate or kerosene), (gasoline), Serial Range: 250001-300097

1шт.

6

49923D

FILTER SCREEN

SCREEN, strainer (gasoline) 300098 up

1шт.

7

355888R2

GASKET

strainer (will work for 13193D) (distillate or kerosene), Serial Range: 250001-300097

1шт.

7

360679R1

GASKET

strainer (gasoline) (will work for 49924D), 300098 up

1шт.

8

357957R1

BOWL

strainer (glass) (distillate or kerosene) (gasoline), Serial Range: 250001-300097

1шт.

8

357958R1

BOWL

strainer (glass) (gasoline), 300098 up

1шт.

9

17564D

HOLDER

BAIL, (distillate or kerosene) (gasoline), Serial Range: 250001-300097

1шт.

9

49947D

COLLAR CLAMP

BAIL (gasoline), 300098 up

1шт.

10

17565DA

CUP

NUT, strainer (distillate or kerosene) (gasoline), Serial Range: 250001-300097

1шт.

10

50061D

NUT

AND CUP (gasoline) 300098 up

1шт.

Выбрано товаров: 21
