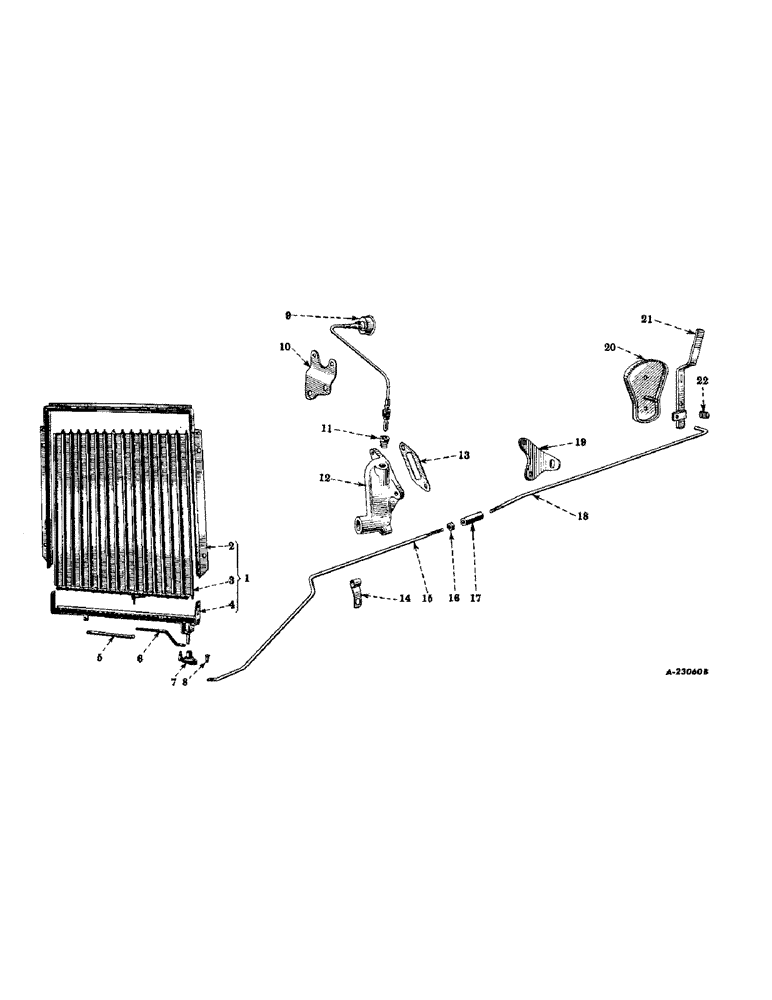

Запчасти Case IH SUPER A (150) - CHASSIS, RADIATOR SHUTTER, CONTROLS AND HEAT INDICATOR (12) - CHASSIS

51420DA

SHUTTER, radiator, assembly (composed of - (1) bellcrank 65423D, (1) link 65430D, (1) pin 65431D, (1) shutter 65429D, (1) spring 37730D)

1шт.

1

65429D

UNIT, shutter, assembly (composed of - (1) bar 65426D, (1) frame 65428D, (1) shutter 65421D)

1шт.

2

65428D

FRAME AND BEARING BAR

1шт.

843381C1

SQUARE NUT,Sq. 1/4"-20

hex., 1/4-20NC

4шт.

NLS

NO LONGER SERVICED

SCREW, slotted-rd-hd., 1/4-20NC x 1/2"

4шт.

115109

WASHER,1/4"

1/4"

4шт.

3

65421D

SHUTTERS AND OPERATING BAR

1шт.

112526

PIN, cotter, cd-pltd., 1/16 x 3/8"

1шт.

16559R1

WASHER,1/4"

cd-pltd., 17/64" I.D. x 9/16" O.D. x no. 18 ga.

1шт.

4

65426D

TIE BAR, bottom, and bearing bar

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

352627R1

WASHER, cd-pltd., 21/64" I.D. x 5/8" O.D. x no. 18 ga.

1шт.

5

37730D

SPRING, bellcrank and operating link

1шт.

6

65430D

LINK, operating

1шт.

7

65423D

BELLCRANK, w/bushing and stud

1шт.

112526

PIN, cotter, cd-pltd., 1/16 x 3/8"

1шт.

352626R1

WASHER, cd-pltd., 19/64" I.D. x 5/8" O.D. x no. 18 ga.

1шт.

8

65431D

PIN, bellcrank and operating link, 1/4"

1шт.

112526

PIN, cotter, cd-pltd., 1/16 x 3/8"

1шт.

16559R1

WASHER,1/4"

cd-pltd., 17/64" I.D. x 9/16" O.D. x no. 18 ga.

1шт.

9

53619DC

GAUGE

INDICATOR, heat, assembly (composed of - (1) bushing 51510D, (1) indicator (NSS), (2) nut 103089, (2) washer 125750) (A only)

1шт.

9

362347R91

INDICATOR

heat, assembly (composed of - (1) bushing 51510D, (1) indicator (NSS), (2) nut 103089, (2) washer 125750) (B only)

1шт.

103089

hex., no. 12-24NC

2шт.

125750

WASHER, lock, external-tooth, no. 12

2шт.

10

53620D

BRACKET, heat indicator

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

51510D

BUSHING

reducing, heat indicator

1шт.

12

351962R11

ELBOW

water inlet, w/plug, 103868 and plug, 143162 (A only)

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. (A only) Sq Hd, 1/2"-14 NPTF

1шт.

143162

PLUG

pipe, sq-socket, stl., 3/8" (optional with 444660) (A only)

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, pipe, sq-socket, stl., 3/8" (optional with 143162)

1шт.

13

46871D

GASKET

water inlet elbow (A only)

1шт.

14

51423D

BRACKET, radiator shutter control rod, front

1шт.

15

351413R1

ROD, radiator shutter control, front (A only)

1шт.

15

362346R1

ROD, radiator shutter control, front (B only)

1шт.

16

17265R1

JAM NUT

radiator shutter control rod, L.H. (will work for 69580DA)

1шт.

17

69579DA

COUPLING, radiator shutter control rod

1шт.

18

351463R1

ROD, radiator shutter control, rear

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

19

351464R2

BRACKET, radiator shutter control rod, rear (for tractors equipped with touch-control)

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW, cap, hex-hd., 1/4-20NC x 11/16"

2шт.

20

351412R11

SECTOR, radiator shutter control

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

21

351465R31

LEVER, radiator shutter control

1шт.

22

69589D

SPRING, raiator shutter control lever

1шт.
