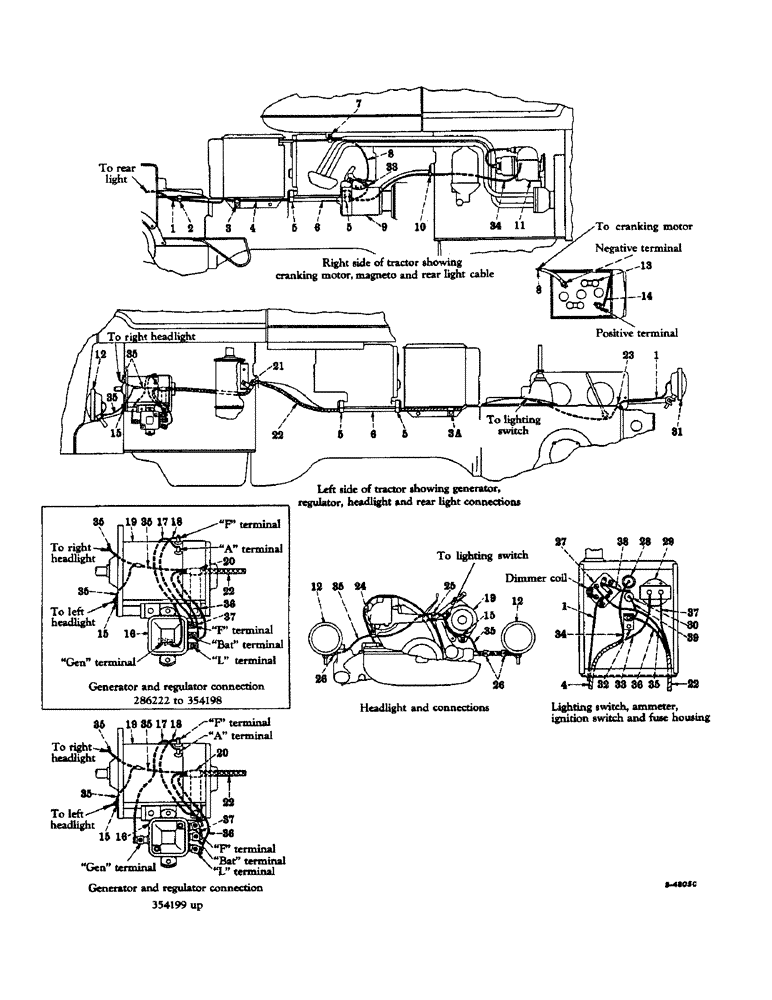

Запчасти Case IH SUPER A (140) - ELECTRICAL SYSTEM, LIGHTING AND STARTING, MAGNETO IGNITION (06) - ELECTRICAL SYSTEMS

350731R94

ATTACHMENT

lighting and starting (two headlight and one rear light)

1шт.

1

358117R92

CABLE, lighting switch to rear light (black) (will work for 39368DX)

1шт.

2

350740R1

CLIP

rear light cable (on starting crank mounting bracket bolt)

1шт.

3

60938D

CLIP, cable (on battery box hold-down bolt), Serial Range: 25001-308954

2шт.

, Serial Range: 308955-348643

1шт.

3

359526R1

CLIP, cable (on battery box mounting bolt), 348644 up

1шт.

3a

355847R1

SUPPORT, cable harness (on battery box hold-down bolt), Serial Range: 308955-348643

2шт.

3a

359526R1

CLIP, cable harness (on battery box mounting bolt), 348644 up

1шт.

4

358109R92

HARNESS

CABLE, ignition and lighting (will work for 351915R91)

1шт.

5

350741R1

CLIP (for tractors equipped with touch-control)

4шт.

5

351673R1

CLIP

(tractors not equipped with touch-control)

4шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

351911R1

SHIELD, cable

2шт.

7

351914R1

CLIP

battery cable

1шт.

8

350735R91

CABLE

battery to starting motor, w/bolt, 356062R91

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

9

355794R91

MOTOR, cranking (for components see list of parts under details of "cranking motor") (will work for 251684R91)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

351871R1

CLIP (on clutch housing bolt) (not part of attachment)

1шт.

11

351218R92

MAGNETO

assembly (for components see list of parts under details of "magneto") (not part of attachment)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

45640DB

LAMP

HEADLIGHT (conventional), assembly (for components see list of parts under details of "headlights or rear lights")

2шт.

12

357884R93

HEADLIGHT (sealed beam), assembly (for components see list of parts under details or "headlights or rear lights unit")

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

355196R93

BATTERY (see note A)

1шт.

13

354210R91

BATTERY (see note A)

1шт.

14

350736R91

CABLE

battery to ground w/bolt, 356062R91

1шт.

356062R91

BOLT

terminal w/nut, sleeve and nut

1шт.

15

61813D

CLIP

headlight cable (on generator front mounting bolt)

1шт.

16

360898R91

REGULATOR

voltage (will work for 354234R91) (for components see list of parts under details of "voltage regulator") (see note B)

1шт.

179788

SHEET

cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

358112R92

CABLE

generator "A" terminal to regulator "GEN" terminal (will work for 354229R11 and 358115R91) (see note B)

1шт.

18

358116R92

CABLE, generator "F" terminal to regulator "F" terminal (will work for 354230R91) (see note B)

1шт.

19

GENERATOR, assembly (see "generator and connections")

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

351913R1

CLIP (on generator bracket rear bolt)

1шт.

21

350742R1

CLIP (on lower air cleaner mounting bolt)

1шт.

22

350732R91

HARNESS

cable (for tractors equipped with generator relay)

1шт.

22

354231R92

HARNESS

cable (see note B)

1шт.

23

60938D

CLIP (on rear light bracket bolt)

1шт.

24

61813D

CLIP

(on crankcase front cover bolt)

1шт.

25

61813D

CLIP

headlight cable (on generator brace bolt)

1шт.

26

52116D

CLAMP, cable

3шт.

110633

NUT,#10-24

3шт.

110501

SCREW

slotted-rd-hd., no. 10-24NC x 5/8"

3шт.

27

SWITCH, lighting (Delco-Remy 1994035) (for components see list of parts under details of "lighting switch") (for tractors equipped with generator relay)

1шт.

27

363130R91

SWITCH

lighting assembly (for components see list of parts under details of "lighting switch") (see note B)

1шт.

28

54207DB

SWITCH

magneto ignition (not part of attachment) (for components see list of parts under "magneto switch and cable")

1шт.

29

42383DC

AMMETER

W/CLAMP, six nuts and six washers (optional with 354473R91)

1шт.

29

354473R91

AMMETER

W/CLAMP, six nuts and six washers (optional with 42383DC)

1шт.

29

360053R91

INDICATOR

charge, w/clamp, six nuts and six washers (use only on tractors equipped with voltage regulator)

1шт.

30

354232R91

BOX

HOUSING, fuse, w/knob, 356445R91) (will work for 351355R91, 354006R91 and 354233R91)

1шт.

31

45640DB

LAMP

LIGHT, rear, assembly (conventional) (for components see list of parts under details of "headlight or rear light unit")

1шт.

31

357884R93

LIGHT, rear assembly (sealed beam) (for components see list of parts under details of "headlight or rear light unit")

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

32

42915D

BLOCK

junction, instrument panel, w/screw (for tractors equipped with voltage regulator)

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

110503

SCREW, slotted-rd-hd., no. 10-24NC x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

33

CABLE, ammeter or charge indicator to cranking motor (order cable - reference no. 4)

1шт.

34

CABLE, magneto ignition switch magneto (order cable - reference no. 4)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/16" (not part of starting and lighting attachment)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, (Not part starting and lighting attachment) #10

1шт.

35

CABLE, lighting, Serial Range: switch-headlight

1шт.

36

CABLE, regulator "L" terminal to junction block (order harness- reference no. 22)

1шт.

37

CABLE, regulator "bat" terminal to ammeter or charge indicator (order harness - reference no. 22)

1шт.

38

CABLE, fuse housing to lighting switch (used with 354232R91)

1шт.

39

CABLE, fuse housing to junction block (used with 354232R91)

1шт.

49291D

V-BELT,0.53" W

Generator (Illustrated with "Generator and connections") 0.53" W

1шт.

43527DAX

BOX

tool

1шт.

280136

NUT,3/8"-16, G8

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49288DA

BRACE, generator (illustrated with "generator and connections")

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

354238R93

BRACKET, generator (illustrated with "generator and connections")

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

350920R1

CLAMP

rear light

1шт.

350632R1

CLIP, choke rod, front (for tractors not equipped with touch- control)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 5/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

350633R3

CLIP

choke rod, front (for tractors equipped with touch-control)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

106653

FUSE

type AGC, 20 amp.

1шт.

356445R91

KNOB

fuse housing

1шт.

8639D

LEVER, choke rod (used only with Marvel Schebler carburetor)

1шт.

100661

SCREW, slotted-rd-hd., no. 10-32NF x 5/8"

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

350738R1

LEVER, starting switch, Serial Range: 250001-305645

1шт.

49394D

ROD

POST, light, left front (Super-A only)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

1шт.

60393DX

POST, front light, L.H. (Super-A only)

1шт.

49393D

POST

light, right front (Super-A only)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

1шт.

60394DX

POST, front light, R.H. (Super-A only)

1шт.

350016R21

POST, rear light

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6812D

PULLEY

generator

1шт.

350744R1

ROD, choke

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

350739R2

ROD

pull, starting switch

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

351814R2

RUBBER, battery hold-down, long

2шт.

51714D

RUBBER, battery hold-down, short

2шт.

354260R1

SPACER,1/8" Pipe x 7/16"

instrument panel junction block (for tractors equipped with voltage regulator)

1шт.

45569D

SPACER

light

2шт.

49069D

SPACER

rear light

1шт.
