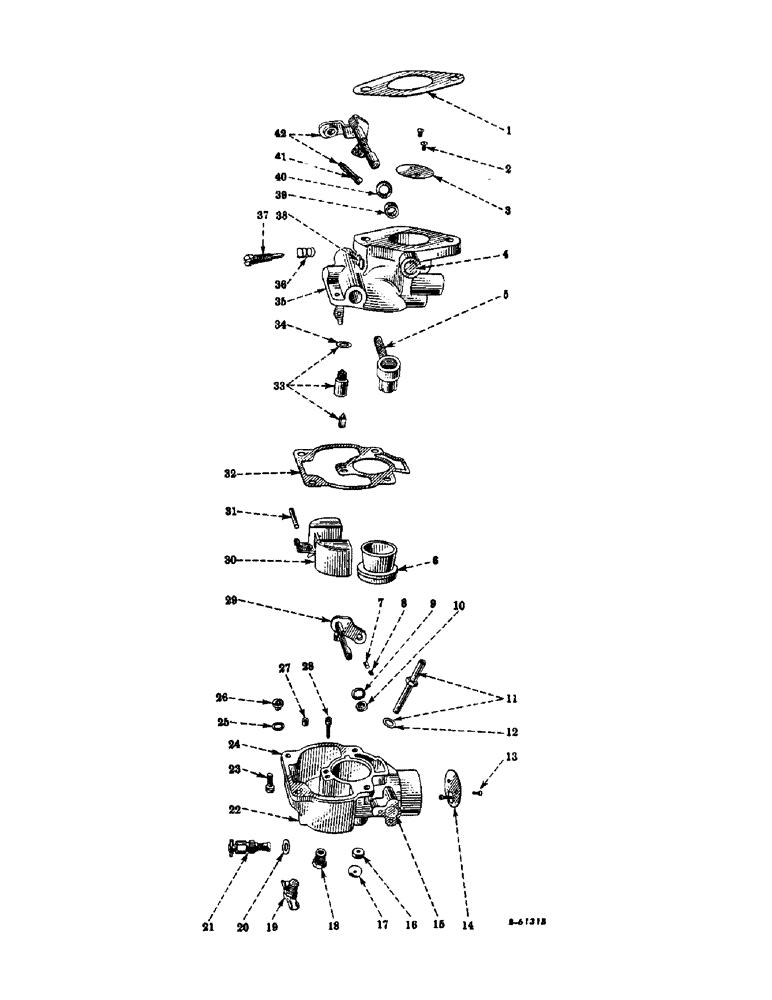

Запчасти Case IH SUPER A (037) - ENGINE, CARBURETOR, CARTER (01) - ENGINE

354184R93

CARBURETOR

assembly (gasoline) (3 x 4" C-113 engine) (order 373957R91) (see column A)

1шт.

362385R91

CARBURETOR

assembly (gasoline) (3-1/8 x 4" C-123 engine) (order 373962R91) (see column B)

1шт.

354185R92

CARBURETOR

assembly (distillate or kerosene) (3 x 4" C-113 engine) (order 373959R91) (see column C) 255418 up

1шт.

356902R92

CARBURETOR

assembly (distillate or kerosene) (3-1/8 x 4" C-123 engine (order 373961R91) (see column D)

1шт.

1

24520D

GASKET

carburetor (not part of carburetor assembly)

1шт.

2

88962R1

SCREW

throttle valve plate

2шт.

3

354804R1

PLATE, throttle valve

1шт.

4

354817R1

PLUG, expansion (aluminum)

1шт.

5

354827R91

ELBOW

W/STRAINER

1шт.

6

354819R1

VENTURI (no. 23) (A only)

1шт.

6

355707R1

VENTURI (no. 19) (B only)

1шт.

6

354820R1

VENTURI (no. 21) (C and D only)

1шт.

7

354826R1

PIN, choke lever lock

1шт.

8

354821R1

SPRING

choke lever lock pin

1шт.

9

354825R1

WASHER

choke lever shaft dust seal retainer

1шт.

10

354829R1

SEAL

dust, choke lever shaft

1шт.

11

354811R91

NOZZLE W/GASKET, 88976R1 (A and C only)

1шт.

11

355718R91

NOZZLE INJECTION

NOZZLE W/GASKET, 88976R1 (B only)

1шт.

11

356701R91

NOZZLE INJECTION

NOZZLE W/GASKET, 88976R1 (D only)

1шт.

12

88976R1

GASKET

nozzle

1шт.

13

88962R1

SCREW

choke valve plate

2шт.

14

354806R91

PLATE, choke valve

1шт.

15

354817R1

PLUG, expansion (aluminum)

1шт.

16

354830R1

PLUG

SEAL, felt, air horn

1шт.

17

354824R1

WASHER, retainer air horn dust seal

1шт.

18

354808R1

PLUG

drain (A and B only)

1шт.

19

354818R91

COCK, drain (C and C only)

1шт.

20

354815R1

GASKET

main jet adjusting needle valve (C and D only)

1шт.

21

354828R91

VALVE

needle, main jet adjustment, w/seal, 354831R1 (A and C only)

1шт.

21

357125R91

VALVE, needle, main jet adjustment, w/seal, 354831R1 (D only)

1шт.

22

68456R1

RIVET, main gas passage plug (A and B only)

1шт.

23

88963R91

SCREW, attaching, w/washer

4шт.

24

BOWL, fuel (not serviced separately) (order carburetor assembly)

1шт.

25

68462R1

GASKET

main metering jet (A and B only)

1шт.

26

354832R92

JET, main metering, w/gasket, 68462R1 (A only)

1шт.

26

362453R91

JET, main metering, w/gasket, 68462R1 (B only)

1шт.

27

362454R1

PLUG, screw (nozzle bleed) (B only)

1шт.

27

354809R1

PLUG, screw (nozzle bleed) (A, C and D only)

1шт.

28

355719R91

JET, low speed (B and D only)

1шт.

28

354810R1

PLUG, screw (idle jet) (A and C only)

1шт.

29

354812R91

LEVER

SHAFT, choke w/lever

1шт.

30

354813R91

FLOAT

1шт.

31

354814R1

PIN

float lever

1шт.

32

354823R1

GASKET

body

1шт.

33

88977R91

VALVE

needle, w/seat and gasket, 88976R1

1шт.

34

88976R1

GASKET

needle valve set

1шт.

35

354833R91

BODY

throttle assembly (composed of - (1) body (NSS), (1) plug 354817R1, (1) rivet 68459R1, (2) rivet 354807R1, (1) seal 354829R1, (2) screw 88962R1, (1) shaft 354805R92, (1) valve 354804R1, (1) washer 354825R1)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(C and D only) 5/16"-18, G5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(A and B only) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

68472R1

SPRING, idle adjusting needle valve

1шт.

37

68469R1

ADJUSTMENT SCREW

VALVE, needle adjusting

1шт.

38

68459R1

RIVET, idle passage plug

1шт.

39

354829R1

SEAL

dust, throttle shaft

1шт.

40

354825R1

WASHER

throttle shaft dust seal retainer

1шт.

41

354822R1

SCREW, throttle adjusting

1шт.

42

354805R92

SHAFT, throttle, w/lever and screw, 354822R1

1шт.

354807R1

RIVET, balance passage plug

2шт.

68457R1

RIVET, idle gas passage plug

1шт.

354831R1

SEAL, adjustment needle valve (C and D only)

1шт.

354918R92

1шт.

PACKAGE, overhaul, carburetor (not part of carburetor assembly) (used on carburetor, 354184R93) (consists of - (1) elbow 354827R91, (1) felt 354830R1, (1) gasket 88976R1, (1) gasket 354823R1, (1) gasket 354923R1, (1) jet 354832R92, (1) pin 354814R1, (2) pin 354826R1, (1) plug 354809R1, (1) plug 354810R1, (4) screw 88962R1, (2) seal 354829R1, (1) spring 354821R1, (1) shaft 354805R91, (1) valve 88977R91, (1) washer 354824R1, (2) washer 354825R1) (A only)

1шт.

354919R91

1шт.

PACKAGE, overhaul, carburetor (not part of carburetor assembly) (used for carburetor, 354185R92) (consists of - (1) elbow 354827R91, (1) felt 354830R1, (1) gasket 88976R1, (1) gasket 354815R1, (1) gasket 354823R1, (1) gasket 354923R1, (1) pin 354814R1, (2) pin 354826R1, (1) plug 354809R1, (1) plug 354810R1, (4) screw 88962R1, (2) seal 354829R1, (1) seal 354831R1, (1) spring 354821R1, (1) shaft 354805R91, (1) valve 88977R91, (1) washer 354824R1, (2) washer 354825R1) (C only)

1шт.
