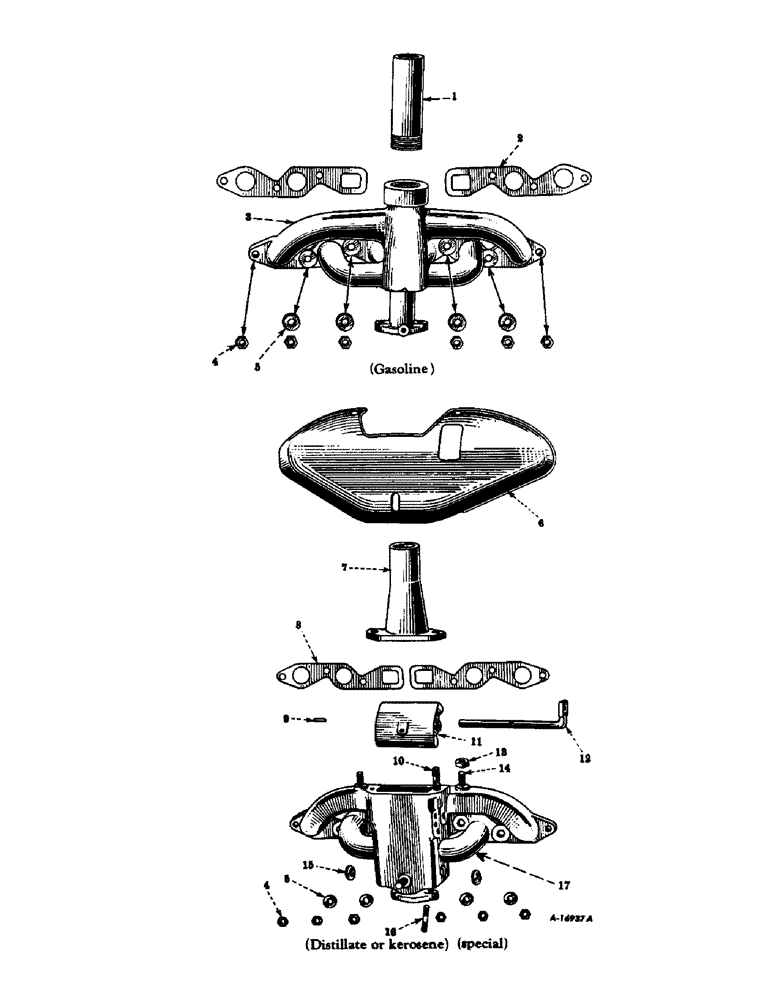

Запчасти Case IH SUPER A (031) - ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

47701DB

PIPE

exhaust (gasoline) (3 x 4" C-113 engine)

1шт.

1

356354R1

PIPE

exhaust (gasoline) (3-1/8 x 4" C-123 engine)

1шт.

2

352014R2

GASKET

exhaust and intake manifold (gasoline)

2шт.

3

251175R21

MANIFOLD

exhaust and intake, w/plug, 103865 (gasoline) (will work for 6717DCX)

1шт.

103865

PLUG, pipe, 1/8"

1шт.

4

93082H

NUT

manifold to cylinder head stud, Serial Range: 250001-255417

6шт.

4

251176R1

NUT

manifold to cylinder head stud, 255418 up

6шт.

5

24523D

WASHER

manifold to cylinder head stud nut

4шт.

6

48895DB

SHIELD, heat, manifold (distillate or kerosene) (not Bosch electric lighting)

1шт.

6

350551R1

SHIELD, heat, manifold (distillate or kerosene) (Bosch electric lighting)

1шт.

7

6743DA

MUFFLER

PIPE, exhaust (distillate or kerosene) (3 x 4" C-113 engine)

1шт.

7

356369R1

PIPE

exhaust (distillate or kerosene) (3-1/8 x 4" C-123 engine)

1шт.

8

48696D

GASKET

exhaust and intake manifold (distillate or kerosene), Serial Range: 250001-255417

2шт.

8

352014R2

GASKET

exhaust and intake manifold (distillate or kerosene), 255418 up

2шт.

9

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A (distillate or kerosene)

1шт.

10

46202D

STUD

exhaust pipe (distillate or kerosene)

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

11

6866DA

VALVE, heat, manifold (distillate or kerosene)

1шт.

12

52521DA

SHAFT, manifold heat valve (distillate or kerosene)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

102953

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/2"

1шт.

13

93082H

NUT

manifold heat shield stud (distillate or kerosene)

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

14

46102D

STUD, manifold heat shield (distillate or kerosene)

3шт.

15

41-3014

PLUG,Exp, 7/8"

expansion, 7/8" (distillate or kerosene)

2шт.

16

G8603

STUD, carburetor (distillate or kerosene)

2шт.

17

6744DDX

MANIFOLD, exhaust and intake, assembly (distillate or kerosene), 250001 to 255417 (composed of - (1) manifold 6744DD (NSS), (2) pin (used with muffler attach.) 107317, (1) plug 103865, (2) plug 172540, (2) stud G8603, (3) stud 46102D, (2) stud 46202D)

1шт.

17

351655R21

MANIFOLD, exhaust and intake, assembly (distillate or kerosene), 255418 up (composed of - (1) manifold 355655R2 (NSS), (AR) pin (used with muffler attach.) 107317, (1) plug 103865, (2) plug 172540, (2) stud G8603, (3) stud 46102D, (2) stud 46202D)

1шт.

17

354137R92

MANIFOLD, exhaust and intake, 355655R21, w/heat valve (distillate or kerosene), 255418 up (composed of - (1) manifold 351655R21, (1) nut 218438, (1) pin 142494, (1) screw 102953, (1) shaft 52521DA, (1) valve 6866DA)

1шт.
