Запчасти Case IH SUPER A (285) - ATTACHMENTS, AUXILIARY DRAWBAR, SPECIAL, FOR TRACTORS EQUIPPED WITH FAST-HITCH Attachments

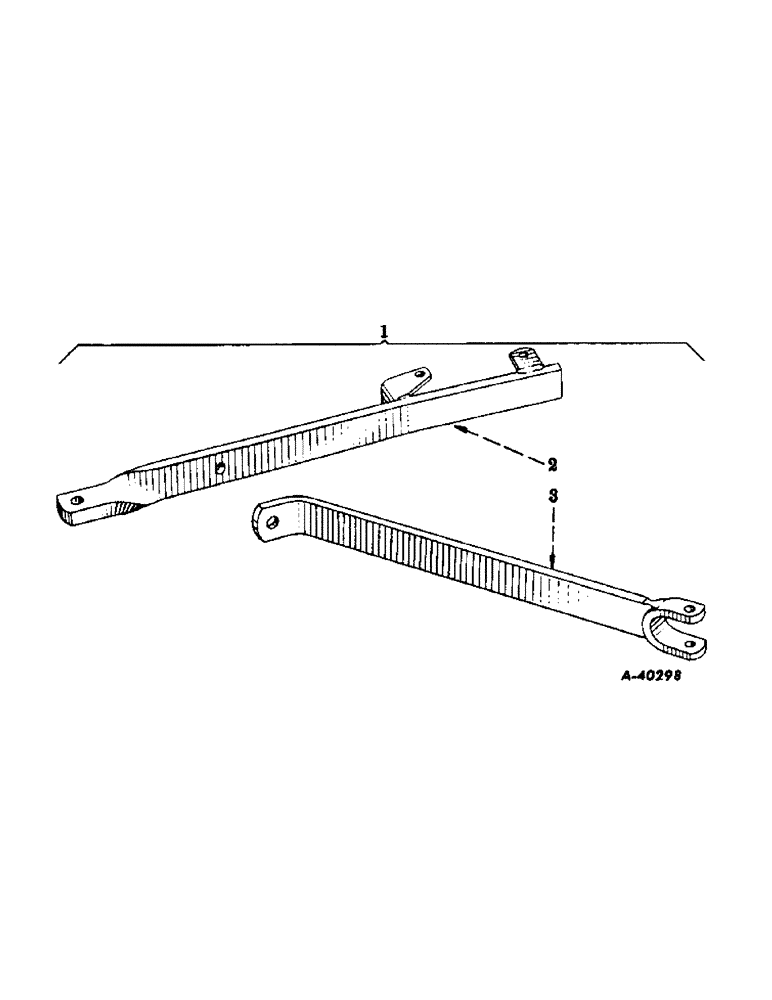

Схема запчастей Case IH SUPER A - (285) - ATTACHMENTS, AUXILIARY DRAWBAR, SPECIAL, FOR TRACTORS EQUIPPED WITH FAST-HITCH Attachments
1
3
2

Артикул

Название

Примечание

Количество

1

520056R91

ATTACHMENT, fast-hitch auxiliary drawbar (to provide hitch for power take-off operated equipment)

1шт.

2

520171R11

DRAWBAR, auxiliary

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

machine, 1/2-13NC x 2-3/4"

2шт.

114774

NUT, hex., 1/2-13NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

520173R11

BRACE, drawbar

1шт.

17552R1

BOLT, machine hex-hd., 5/8-11NC x 2-1/4"

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

machine, hex-hd., 1/2-13NC x 2-3/4"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Выбрано товаров: 12
