Запчасти Case IH SUPER A (282) - ATTACHMENTS, FAST-HITCH, FARMALL SUPER A & A-1, ROCKSHAFT, LEVELING SCREW, LATERAL AND LOCKING LINK Attachments

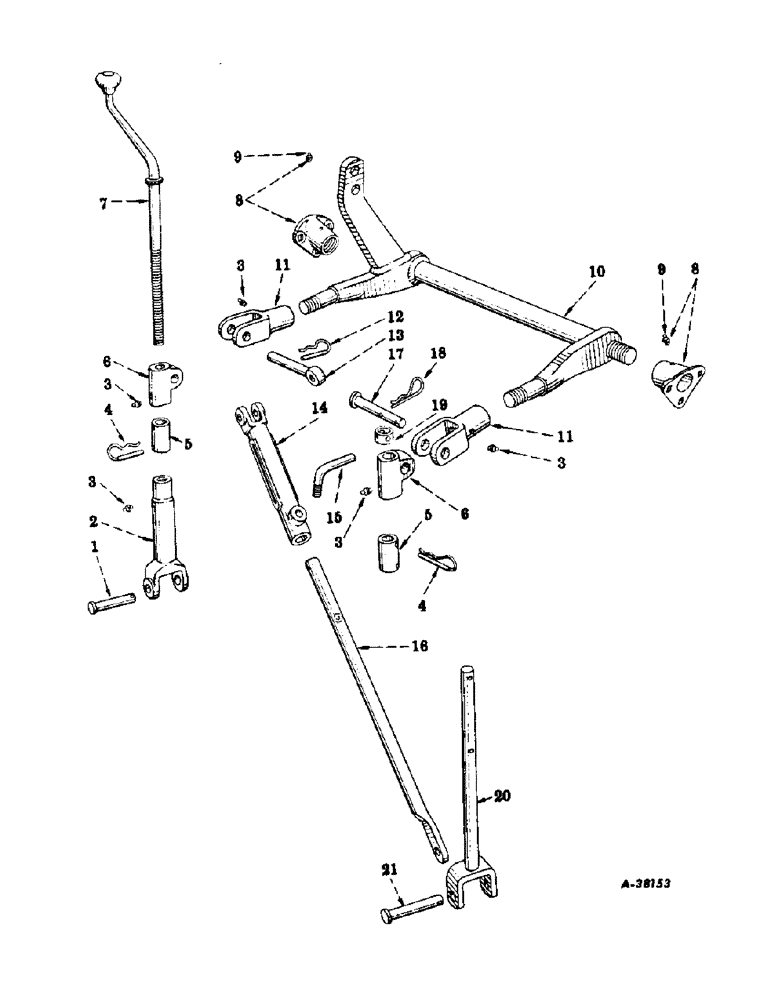

Схема запчастей Case IH SUPER A - (282) - ATTACHMENTS, FAST-HITCH, FARMALL SUPER A & A-1, ROCKSHAFT, LEVELING SCREW, LATERAL AND LOCKING LINK Attachments
11
3
19
16
8
6
15
3
5
1
17
18
9
9
4
5
14
3
2
4
3
8
20
6
3
12
7
13
21
11
10

Артикул

Название

Примечание

Количество

1

520112R1

PIN

bearing

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

2

520067R1

YOKE

LINK, lateral

1шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8"

5шт.

4

520177R11

PIN

cotter, quick attachable, w/pin

2шт.

5

520107R1

SPACER

COLLAR, free float

2шт.

6

520064R1

PIVOT

SWIVEL, lateral link

2шт.

7

520082R11

SCREW

leveling, w/knob

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

1шт.

8

512447R21

BEARING ASSY

rockshaft, w/fitting, 109358

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, rockshaft bearing (see note)

6шт.

102635

NUT,3/8"-16, G5

(See note) 3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See note) 3/8"

6шт.

Q1505

WASHER

plain, 13/32" I.D. x O.D. x no. 16 ga. (see note)

6шт.

9

109358

FITTING, lubrication, straight, drive type, 5/16"

2шт.

10

520072R11

ROCKSHAFT

w/arms

1шт.

11

520065R1

YOKE

SWIVEL, lateral

2шт.

12

520175R11

AXLE PIN

PIN, cotter, quick-attachable, w/pin

2шт.

13

520075R1

PIN

SWIVEL, locking link

1шт.

14

520068R1

YOKE

LIMITER, lateral swinging

1шт.

D3375

PIN

std-hd., drilled, 1/2 x 2-1/8"

1шт.

517843R1

COTTER PIN

PIN, cotter, quick attachable

1шт.

15

520083R1

ROD,5/8" - 11

BOLT, lock

1шт.

16

520084R1

LINK, locking

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

17

520110R1

PIN

link swivel

1шт.

18

517843R1

COTTER PIN

PIN, cotter, quick-attachable

1шт.

19

520106R1

SPACER

COLLAR, lateral link

1шт.

P13254

PIN, std-hd., drilled, 5/16 x 1-9/16"

1шт.

13034R1

PIN, cotter, self-opening, 1/8 x 5/8"

1шт.

20

520087R11

LINK

lateral, w/clevis

1шт.

21

520111R1

PIN

main bearing

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

512699R1

BRACKET, rear lamp (illustrated with headlights or rear lights and supports)

1шт.

Выбрано товаров: 34
