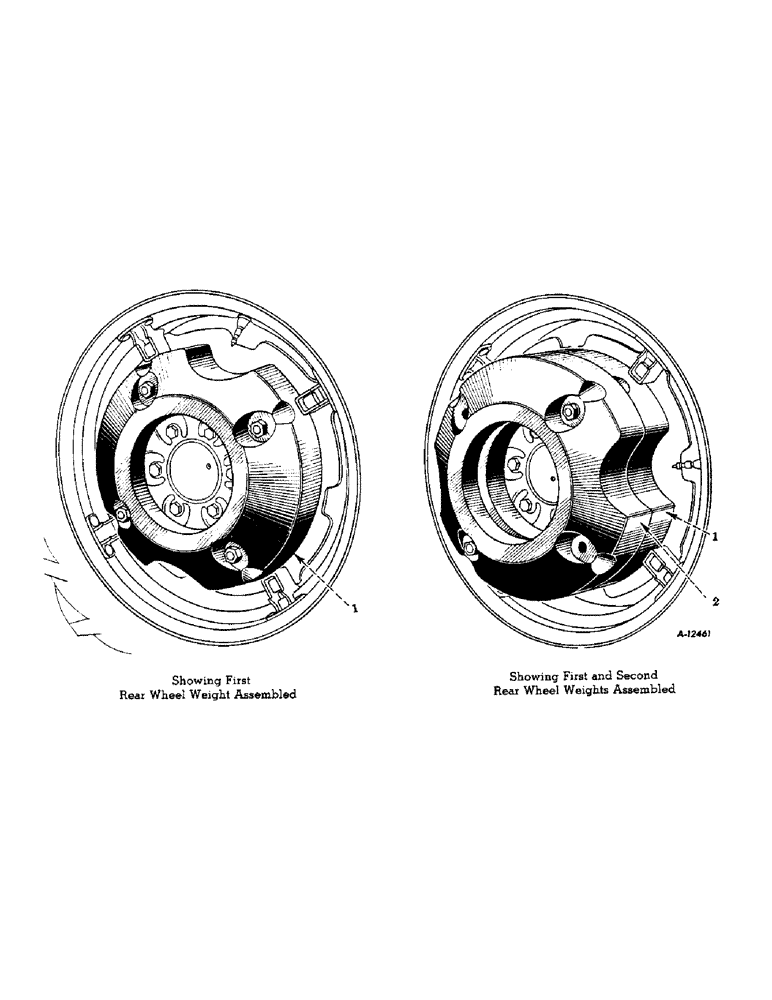

Запчасти Case IH SUPER A (276) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL, SUPER A AND A-1 Attachments

1

6701DA

WEIGHT, rear wheel, first, L.H. (approximately 145 pounds) (A only)

1шт.

15176R1

SCREW,Sq Nk, 5/8" - 11 x 3 1/2", Gr 2

BOLT, carriage, 5/8-11NC x 3-1/2", (A only)

4шт.

102639

NUT,5/8"-11, G5

(A only) 5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A only) 5/8"

4шт.

1

6701DA

WEIGHT, rear wheel, first, R.H. (approximately 145 pounds) (A only)

1шт.

15314R1

BOLT, carriage, 5/8-11NC x 5-3/4" (A only)

4шт.

102639

NUT,5/8"-11, G5

(A only) 5/8"-11, G5

4шт.

2

6701DA

WEIGHT, rear wheel, second, L.H. (approximately 145 pounds) (B only)

1шт.

2

153348R1

BOLT, carriage, 5/8-11NC x 6-3/4" (B only)

2шт.

102639

NUT,5/8"-11, G5

(B only) 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (B only) 5/8"

2шт.

2

6701DA

WEIGHT, rear wheel, second, R.H. (approximately 145 pounds) (B only)

1шт.

15394R1

BOLT, carriage, 5/8-11NC x 9" (B only)

2шт.

102639

NUT,5/8"-11, G5

(B only) 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (B only) 5/8"

2шт.
