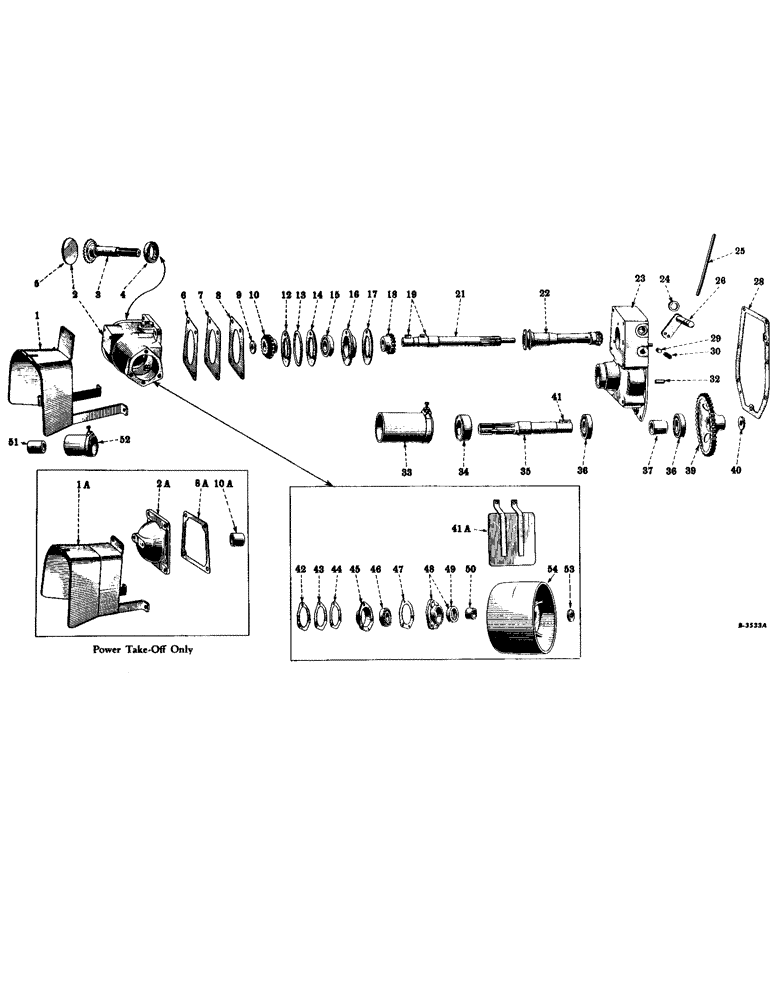

Запчасти Case IH SUPER A (268) - ATTACHMENTS, BELT PULLEY AND POWER TAKE-OFF, SPECIAL Attachments

1

55398DB

SHIELD

safety, power take-off (A and B only)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (A and B only)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A and B only) 3/8"

2шт.

1a

55403DC

SHIELD

safety, power take-off (C only)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8" (C only)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (C only) 3/8"

2шт.

2

9090DX

HOUSING, belt pulley drive, assembly (composed of - (1) housing (NSS) 9090D, (1) plug 43670D, (1) plug 103865, (1) plug 144000) (A and B only)

1шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (A and B only)

1шт.

144000

PLUG

pipe, sq-socket, stl., 1" (optional with 103876) (A and B only)

1шт.

103876

PLUG, pipe, sq-socket, C.I., I" (optional with 144000) (A and B only)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4" (A and B only)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A and B only) 7/16"

4шт.

2a

9092D

COVER

power take-off (C only)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4" (C only)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (C only) 7/16"

4шт.

3

351627R1

SHAFT

belt pulley (23 teeth) (A and B only)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A and B only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A and B only) 7/16"

1шт.

4

63441H

BEARING, ROLLER, CYL,44.01mm ID x 72mm OD x 17mm W

roller, w/outer race (belt pulley shaft inner) (A and B only)

1шт.

5

43670D

PLUG

belt pulley drive housing end (A and B only)

1шт.

6

355143R1

SHIM

belt pulley drive housing, extra light (.004") (A and B only)

1шт.

6

60582D

SHIM

belt pulley drive housing, light (.007") (A and B only)

1шт.

7

60583D

SHIM

belt pulley drive housing, medium (.015") (A and B only)

1шт.

8

60584D

SHIM

belt pulley drive housing, heavy (.030") (A and B only)

1шт.

8a

60581D

GASKET

power take-off cover (C only)

1шт.

9

43262DA

WASHER

power take-off drive shaft (A and C only)

1шт.

10

351626R1

PINION

bevel, belt pulley drive (19 teeth) (A and B only)

1шт.

10a

48152D

SPACER

power take-off drive shaft (C only)

1шт.

12

63780D

RETAINER

belt pulley drive housing sealing ring (A and B only)

1шт.

13

358208R1

SEALING RING

RING, sealing, belt pulley drive housing (will work for 58419D) (A and B only)

1шт.

14

63778D

RETAINER, power take-off drive shaft bearing (A and C only)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(A and C only) Hex, 3/8"-16 x 1", G5

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8" (A and C only)

3шт.

15

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball (power take-off drive shaft) (A and C only)

1шт.

16

60588D

CAGE, power take-off drive shaft bearing (A and C only)

1шт.

17

63799D

GASKET, power take-off drive shaft bearing (A and C only)

1шт.

18

351975R1

GEAR

PINION, power take-off drive (17 teeth) (A and C only)

1шт.

19

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY, woodruff, 3/16 x 7/8"

2шт.

(B and C only)

1шт.

21

351977R1

SHAFT

power take-off drive (A and C only)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A and C only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A and C only) 7/16"

1шт.

22

351976R11

TUBE

SHIFTER, power take-off (A and C only)

1шт.

23

9091DCX

HOUSING

power take-off drive, w/two pins, 357215R1 and plug, 6103884 (A and C only)

1шт.

103884

PLUG,Slotted, 1/4" NPT

pipe, slotted-hd., 1/4" (A and C only)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4" (A and C only)

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2" (A and C only)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A and C only) 7/16"

3шт.

24

43645D

WASHER

felt, power take-off shifter lever (A and C only)

1шт.

25

53515D

ROD

LEVER, power take-off shifter (A and C only)

1шт.

26

53517DA

AXLE PIN

SHAFT, power take-off shifter lever (A and C only)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (A and C only) 5/32" x 1 1/4"

1шт.

Q3478

WASHER

plain, 3/4" (A and C only)

1шт.

28

60589DA

GASKET

power take-off drive housing (A and C only)

1шт.

29

48102D

PIN

POPPET, power take-off shifter (A and C only)

1шт.

30

48103D

VALVE SPRING

SPRING, poppet, power take-off shifter (A and C only)

1шт.

32

357215R1

PIN

dowel, power take-off drive housing (will work for 17581D) (A and C only)

2шт.

33

51484DX

GUARD, power take-off shaft, w/clamp (A and C only)

1шт.

34

48114D

SEAL

OIL SEAL, power take-off shaft (optional with 358776R91 and 358816R91) (A and C only)

1шт.

34

358776R91

OIL SEAL

power take-off shaft (optional with 48114D and 358816R91) (A and C only)

1шт.

34

358816R91

SEAL

OIL SEAL, power take-off shaft (optional with 48114D and 358776R91) (A and C only)

1шт.

35

66184D

SHAFT

power take-off (1-3/8" spline) (A and C only)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A and C only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A and C only) 7/16"

1шт.

36

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, ball (power take-off shaft) (A and C only)

2шт.

37

48092D

BUSHING

SPACER, power take-off shaft bearing (A and C only)

1шт.

39

351822R1

GEAR

power take-off (44 teeth) (A and C only)

1шт.

40

43262DA

WASHER

power take-off shaft (A and C only)

1шт.

41

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, woodruff, 3/16 x 2-1/8" (power take-off gear) (will work for 13552D) (A and C only)

1шт.

41a

61265D

GUARD, belt pulley, w/bracket (A and B only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A and B only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A and B only) 3/8"

2шт.

42

47284D

SHIM

belt pulley shaft bearing cage, light (.007") (A and B only)

1шт.

43

47285D

SHIM

belt pulley shaft bearing cage, medium (.015") (A and B only)

1шт.

44

47286D

SHIM

belt pulley shaft bearing cage, heavy (.030") (A and B only)

1шт.

45

47281D

CAGE

belt pulley shaft bearing (A only)

1шт.

46

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, ball (belt pulley shaft, outer) 250001 to 355669 (A and B only)

1шт.

46

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball (belt pulley shaft, outer) 356001 up (A and B only)

1шт.

47

47283D

GASKET, belt pulley shaft bearing cage (A only)

1шт.

48

48085DBX

FLANGE

RETAINER, belt pulley shaft bearing, w/oil seal, 48954D (A and B only)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (A and B only)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A and B only) 3/8"

3шт.

49

48954D

SEAL

OIL SEAL, belt pulley shaft (optional with 358781R91 and 358820R91) (A and B only)

1шт.

49

358781R91

OIL SEAL

belt pulley shaft (optional with 48954D and 358820R91) (A and B only)

1шт.

49

358820R91

OIL SEAL

belt pulley shaft (optional with 48954D and 358781R91) (A and B only)

1шт.

50

43630D

SPACER

belt pulley shaft (A and B only)

1шт.

51

48087DB

SPACER

belt pulley (A and B only)

1шт.

52

54001DX

GUARD

belt pulley shaft, w/clamp (A and B only)

1шт.

53

43262DA

WASHER

belt pulley shaft (A and B only)

1шт.

54

8257D

PULLEY, belt (8-1/2" dia. - 6" face) (this size belt pulley will be sent with attachment unless another is ordered) (A and B only)

1шт.

54

356947R1

PULLEY, belt (10-1/2" dia. - 6-1/2" face) (special) (see note) (will work for 58517D) (A and B only)

1шт.

54

358392R91

PULLEY, belt (10-1/2" dia. - 6-1/2" face) (special) (see note) (will work for 58517D)

1шт.

66185D

BAR

EXTENSION, drawbar (for tractors equipped with fixed drawbar) (illustrated with fixed drawbars) (A and C only)

1шт.

114821

NUT, hex., 3/4-10NC (A and C only)

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2" (A and C only)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (A and C only) 3/4"

2шт.
