Запчасти Case IH SUPER A (204) - CHASSIS, SEAT AND PLATFORM (12) - CHASSIS

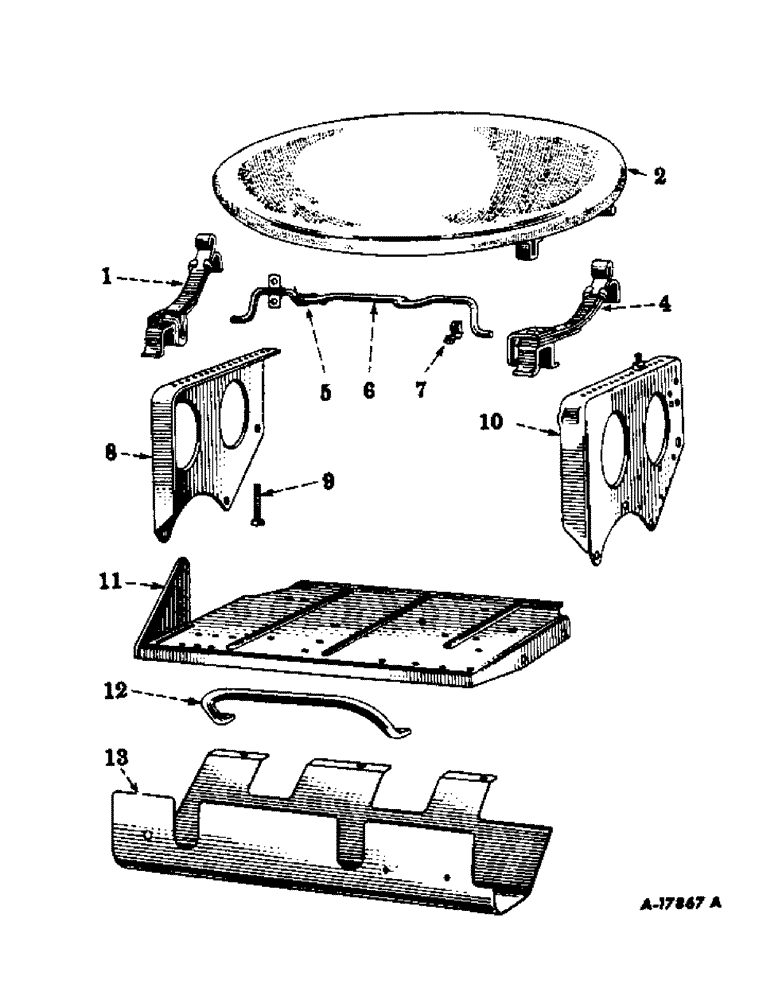

Схема запчастей Case IH SUPER A - (204) - CHASSIS, SEAT AND PLATFORM (12) - CHASSIS
7
13
6
11
1
5
10
4
8
2
12
9

Артикул

Название

Примечание

Количество

1

50587DB

SPRING, seat, R.H. (3 leaves)

1шт.

103026

NUT,3/8"-24, G5

4шт.

104102

RIVET, rd-hd., 5/16 x 1-3/8"

2шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

50570DD

SEAT

upholstered

1шт.

2

354157R92

SEAT

upholstered (deluxe type)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

350515R1

WASHER

21/32 I.D. x 1" O.D. x no. 16 ga.

2шт.

4

50586DB

SPRING, seat, L.H. (3 leaves)

1шт.

103026

NUT,3/8"-24, G5

4шт.

104102

RIVET, rd-hd., 5/16 x 1-3/8"

2шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

50582D

SPRING, seat lock rod

1шт.

6

69752DA

ROD, seat lock

1шт.

7

50581D

CLAMP

CLIP, seat lock rod

2шт.

8

51182D

BRACKET, seat support, R.H.

1шт.

9

50583D

BOLT, adjusting, seat spring

2шт.

103026

NUT,3/8"-24, G5

4шт.

10

350007R2

SUPPORT

BRACKET, seat support, L.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

48699DBX

PLATFORM, w/brace and bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

51261D

REST, foot

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

48697DB

GUARD

pedal

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

2шт.

12282R1

SCREW, slotted, 5/16-18NC x 1/2"

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

359654R91

ATTACHMENT

deluxe type upholstered seat (consists of seat, 354157R92)

1шт.

351440R93

PAD

ATTACHMENT, deluxe detachable seat pad (consists of pad, 351438R93)

1шт.

359555R91

PAD

ATTACHMENT, detachable seat pad (consists of pad, 359483R91)

1шт.

351438R93

PAD

detachable seat (rubber)

1шт.

359483R91

PAD

detachable seat (jute)

1шт.

Выбрано товаров: 42
