Запчасти Case IH SUPER A (176) - CHASSIS, FOOT BRAKES (12) - CHASSIS

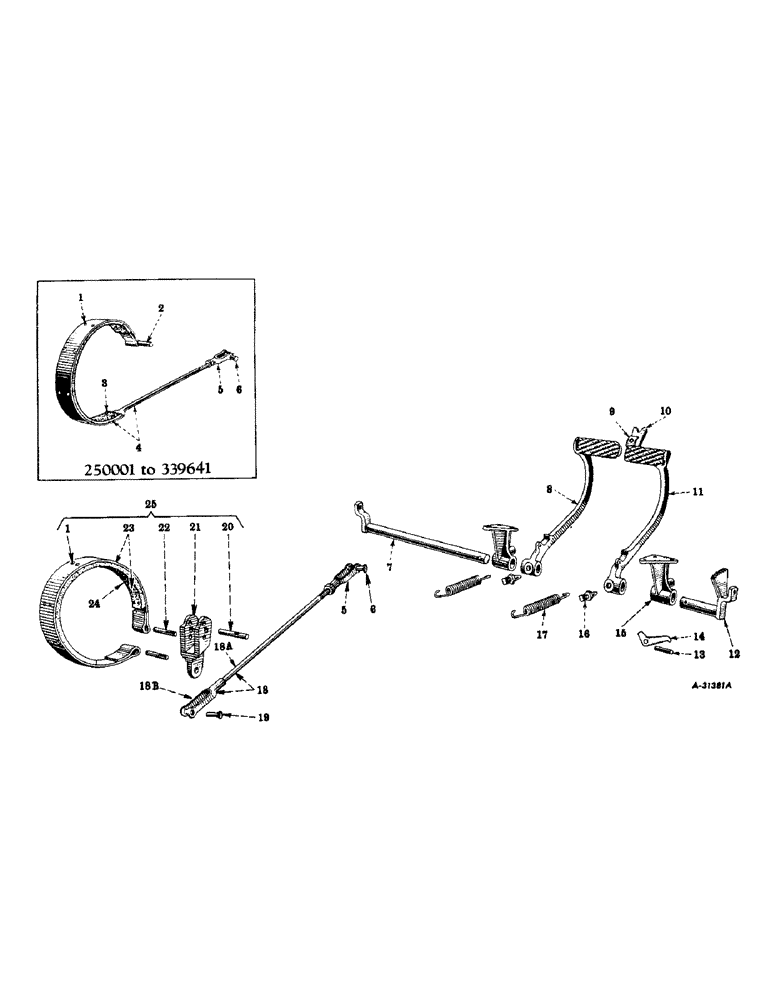

Схема запчастей Case IH SUPER A - (176) - CHASSIS, FOOT BRAKES (12) - CHASSIS
1
22
4
7
2
11
18a
6
5
9
8
12
15
5
18
10
1
17
23
6
20
25
18b
21
24
16
19
3
14
13

Артикул

Название

Примечание

Количество

1

355775R1

RIVET

brake band lining

24шт.

2

43539DA

PIN

anchor, brake band, Serial Range: 250001-339641

2шт.

3

68927DA

LINING, brake band (moulded) (set of 2), w/twelve rivets, 355775R1 (optional with 352606R93), Serial Range: 250001-339641

2шт.

3

352606R93

LINING

brake band (woven), w/twelve rivets, 355775R1 (will work for 47851DA) (optional with 68927DA), Serial Range: 250001-339641

2шт.

4

51582DCX

BAND

brake, w/twelve rivets, 355775R1 (optional with 68925DAXA), Serial Range: 250001-339641

2шт.

103026

NUT,3/8"-24, G5

2шт.

4

68925DAXA

BAND

brake, w/twelve rivets, 355775R1 (moulded) (optional with 51582DCX), Serial Range: 250001-339641

2шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, adjustable rod end, 3/8-24NF (same as 250259R91)

2шт.

6

103496

CLEVIS PIN,3/8" x 1.060"

PIN, rod end, 3/8 x 1-3/32"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

7

51425DX

SHAFT

brake, L.H., w/lever

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), (See note) 1/8" x 1 1/2"

1шт.

Q3479

WASHER

steel, plain, 7/8" (see note)

1шт.

8

6569D

PEDAL, brake, L.H.

1шт.

9

51293D

SPRING

brake pedal lock plate tension

1шт.

10

43533DA

PLATE, lock, brake pedal

1шт.

11

6570DX

PEDAL, brake, R.H., w/lock plate, 43533DA and spring, 51293D

1шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

rd-hd., 1/4 x 1-1/8"

1шт.

12

51507D

SHAFT

brake, R.H., w/lever and pedal ratchet

1шт.

13

49005D

PIN, pivot, brake ratchet pawl

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

47859DA

PAWL

brake ratchet

1шт.

15

8116DC

BRACKET

brake shaft

2шт.

425-115

NUT,5/16"-24, G5

hex, 5/16-24NF

6шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

5шт.

181341

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 5/16-24NF x 1-1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

16

43528D

SCREW

locking, brake pedal

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

17

47845DA

SPRING

brake pedal return

2шт.

18

359993R91

PACKAGE

ROD, operating, brake band, 359987R1, w/clevis, 359988R1 and two nuts, 114494 (will work for 358665R11), Serial Range: 339642-344588

2шт.

114494

NUT,Jam, 3/8"-24, G5

4шт.

18a

359987R1

STUD

ROD, operating, brake band, 344589 up

2шт.

114494

NUT,Jam, 3/8"-24, G5

4шт.

18b

359988R1

YOKE

CLEVIS, brake band, 344589 up

2шт.

19

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Brake band rod, 339642 up 5/16" x .940", HDN

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

20

358663R1

PIVOT PIN

PIN, pivot, brake band 339642 up

2шт.

21

358662R2

FORK

TOGGLE, actuating , brake band, 339642 up

2шт.

22

358664R2

PIN

brake band anchor, 339642 up

4шт.

23

358660R21

BRAKE BAND

BAND, brake, w/lining and 12 rivets, 355775R1, 339642 up

2шт.

24

358667R91

PACKAGE

LINING, brake band, w/12 rivets, 355775R1, 339642 up

2шт.

25

358659R93

BAND

brake, assembly (composed of - (1) band 358660R21, (1) pin 358663R1, (2) pin 358664R2, (1) toggle 358662R2), 339642 up

2шт.

127800

FITTING

lubricator, straight, 1/8" (optional with 111296)

2шт.

111296

FITTING, lubricator, straight, 1/8" (optional with 127800)

2шт.

358668R94

BRAKE PACKAGE

PACKAGE, field change, double acting band brake (consists of - (2) band 358659R93, (4) bushing 358658R1, (2) clevis 359988R1, (4) nut 114494, (2) pin 103373, (2) pin 103495, (1) plug 143162, (2) rod 359987R1), Serial Range: 250001-339641

1шт.
