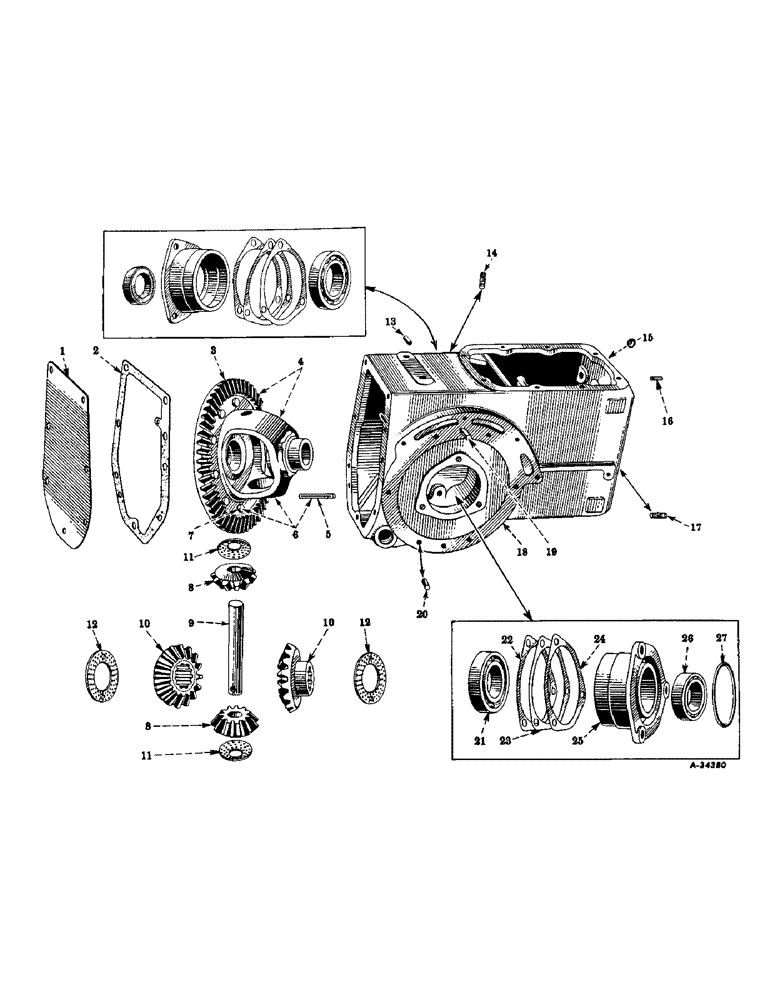

Запчасти Case IH SUPER A (169) - CHASSIS, TRANSMISSION CASE AND DIFFERENTIAL (12) - CHASSIS

1

46060D

PLATE, transmission case gear cover

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1"

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

2

60589DA

GASKET

transmission case rear cover plate

1шт.

3

46371DX

GEAR

drive, differential, w/rivets, 53972VA

1шт.

4

46385DC

CASE, differential, 6579DDX, w/drive gear

1шт.

5

95022H

AXLE PIN

PIN, lock, differential pinion shaft

1шт.

6

6579DDX

CASE, differential assembly (composed of - (1) case 6579DD (NSS), (1) pin 95022H, (10) rivet 53972VA, (2) washer 109870R1, (2) washer 109871R1)

1шт.

7

53972VA

RIVET

differential drive gear

10шт.

8

50817R1

GEAR

PINION, differential (10 teeth)

2шт.

9

1094Y

SHAFT

differential pinion

1шт.

10

50818R1

GEAR

side, differential (16 teeth)

2шт.

11

109871R1

WASHER

thrust, differential pinion, 356001 up

2шт.

12

109870R1

THRUST WASHER

thrust, differential side gear, 356001 up

2шт.

13

358658R1

BUSHING

toggle pivot pin, 339642 up

1шт.

14

355790R1

STUD

mounting, rear axle housing, 303542 up

6шт.

362443R1

NUT

hex., rear axle housing mounting stud

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

15

172558

PLUG,Exp, 1 1/4"

transmission case idler shaft hole (same as 13806D)

1шт.

16

357232R1

PIN

dowel, transmission case to clutch housing (will work for 15945D)

2шт.

17

7210T

STUD, transmission countershaft bearing cage

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

362755R11

1шт.

CASE, transmission, assembly (will work for 355793R91 and 8844DCX) (composed of - (1) bushing 358658R1, (1) case 362755R1 (NSS), (2) corks 104940, (6) nut 362443R1, (2) pins 357232R1, (3) pins 362035R1, (1) pin 362376R1, (1) plug 143162, (1) plug 144000, (1) plug 172558, (1) screw 61082D, (1) stud 7210T, (6) studs 355790R1, (1) washer 103320, (6) washer 103322))

1шт.

103867

PLUG

pipe, sq-hd., C.I., 3/8", Serial Range: 250001-339641

1шт.

103876

PLUG, pipe, sq-socket, C.I., I" (optional with 144000)

1шт.

143162

PLUG

pipe, sq-socket, stl., 3/8" (used with double acting band brake package), Serial Range: 250001-339641

1шт.

Also 339806 up

1шт.

144000

PLUG

pipe, sq-socket, stl., 1" (optional with 103876)

1шт.

19

24550D

PIN

dowel, rear axle and differential housing (7/16" dia. x 1-1/8"), Serial Range: 250001-355669

4шт.

19

362035R1

PIN, dowel, rear axle and differential housing (short) (7/16" dia. x 1-3/8"), 3560001 up

3шт.

20

362376R1

PIN

dowel, rear axle and differential housing (long) (7/16" dia. x 1-13/16"), 356001 up

1шт.

21

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

(differential)

2шт.

22

50492D

SHIM

differential ball bearing retainer, fine (.004")

1шт.

22

46062D

SHIM

differential ball bearing retainer, light (.007")

1шт.

23

46063D

SHIM

differential ball bearing retainer, medium (.015")

1шт.

24

46064D

SHIM

differential ball bearing retainer, heavy (.030")

1шт.

25

6578DBX

RETAINER, ball bearing, differential, w/oil seal, 46282D and ring, 355740R1

2шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

26

46282D

SEAL

OIL SEAL, differential ball bearing retainer (optional with 358773R91 and 358813R91)

2шт.

26

358773R91

RETAINER

OIL SEAL, differential ball bearing retainer (optional with 46282D and 358813R91)

2шт.

26

358813R91

OIL SEAL

differential ball bearing retainer (optional with 46282D and 358773R91)

2шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

RING, seal, differential ball bearing retainer, 295075 up

2шт.
