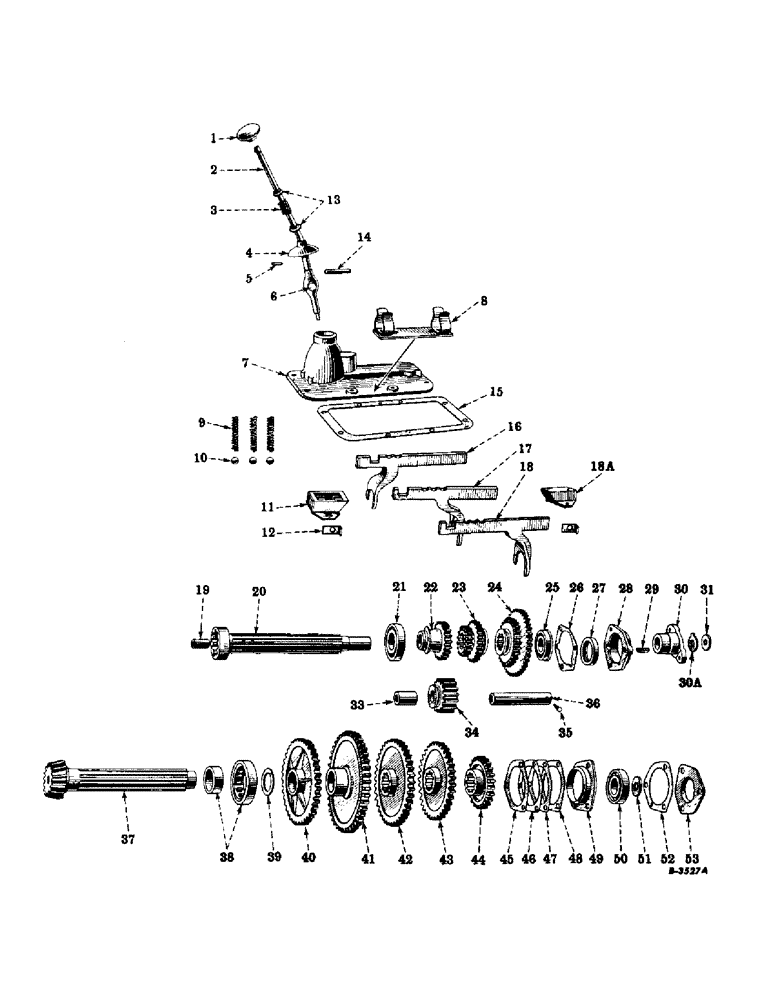

Запчасти Case IH SUPER A (166) - CHASSIS, GEAR SHIFTER MECHANISM AND TRANSMISSION (12) - CHASSIS

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

49493D

LEVER

gear shift

1шт.

3

43578D

SPRING

gear shift swivel

1шт.

4

49489D

SHIELD

gear shift swivel

1шт.

5

43580D

PIN

gear shift swivel spring retainer

1шт.

6

49488D

PIN

SHAFT, gear shift swivel, large

1шт.

7

6832DAX

COVER, transmission case w/plug, 144000

1шт.

103876

PLUG, pipe, sq-socket, C.I., I" (optional with 144000)

1шт.

144000

PLUG

pipe, sq-socket, stl., I" (optional with 103876)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

350639R91

BRACKET

PLATE, starting crank mounting bracket w/four rivets, 110637

1шт.

110637

RIVET, rd-hd., 1/8 x 5/16"

4шт.

9

41058DA

SPRING

gear shift poppet ball

3шт.

10

13722D

BALL

(chrome stl.,), 1/2" (gear shifter poppet) (optional with 2616)

3шт.

10

D2616

BALL

(chrome stl.,), 1/2" (gear shifter poppet) (optional with 13722D)

3шт.

11

47289DB

GUIDE

gear shift rail, rear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

48567D

SUPPORT

LOCK, gear shift rail guide support capscrew

4шт.

13

43579D

RETAINER

gear shift swivel spring

2шт.

14

49492D

AXLE PIN

SHAFT, gear shift swivel, small

1шт.

15

47279DA

GASKET

transmission case cover

1шт.

16

51178DBX

FORK

AND RAIL, reverse speed gear shifter

1шт.

17

48833DBX

FORK

AND RAIL, first and second speed gear shifter

1шт.

18

48834DBX

FORK

AND RAIL, third and fourth speed gear shifter

1шт.

18a

357538R91

GUIDE

gear shift rail, front (will work for 47289DA)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

351144R1

BUSHING

transmission spline shaft

1шт.

20

351143R11

SHAFT

transmission spline, 10 teeth, w/bushing, 351144R1

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

21

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

(transmission spline shaft, rear)

1шт.

22

351063R11

GEAR

reverse spline, 20 teeth, w/oil retainer and rivet, 105088

1шт.

105088

RIVET,But Hd, 3/16" x 2 1/4"

rd-hd., 3/16 x 2-1/4"

1шт.

23

351064R1

GEAR

sliding, first and second speed (16 and 22 teeth)

1шт.

24

351065R1

PINION

GEAR, sliding, third and fourth speed (26 and 37 teeth)

1шт.

25

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball, w/snap ring (transmission spline shaft, front)

1шт.

26

46503D

GASKET,0.79mm Thk

transmission spline shaft bearing retainer

1шт.

27

42177D

OIL SEAL

OIL SEAL, transmission spline shaft (optional with 358765R91 and 358808R91)

1шт.

27

358765R91

SEAL

OIL SEAL, transmission spline shaft (optional with 42177D and 358808R91)

1шт.

27

358808R91

OIL SEAL

transmission spline shaft (optional with 42177D and 358765R91)

1шт.

28

6425DX

RETAINER

transmission spline shaft bearing, w/oil seal, 42177D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

29

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, transmission drive flange (will work for 13522D)

1шт.

30

43548D

CLAMP

FLANGE, transmission drive

1шт.

30a

359992R1

GASKET

transmission drive flange

1шт.

31

43262DA

WASHER

transmission drive flange

1шт.

33

51177DR

BEARING

BUSHING, reverse idler gear

1шт.

34

351058R11

GEAR, reverse idler, 16 teeth, w/bushing

1шт.

35

61082D

SCREW, lock, reverse idler shaft

1шт.

WASHER, lock, 5/16"

1шт.

36

351816R1

SHAFT

reverse idler

1шт.

37

49298D

SHAFT

COUNTERSHAFT AND BEVEL PINION (13 teeth)

1шт.

181397

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

38

49339D

BEARING ASSY,35mm ID x 72mm OD x 16.77mm W

roller, w/inner race countershaft

1шт.

39

58338D

WASHER

SPACER, first speed gear

1шт.

40

354643R11

PINION

GEAR, transmission oiler, w/bushing (will work for 58340D)

1шт.

41

351059R1

GEAR, first speed (45 teeth)

1шт.

42

351060R1

GEAR

second speed (39 teeth)

1шт.

43

351061R1

PINION

GEAR, third speed (35 teeth)

1шт.

44

351062R1

PINION

GEAR, fourth speed (24 teeth)

1шт.

45

47284D

SHIM

countershaft bearing cage, light (.007")

2шт.

46

47285D

SHIM

countershaft bearing cage, medium (.015")

1шт.

47

47286D

SHIM

countershaft bearing cage, heavy (.030")

1шт.

48

50493D

SHIM

countershaft bearing cage, fine (.004")

1шт.

49

47281D

CAGE

countershaft bearing

1шт.

50

ST213T

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, ball (countershaft)

1шт.

51

43262DA

WASHER

countershaft

1шт.

52

47283D

GASKET, countershaft bearing cage

1шт.

53

47282DA

COVER

RETAINER, countershaft bearing cage

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
