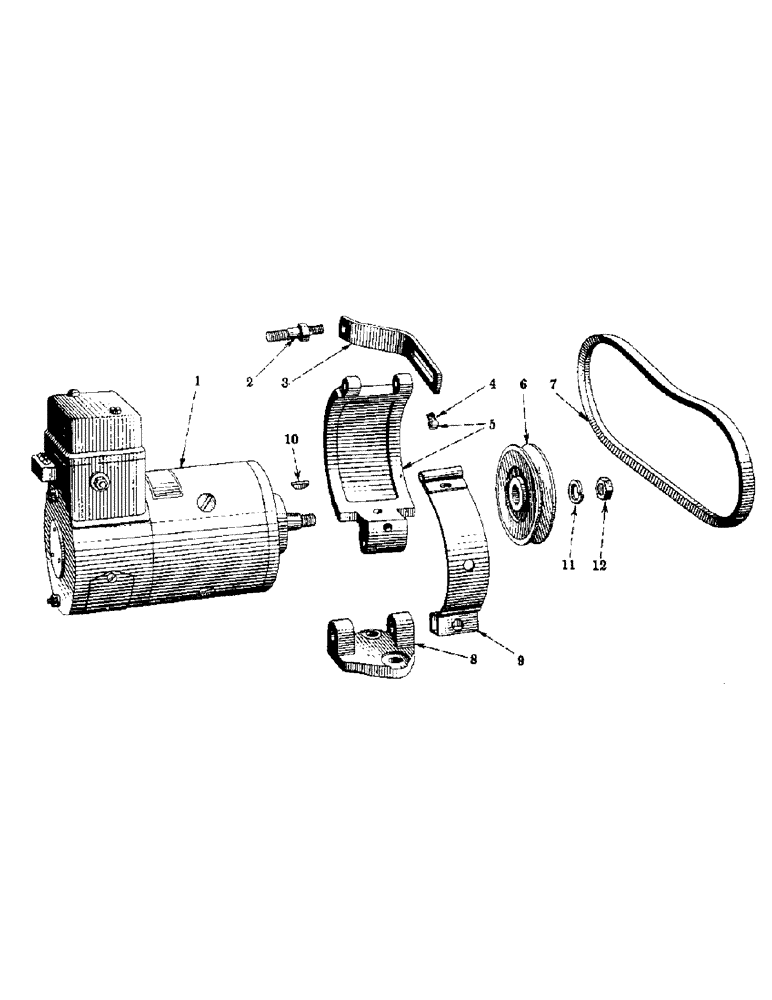

Запчасти Case IH FARMALL MV (131) - ELECTRICAL SYSTEM, DIESEL ENGINE, GENERATOR, BOSCH "NO-BATTERY" TYPE, AND CONNECTIONS, SPECIAL (06) - ELECTRICAL SYSTEMS

1

61875D

GENERATOR (Bosch no. ARJF 75-6-900A-16) (No longer supplied for service)

1шт.

All service and replacement parts should be referred to the American Bosch Corporation.

1шт.

2

47877D

GENERATOR STUD

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

61247DA

GENERATOR BRACE

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

4

23603D

GENERATOR DOWEL PIN

1шт.

5

3281DAX

GENERATOR SADDLE WITH DOWEL PIN, 23603D

1шт.

114-259

BOLT,Hex, 3/8" - 24 x 3-1/4", Gr 5

CAP SCREW, 3/8 x 3-1/4" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

9168D

GENERATOR PULLEY

1шт.

7

54857DA

BELT

GENERATOR BELT (Used with generator ARJF 75-6-900A-16)

1шт.

8

9169D

GENERATOR BRACKET

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

CAP SCREW, 7/16 x 1-1/8" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

26080DB

GENERATOR STRAP

1шт.

181326

CAP SCREW, 1/4 x 2-3/4" N.F., hex head

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

GENERATOR PULLEY KEY (American Bosch no. MKE 3-5)

1шт.

All service and replacement parts should be referred to the American Bosch Corporation.

1шт.

11

GENERATOR PULLEY NUT LOCKWASHER (American Bosch no. WAI-17)

1шт.

All service and replacement parts should be referred to the American Bosch Corporation.

1шт.

12

GENERATOR PULLEY NUT (American Bosch no. WMU-529/1)

1шт.

All service and replacement parts should be referred to the American Bosch Corporation.

1шт.
