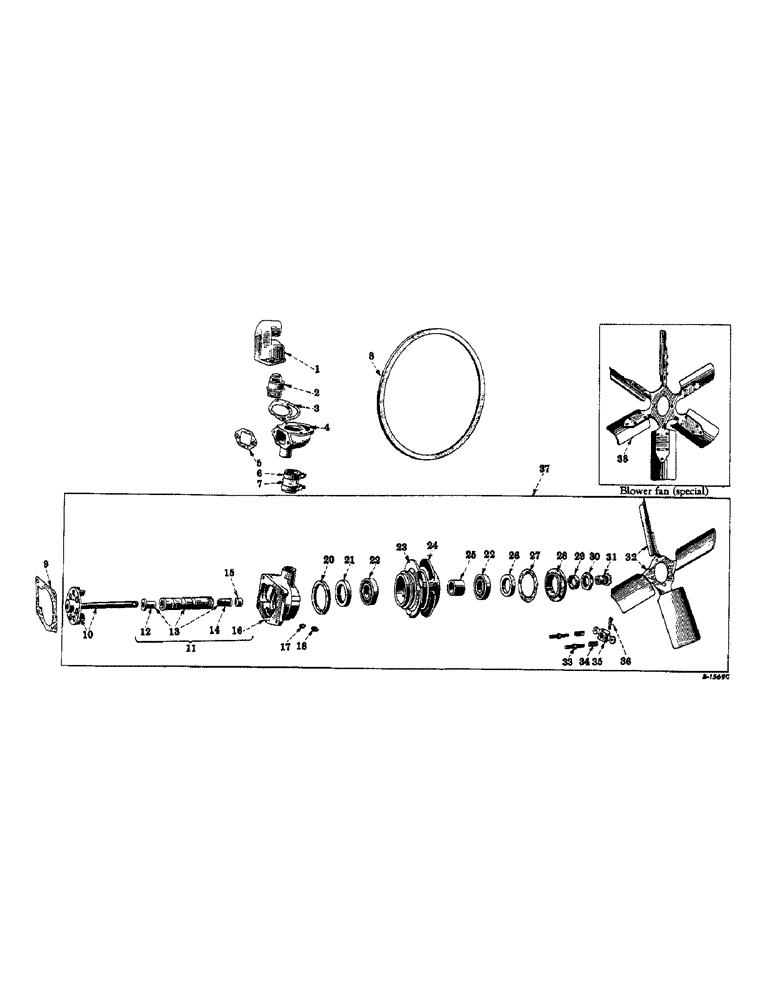

Запчасти Case IH FARMALL MV (058) - DIESEL ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

1

256066R11

THERMOSTAT HOUSING WITH PLUG, 103878 (Will work for 8279DX)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103878

PLUG

PIPE PLUG, 1/4" square head (Steel)

1шт.

2

37634DA

THERMOSTAT

165 degrees - 190 degrees (Optional with 33814DA)

1шт.

2

33814DA

THERMOSTAT, 165 degrees - 190 degrees (Optional with 37634DA)

1шт.

2

35032DA

THERMOSTAT, 130 degrees - 155 degrees (Special) (Optional with 37632D)

1шт.

2

37632D

THERMOSTAT

130 degrees - 155 degrees (Special) (Optional with 35032D)

1шт.

3

45984D

GASKET

THERMOSTAT HOUSING GASKET

1шт.

4

8174D

WATER OUTLET ELBOW

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

45986D

GASKET

WATER OUTLET ELBOW GASKET

1шт.

6

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

THERMOSTAT BY-PASS HOSE CLAMP (Will work for 39149H and 91406HA)

2шт.

7

45985D

HOSE

THERMOSTAT BY-PASS HOSE, 1-1/2" I.D. x 2-3/8" - 3 ply

1шт.

8

16131DA

V-BELT,45.76" L

Fan and Water Pump, Will Work for 69490DA 45.76" L

1шт.

9

45981D

GASKET

WATER PUMP BODY GASKET

1шт.

10

6345DAX

IMPELLER

WATER PUMP SHAFT WITH IMPELLER AND THRUST WASHER (Will work for 46051DA)

1шт.

11

45980DA

BODY

WATER PUMP BODY WITH SLEEVE, 45982DXA (Will work for 6346D)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAPSCREW, 7/16 x 1-1/4" N.C. hex head

3шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAPSCREW, 7/16 x 2-1/2" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

12

20303DA

THRUST RING

WATER PUMP SHAFT THRUST BUSHING

1шт.

13

45982DXA

SLEEVE

WATER PUMP SHAFT SLEEVE WITH THRUST BUSHING, 20303DA and bushing, 24017D

1шт.

14

24017D

BEARING

WATER PUMP SHAFT BUSHING

1шт.

15

50790D

PACKING

WATER PUMP PACKING

1шт.

16

6346D

WATER PUMP BODY (Order 45980DA)

1шт.

17

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Water pump shaft bearing lubricator (Optional with 109461) 1/8"-27 x .66 lg

1шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

WATER PUMP BEARING LUBRICATOR (Optional with 138322H)

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

WATER PUMP SHAFT BEARING LUBRICATOR (Optional with 138322H)

1шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Water pump shaft bearing lubricator (Optional with 109461) 1/8"-27 x .66 lg

1шт.

20

20300D

WASHER

WATER PUMP FELT WASHER

1шт.

21

20290D

OIL SEAL

WATER PUMP OIL SEAL, rear

1шт.

22

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

WATER PUMP BEARING

2шт.

23

8023DAX

HUB CAP

FAN AND GENERATOR PULLEY HUB WITH OIL SEAL, 20290D

1шт.

24

2370DBX

FLANGE

FAN AND WATER PUMP PULLEY FLANGE WITH SCREW, 102831 and nut, 114502

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102831

SCREW

SET SCREW, 5/16 x 7/8" N.C. headless (Dog point)

1шт.

25

45993D

SPACER

WATER PUMP BEARING SPACER

1шт.

26

20289D

SEAL

WATER PUMP OIL SEAL, FRONT

1шт.

27

21839DB

GASKET

WATER PUMP BEARING RETAINER GASKET

1шт.

28

20306DX

RETAINER

WATER PUMP BEARING RETINAER WITH OIL SEAL, 20289D

1шт.

29

20293D

SLEEVE

WATER PUMP BEARING LOCK SLEEVE

1шт.

30

20299D

NUT

WATER PUMP BEARING CLAMP NUT

1шт.

31

20296D

GLAND

WATER PUMP PACKING GLAND

1шт.

32

353727R91

FAN

(Not reverse flow fan) (Will work for 20307DX)

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

33

20301D

STUD

WATER PUMP DRIVING STUD

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

G3792

SPRING

WATER PUMP DRIVER SPRING

2шт.

35

20585D

BLOCK DRIVER

WATER PUMP DRIVER

1шт.

36

20586D

PIN

WATER PUMP DRIVER PIN

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

353729R92

FAN AND WATER PUMP, complete (Will work for 54149D)

1шт.

38

256696R91

BLOWER FAN (18" diameter) (Special) (Will work for 68241D)

1шт.

43222VA

PIN

WATER PUMP IMPELLER GROOV PIN, 3/16 x 1/4" (Type no. 1) (S/N

1шт.

FDBKM, Serial Range: 501-948)

1шт.

355140R92

PACKAGE, REPAIR

WATER PUMP SERVICE PACKAGE

1шт.
