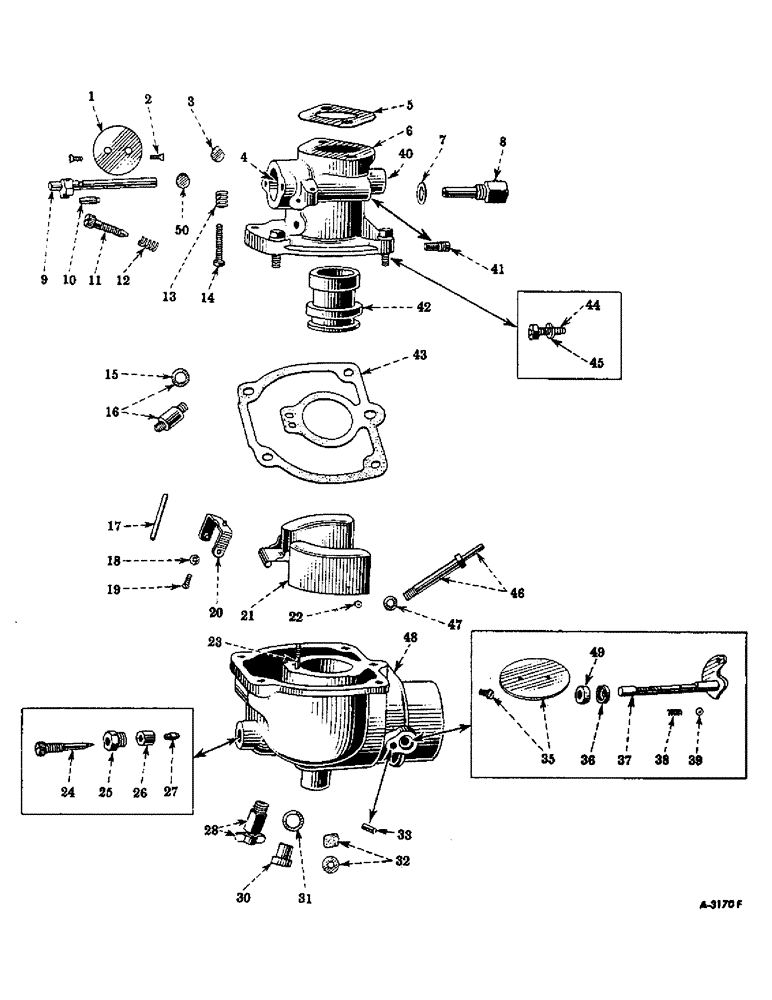

Запчасти Case IH FARMALL MV (035) - CARBURETED ENGINE, CARBURETOR, INTERNATIONAL MODEL E-12, 1-1/4 INCHES UPDRAFT (01) - ENGINE

47387DC

CARBURETOR, complete (Less reference no. 5) (Distillate or kerosene)

1шт.

50983DD

CARBURETOR, complete (Less reference no. 5) (Gasoline)

1шт.

1

47391D

VALVE

THROTTLE BUTTERFLY

1шт.

2

47392D

SCREW

THROTTLE BUTTERFLY SCREW

2шт.

3

24805D

PLUG

THROTTLE BODY EXPANSION PLUG, 3/8"

1шт.

4

49223DA

THROTTLE SHAFT BUSHING (Economizer)

1шт.

5

530681R1

GASKET

CARBURETOR GASKET (Will work for 21632D)(replaces 31336D)

1шт.

6

8867DAX

THROTTLE BODY, complete (Distillate or kerosene) (S/N FBKM 27387 up)

1шт.

6

8867DAX

THROTTLE BODY, complete (Gasoline) (FBKM 31602 up)

1шт.

6

867DAY

THROTTLE BODY, complete (Will work for 6513DX) (Distillate or kerosene) (S/N FBKM, Serial Range: 501-27386)

1шт.

6

8867DAY

THROTTLE BODY, complete (Will work for 6513DX) (Gasoline) (S/N FBKM, Serial Range: 501-31601)

1шт.

7

18377D

GASKET

STRAINER SCREEN RETAINER GASKET

1шт.

8

29902DX

SCREEN

STRAINER SCREEN RETAINER WITH SCREEN

1шт.

9

47389DAX

THROTTLE SHAFT WITH STOP AND PIN (Distillate or kerosene) (S/N FBKM, Serial Range: 501-27386)

1шт.

9

47389DAX

THROTTLE SHAFT WITH STOP AND PIN (Gasoline) (S/N FBKM, Serial Range: 501-31601)

1шт.

9

54488DAX

SHAFT

THROTTLE SHAFT WITH STOP AND PIN (Distillate or kerosene) (S/N FBKM 27387 up)

1шт.

9

54488DAX

SHAFT

THROTTLE SHAFT WITH STOP AND PIN (Gasoline) (S/N FBKM 31602 up)

1шт.

10

45110D

PIN

THROTTLE STOP PIN

1шт.

11

24689D

ADJUSTMENT SCREW

IDLE ADJUSTING SCREW

1шт.

12

24685D

SPRING

IDLE ADJUSTMENT RETAINER SPRING

1шт.

13

25484D

SPRING

IDLE THROTTLE ADJUSTING RETAINER

1шт.

14

186566

SCREW,Sltd Fil Hd, #10-32 x 1 1/8"

no. 10-32 x 1-1/8" fillister head (Cadmium plated)

1шт.

15

25948D

GASKET

NEEDLE VALVE CAGE GASKET

1шт.

16

47396DAX40

NEEDLE

VALVE CAGE WITH VALVE AND GASKET, 25948D(replaces 47396DX45)

1шт.

17

47395D

PIVOT

FLOAT LEVER PIVOT

1шт.

18

131043

LOCK WASHER,#4

Washer, Lock, , Follows Ref #20 #4

1шт.

19

86982776

SCREW,Rd, #4 - 40 x 5/16"

FOLLOWS REFERENCE NO. 20

1шт.

20

47394D

SUPPORT

FLOAT LEVER PIVOT SUPPORT

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

no. 4 - 40 x 5/16" round head (Cadmium plated)

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

21

47398DX

FLOAT

AND LEVER

1шт.

22

35606D54

MAIN AIR BLEED (Distillate or kerosene)

1шт.

22

56647D

MAIN AIR BLEED (Gasoline)

1шт.

22

361093R1

MAIN AIR BLEED (Gasoline) (For power improvement packages, 357798R92, 357805R92 and 357806R92)

1шт.

22

374484R1

MAIN AIR BLEED (Gasoline) (For "Fire crater increased power package")

1шт.

23

49798D72

JET

IDLE METERING JET

1шт.

23

49798D75

JET

IDLE METERING JET (For "Fire crater increased power package")

1шт.

24

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

FUEL ADJUSTING SCREW

1шт.

24

374327R1

ADJUSTMENT SCREW,Sl Str Knurled Hd, 1/4" - 32 x 1.54", SST

FUEL ADJUSTING SCREW (For "Fire crater increased powe package")

1шт.

25

24687DA

NUT,7/16" - 32 NPT

FUEL ADJUSTING SCREW PACKING NUT

1шт.

26

24703DA

PACKING

FUEL ADJUSTING SCREW PACKING (Optional with 67266DX)

1шт.

26

67266DX

PACKING

FUEL ADJUSTING SCREW PACKING (Optional with 24703DA)

1шт.

27

45141DA53

FUEL ADJUSTING SCREW SEAT (Distillate or kerosene)

1шт.

27

56646D

FUEL ADJUSTING SCREW SEAT, 0545 (Gasoline)

1шт.

27

355003R1

VENT

FUEL ADJUSTING SCREW SEAT (Gasoline) (For power improvement packages, 357798R92, 357805R92 and 357806R92) (Will work for 357796R1)

1шт.

27

374482R1

FUEL ADJUSTING SCREW SEAT (Gasoline) (For "Fire crater increased power package")

1шт.

28

134519

VALVE

DRAIN COCK (Optional with 26407D) (Distillate or kerosene)

1шт.

28

26407D

VALVE

DRAIN COCK (Optional with 134519) (Distillate or kerosene)

1шт.

30

47402D

NUT

METERING NOZZLE CLAMP NUT

1шт.

31

32615D

GASKET

METERING NOZZLE CLAMP NUT GASKET

1шт.

32

60947D

PLUG

DRIP HOLE FILLER REPLACEMENT PACKAGE, (Will work for 27445DAX, DB, 39826D, 27444D and 57957D)

1шт.

33

142484

HANDLE

GROOV PIN, 1/8 x 1/2" (Type no. 1) (In fuel bowl) (Same as 46185D) (Optional with 351588R1)

1шт.

33

351588R1

PIN

GROOV PIN, 1/8 x 1/2" (Type no. 1) (Optional with 142484)

1шт.

35

47406DAX

STARTING SHUTTER WITH SCREW, 131894 (Order 352637R91) (S/N FBKM, Serial Range: 501-173266)

1шт.

86982773

SCREW,Slotted Fil Hd, #6-32 x 7/16"

no. 6-32 x 7/16" (Fillister head)

1шт.

35

352634R11

SHUTTER

STARTING SHUTTER WITH 2 SCREWS, 132688 and 2 lockwashers, 131044 (S/N FBKM 173267 up)

2шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6-32 x 1/2" (Round head)

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

36

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

DUST SEAL RETAINER

1шт.

37

352637R91

SHUTTER

STARTING SHUTTER SHAFT AND LEVER, 352642R91 with shutter, 352634R11 (Will work for 47405DXA and 47406DAX) (S/N FBKM, Serial Range: 501-173266)

1шт.

37

352642R91

LEVER

STARTING SHUTTER SHAFT AND LEVER (S/N FBKM 173267 up)

1шт.

38

46059D

SPRING

STARTING LEVER FRICTION SPRING

1шт.

39

52791R1

BALL,3/16" Dia, Stainless

FRICTION SPRING BALL 3/16" diameter

1шт.

40

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

THROTTLE SHAFT BUSHING

1шт.

41

24693D

IDLE OUTLET PLUG

1шт.

42

47407D27

MAKING-UP

VENTURI (Optional with 64987D27)

1шт.

42

64987D27

VENTURI (Optional with 47407D27)

1шт.

43

47388DA

GASKET

FUEL BOWL GASKET

1шт.

44

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

FOLLOWS REFERENCE NO. 48

1шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Follows ref #48 1/4"

1шт.

46

47400DAX

METERING NOZZLE WITH TIP (Distillate or kerosene)

1шт.

46

56645DX

NOZZLE INJECTION

METERING NOZZLE WITH TIP (Gasoline)

1шт.

46

361091R11

METERING NOZZLE WITH TIP (Gasoline) (For power improvement packages, 357798R92, 357805R92, and 357806R92) (Will work for 356998R11)

1шт.

46

374485R11

NOZZLE INJECTION

METERING NOZZLE WITH TIP (Gasoline) (For "Fire crater increased power package)

1шт.

47

47401D

GASKET

METERING NOZZLE GASKET

1шт.

48

6514DBX

FUEL BOWL, complete (Distillate or kerosene)

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

CAP SCREW, 1/4 x 7/8" N.C. hex head (Cadmium plated)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

48

8731DAX

FUEL BOWL, complete (Gasoline)

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

CAP SCREW, 1/4 x 7/8" N.C. hex head (Cadmium plated)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

117243

BOTTOM

PIPE PLUG, 1/8" square head (Cadmium plated)

1шт.

49

45149DA

SEAL

BUTTERFLY DUST SEAL

1шт.

50

57956D

PLUG

THROTTLE SHAFT EXPANSION PLUG, 7/16"

1шт.

32611D

THROTTLE BODY PASSAGE PLUG (For power improvement packages, 357798R92, 357805R92, and 357806R92)

1шт.

38525D

CARBURETOR NUMBER PLATE BLANK DRIVE SCREW (Parker-Kalon no. 0 x 3/16", type "U")

1шт.

47393D

THROTTLE BODY PASSAGE PLUG (For power improvement packages, 357798R92, 357805R92 and 357806R92)

1шт.

354453R92

KIT

CARBURETOR OVERHAUL PACKAGE (For carburetor 47387DB, DC, and 50983DC)

1шт.

361094R91

CARBURETOR CHANGE-OVER KIT, complete (For power improvement packages)

1шт.
