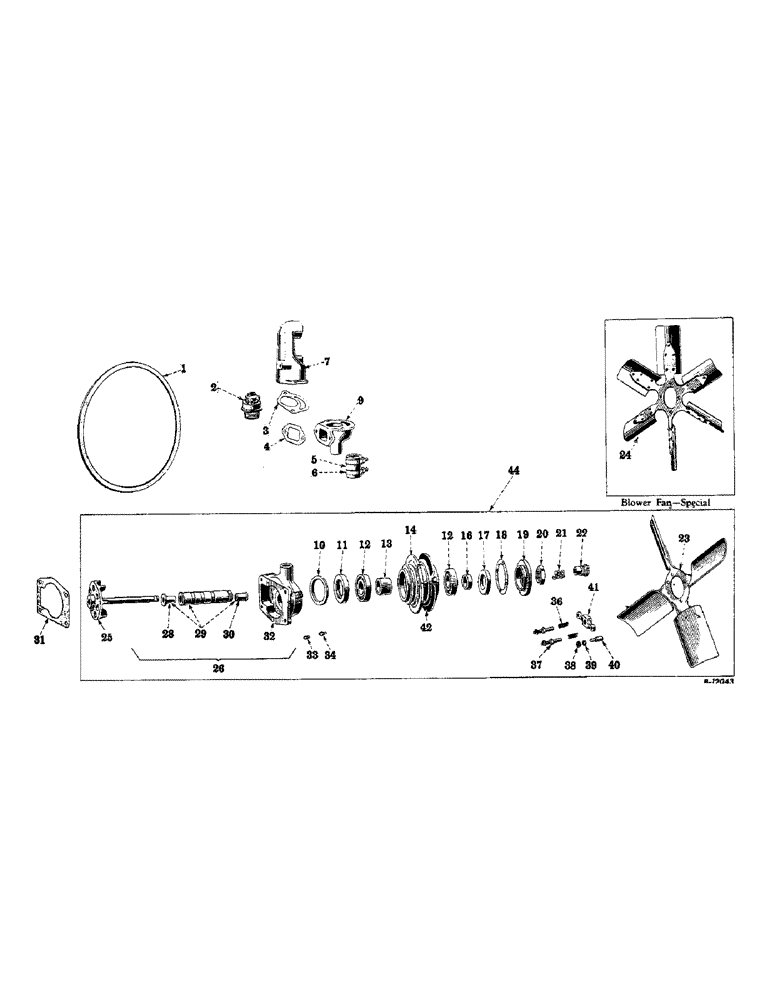

Запчасти Case IH FARMALL MV (027) - CARBURETED ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

1

16131DA

V-BELT,45.76" L

Fan, Regular Duty, Will work for 69490DA 45.76" L

1шт.

1

277448R1

BELT,0.91" W

Fan (Cog-type) (Heavy-duty)

1шт.

2

33814DB

THERMOSTAT

165 degrees -190 degrees (Will work for 35033D, 37633D) (Optional with 37634DA)

1шт.

2

37634DA

THERMOSTAT

165 degrees - 190 degrees (Optional with 33814DB)

1шт.

2

35032DB

THERMOSTAT

130 degrees - 155 degrees (Optional with 37632D) (For tractors equipped with conventional type radiator only)

1шт.

2

37632D

THERMOSTAT

130 degrees - 155 degrees (Optional with 35032DB) (For tractors equipped with conventional type radiator only)

1шт.

3

45984D

GASKET

THERMOSTAT HOUSING GASKET

1шт.

4

45986D

GASKET

WATER OUTLET ELBOW GASKET

1шт.

5

45985D

HOSE

WATER PUMP BY-PASS HOSE, 1-1/2" I.D. x 2-3/8" - 3 ply

1шт.

6

357870R91

CLAMP

WATER PUMP BY-PASS HOSE CLAMP, (Will work for 39149H and 91406HA)

2шт.

7

6763DB

THERMOSTAT HOUSING

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

6344D

WATER OUTLET ELBOW

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

20300D

WASHER

WATER PUMP FELT WASHER

1шт.

11

20290D

OIL SEAL

WATER PUMP OIL SEAL, rear

1шт.

12

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

WATER PUMP BEARING

2шт.

13

45993D

SPACER

WATER PUMP BEARING SPACER

1шт.

14

8023DAX

HUB CAP

FAN AND GENERATOR PULLEY HUB WITH OIL SEAL, 20290D (Will work for 2369DX)

1шт.

16

20293D

SLEEVE

WATER PUMP BEARING LOCK SLEEVE

1шт.

17

20289D

SEAL

WATER PUMP OIL SEAL, front

1шт.

18

21839DB

GASKET

WATER PUMP BEARING RETAINER GASKET

1шт.

19

20306DX

RETAINER

WATER PUMP BEARING RETAINER WITH OIL SEAL, 20289D

1шт.

20

20299D

NUT

WATER PUMP BEARING CLAMP NUT

1шт.

21

50790D

PACKING

WATER PUMP PACKING

1шт.

22

20296D

GLAND

WATER PUMP PACKING GLAND

1шт.

23

353727R92

BLADE

FAN (Will work for 20307DX)

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

256696R91

BLOWER FAN (Special) (Will work for 68241D)

1шт.

25

6345DAX

IMPELLER

WATER PUMP IMPELLER WITH SHAFT AND THRUST WASHER (Will work for 46051DA)

1шт.

26

45980DA

BODY

WATER PUMP BODY, with sleeve, 45982DXA (Will work for 6346D)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4 N.C. hex head

3шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAP SCREW, 7/16 x 2-1/2 N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

28

20303DA

THRUST RING

WATER PUMP THRUST BUSHING

1шт.

29

45982DXA

SLEEVE

WATER PUMP SLEEVE WITH BUSHINGS, 20303DA and 24017D

1шт.

30

24017D

BEARING

WATER PUMP SHAFT BUSHING

1шт.

31

45981D

GASKET

WATER PUMP BODY GASKET

1шт.

32

6346D

WATER PUMP BODY (Order 45980DA)

1шт.

33

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Water pump bearing lubricator (Optional with 109461) 1/8"-27 x .66 lg

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

WATER PUMP BEARING LUBRICATOR (Optional with 138322H)

1шт.

34

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Water pump shaft lubricator (Optional with 109461) 1/8"-27 x .66 lg

1шт.

36

G3792

SPRING

WATER PUMP DRIVE SPRING

2шт.

37

20301D

STUD

WATER PUMP DRIVING STUDS

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

425-115

NUT,5/16"-24, G5

FOLLOWS REFERENCE NO. 40

1шт.

39

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Follows ref #40 5/16"

1шт.

40

20586D

PIN

WATER PUMP DRIVER PIN

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

41

20585D

BLOCK DRIVER

WATER PUMP DRIVER

1шт.

42

2370DBX

FLANGE

FAN AND WATER PUMP PULLEY FLANGE, complete with screw, 102831 and nut, 114502

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102831

SCREW

SET SCREW, 5/16 x 7/8" N.C. headless (Dog point)

1шт.

44

353729R92

FAN AND WATER PUMP, complete (Will work for 50241D and 54149D)

1шт.

355140R92

PACKAGE, REPAIR

WATER PUMP SERVICE PACKAGE

1шт.
