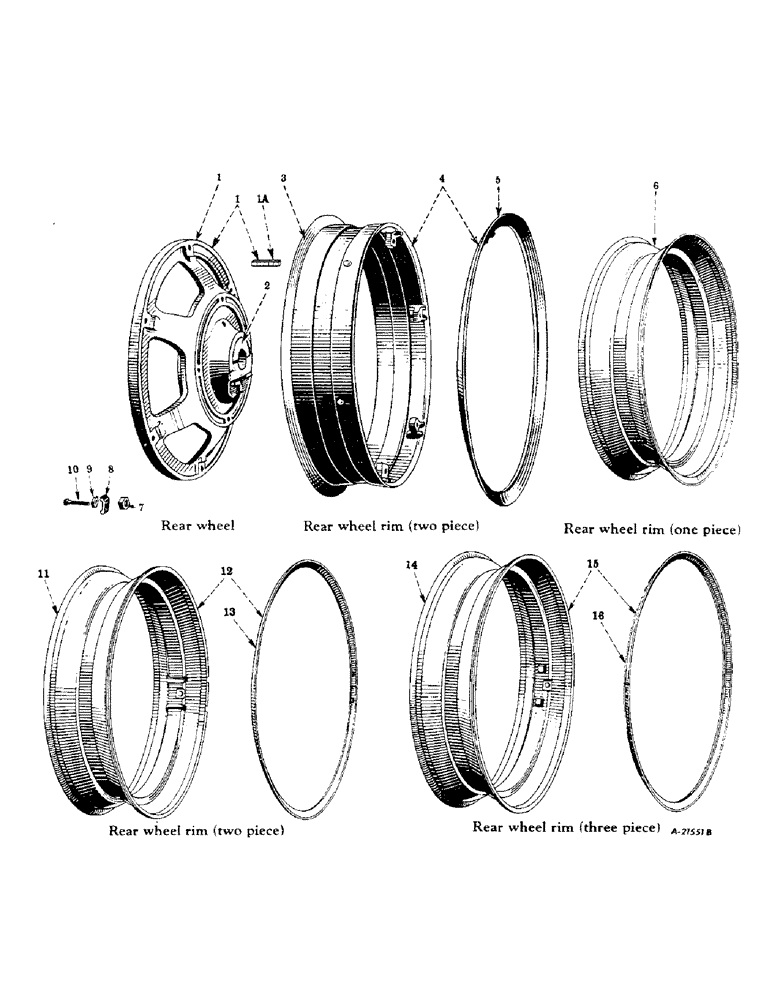

Запчасти Case IH FARMALL MV (245) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, "MV" AND "MDV" (12) - CHASSIS

1

6325DF

REAR WHEEL (Order 351557R91) (S/N FBKV, Serial Range: 501-115779)

2шт.

1

351553R1

REAR WHEEL (Order 355447R92) (S/N FBKV, Serial Range: 115780-238387)

2шт.

1

355439R2

REAR WHEEL (Order 365344R1) (S/N FBKV 238388 up)

2шт.

13454R1

MACHINE BOLT, 5/8 x 3-1/2" N.C.

12шт.

351832R1

NUT

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

1

365344R91

REAR WHEEL, 365345R11, w/two clamps, 355440R2, two screws, 271686 and four washers, PO12898 (Will work for 6325DF and 355439R2)

1шт.

1

365345R11

REAR WHEEL, with key 363015R2

2шт.

1a

363015R3

KEY

REAR WHEEL DRIVE KEY (Used on wheel 365345R11)(replaces 363014R2)

2шт.

REF#1A SHOULD READ 363015R3 8/9/96

1шт.

2

6326DC

CLAMP

REAR WHEEL HUB CLAMP (Used on wheel, 6325DF) (S/N FBKV, Serial Range: 501-115779)

2шт.

179961

CAP SCREW, 3/4 x 4-1/4" N.C. hex head

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

STEEL WASHER, 25/32" I.D. x 1-1/4" O.D. x no. 14 ga.

8шт.

2

351554R1

REAR WHEEL HUB CLAMP (S/N FBKV, Serial Range: 115780-238387)

2шт.

179982

SHAFT

CAP SCREW, 7/8 x 4-1/4" N.C. hex head

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

8шт.

103347

WASHER

STEEL WASHER, 15/16" I.D. x 1-3/4" O.D. x 11 ga. (Order PO12898)

8шт.

2

355440R2

CLAMP

REAR WHEEL HUB CLAMP (S/N FBKV 238388 up)

4шт.

14-1464

BOLT,Hex, 7/8" - 14 x 4", Gr 5

CAP SCREW, 7/8 x 4" hex head

8шт.

3

350561R91

REAR WHEEL RIM BASE (Used with rim, 65168D)

2шт.

PO12898

WASHER

STEEL WASHER, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga. (Will work for 103347)

8шт.

4

65168D

REAR WHEEL RIM (2-piece Goodyear) (Consisting of base, 350561R91 and ring, 38921D) 8.00 x 36 10.00 x 36 (S/N, Serial Range: 501-130578)

2шт.

5

38921D

REAR WHEEL RIM SIDE RING (Used with rim, 65168D)

2шт.

6

55564D

REAR WHEEL RIM (1 piece) DW11-38 12-38 13-38 (S/N FBKV 115780 up)

2шт.

7

351832R1

NUT

REAR WHEEL RIM MOUNTING NUT

12шт.

8

48984D

CLAMP

REAR WHEEL RIM CLAMP (Used with all rims, except 65168D)

24шт.

9

351833R1

NUT

REAR WHEEL RIM MOUNTING JAM NUT

12шт.

10

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

REAR WHEEL RIM CLAMP BOLT (Used with clamp, 48984D)

12шт.

11

45866D

REAR WHEEL RIM BASE (Used with rim, 45865D)

2шт.

12

45865D

REAR WHEEL RIM (2-piece Goodyear) (Consisting of base, 45866D and side ring, 38921D) (Optional with 45867D)

2шт.

13

38921D

REAR WHEEL RIM SIDE RING (Used with rim, 45865D)

2шт.

14

45868D

REAR WHEEL RIM BASE (Used with rim, 45867R)

2шт.

15

45867D

REAR WHEEL RIM (3-piece Firestone) (Consisting of base, 45868D and rim side and locking ring, 37656D) (Optional with 45865D)

2шт.

16

37656D

REAR WHEEL RIM SIDE RING WITH LOCKING RING (Used with rim, 45867D)

2шт.

355022R94

(1-12 or 1-15) REAR WHEEL AND RIM, complete 8.00T x 36 12 x 36 13-36

2шт.

1-6

355028R94

REAR WHEEL AND RIM, complete DW11-38 12-38 13-38

2шт.

351557R91

REAR WHEEL WITH CLAMP, 351554R1, complete (Will work for 6325DE) (Order 355447R91) (S/N FBKV, Serial Range: 501-115779)

2шт.

351864R92

REAR WHEEL RIM WITH CLAMP (1-piece Goodyear) 8.00T x 36 12-36 13-36

2шт.

13454R1

MACHINE BOLT, 5/8 x 3-1/2" N.C. square head

12шт.

352832R1

HEX NUT, 5/8" N.C.

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

355031R95

REAR WHEEL AND RIM, complete 8.00T x 36 12-36 13-36

1шт.

365344R91

REAR WHEEL WITH 2 CLAMPS, 355440R2 AND TWO SCREWS, 271686, FOUR WASHERS, PO12898 (Will work for 6325DF, 351553R1, 351557R91 and 355439R2)

1шт.
