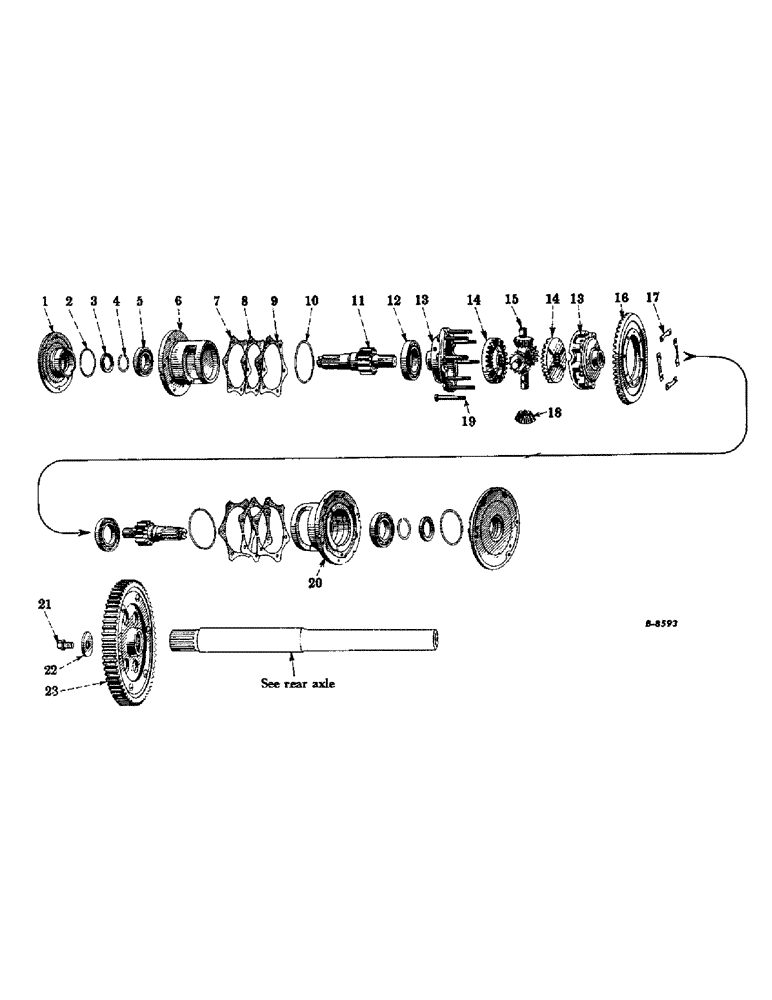

Запчасти Case IH FARMALL MV (229) - CHASSIS, REAR AXLE DIFFERENTIAL (12) - CHASSIS

1

357036R11

BULL PINION SHAFT BEARING RETAINER WITH OIL SEAL, 357037R91 AND RING, 254693R1

2шт.

2

254693R1

O-RING,0.21" Thk x 4.475" ID, -349, Cl 5, 75 Duro

BULL PINION SHAFT BEARING RETAINER SEAL RING

2шт.

3

70634037

SEAL,73.03mm ID x 95.4mm OD x 11mm Thk

BULL PINION SHAFT OIL SEAL

2шт.

4

357035R1

RING

BULL PINION AND BRAKE SHAFT SNAP RING

2шт.

5

ST218A

BALL BEARING,65mm ID x 120mm OD x 23mm W

BULL PINION AND BRAKE SHAFT BALL BEARING

2шт.

L-265 MODEL

1шт.

5

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

BULL PINION AND BRAKE SHAFT BALL BEARING

2шт.

L-260 MODEL

1шт.

6

357032R11

BULL PINION SHAFT BEARING CAGE WITH RING, 10481C or 69366D, L.H.

1шт.

357034R1

BOLT

BULL PINION SHAFT BEARING CAGE CAP SCREW

6шт.

7

357366R1

BULL PINION SHAFT BEARING CAGE SHIM, light

4шт.

8

357367R1

SHIM

BULL PINION SHAFT BEARING CAGE SHIM, medium

1шт.

9

357368R1

SHIM

BULL PINION SHAFT BEARING CAGE SHIM, heavy

1шт.

10

10481C

RING,0.23" Thk x 5-23/32" ID

BULL PINION SHAFT BEARING CAGE SEAL RING (Optional with 69366D)

2шт.

10

69366D

SEAL,0.23" Thk x 5-23/32" ID

BULL PINION SHAFT BEARING CAGE SEAL RING (Optional with 10481C)

2шт.

11

357031R1

BULL AND BRAKE SHAFT PINION

2шт.

12

ST283

DIFFERENTIAL BALL BEARING

2шт.

13

357029R11

DIFFERENTIAL CASE (2 halves) L.H. and R.H.

1шт.

14

45074DB

DIFFERNETIAL BEVEL GEAR (26 teeth)

2шт.

15

45080DA

DIFFERENTIAL SPIDER

1шт.

16

48775D

DRIVE BEVEL GEAR (50 teeth)

1шт.

17

49577

DIFFERENTIAL CASE BOLT LOCK PLATE

4шт.

18

48774DA

DIFFERENTIAL BEVEL PINION (14 teeth)

4шт.

19

55972DA

BOLT,1/2" - 20 x 4 1/2"

DIFFERENTAIL CASE BOLT

8шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2" N.F.

8шт.

20

357033R11

BULL PINION SHAFT BEARING CAGE WITH RING, 10481C or 69336D, R.H.

1шт.

357034R1

BOLT

BULL PINION SHAFT BEARING CAGE CAP SCREW

6шт.

21

181507

CAP SCREW, 3/4 x 1-3/4" N.F. hex head

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

49793D

WASHER

BULL GEAR RETAINER WASHER

2шт.

23

351790R11

BULL GEAR WITH EIGHT RIVETS, 104133 (73 teeth) (Optional with 357461R91)

2шт.

104133

RIVET, 1/2 x 1-3/4" round head

16шт.

23

357461R91

BULL GEAR WITH EIGHT RIVETS, 104133 (73 teeth) (Optional with 351790R11)

2шт.
