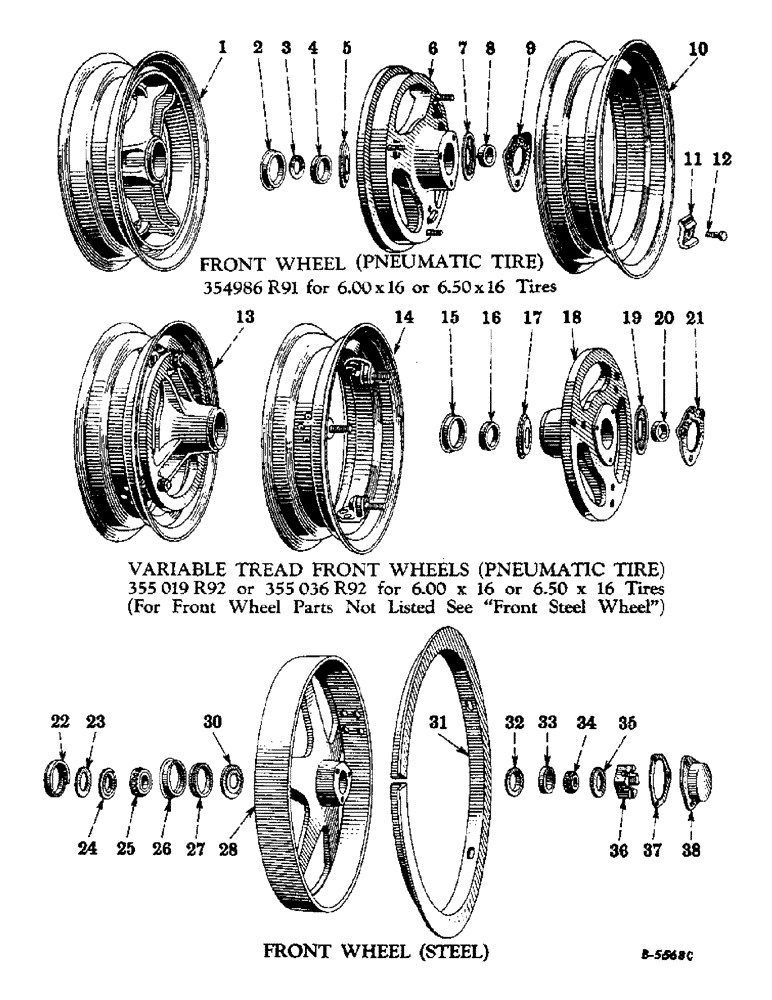

Запчасти Case IH FARMALL MV (207) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, "M" AND "MD" (12) - CHASSIS

367773R91

FRONT WHEEL AND RIM PARTS ACCESSORY (Used without adjustable wide thread front axle attachment, 360400R92, when applied on tractors previously equipped with single front wheel attachment)

1шт.

1

354986R92

FRONT WHEEL, complete (With bearing cups and 4.25 - 16 DC rim) (Will work for 49228DB) (Note A)

2шт.

2

48703D

RETAINER

FRONT WHEEL FELT WASHER RETAINER (Used with wheel, 6803DFXB)

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

FRONT WHEEL FELT WASHER (Not used with triple lip design oil seal, 48704DA)

2шт.

4

ST882

CUP

FRONT WHEEL INNER ROLLER BEARING CUP (Used with wheel, 6803 DFXB)

2шт.

4

13822V

BEARING

FRONT WHEEL INNER BEARING CUP (Used with wheel, 6762 DFXA)

2шт.

5

60290DA

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, inner (S/N FBK 60060 up)

2шт.

5

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

FRONT WHEEL BEARING GREASE RETAINER, inner (Used with wheel, 6762DFXA)

2шт.

6

6762DFXA

FRONT WHEEL, complete (Adjustable wide tread front axle attachment)

2шт.

6

6803DFXB

WHEEL

FRONT WHEEL, complete (Note A)

2шт.

6

355018R92

FRONT WHEEL, 6762DFXA with rim, 354244R91 (Adjustable wide tread front axle attachment)

2шт.

7

60291D

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, outer (Used with wheel, 6803DFXB) (S/N FBK 60061 up)

2шт.

7

60289DA

FRONT WHEEL BEARING GREASSE RETAINER, outer (Used with wheel, 6762DFXA)

2шт.

8

13417D

BEARING, CUP,56.92mm OD x 16mm W

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 6762DFXA)

2шт.

8

ST869

CUP ASSY.

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 6803DFXA)

2шт.

8

456200R1

CUP

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 6803DFXB)

2шт.

9

48547D

GASKET

FRONT WHEEL HUB CAP GASKET

2шт.

10

354223R1

WHEEL

FRONT WHEEL RIM (4.25 KA - 16 DC) (Will work for 45406D) (S/N, Serial Range: 501-146375)

2шт.

10

354244R91

RIM

FRONT WHEEL RIM (4.25 KA - 16 DC) (Will work for 351509R92) (S/N 146376 up)

2шт.

11

48976DA

CLAMP

FRONT WHEEL RIM CLAMP

6шт.

13399R1

BOLT

MACHINE BOLT, 1/2 x 2-3/4" N.C. square head (Order 351510R2)

6шт.

114774

HEX NUT, 1/2" N.C.

6шт.

12

351510R2

BOLT

FRONT WHEEL RIM CLAMP BOLT (Will work for 13399R1)

6шт.

125653

NUT,1/2"-20, G5, Thk

HEX NUT, 1/2" N.F. (Cadmium plated)

6шт.

13

355019R92

FRONT WHEEL HUB AND RIM, complete (Variable tread) (Adjustable wide tread front axle attachment), adjustable tread front wheels - special "M" and "MD"

2шт.

13

355036R93

FRONT WHEEL HUB AND RIM, complete (Same as 52697DB) (Variable tread) (Note A), adjustable tread front wheels - special "M" and "MD"

2шт.

14

52635D

FRONT WHEEL RIM (4.00 E - 16) (Order 65220DA) (S/N FBK 501 to 66901), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N also 68031 to 69071), adjustable tread front wheels - special "M" and "MD"

2шт.

181779

CAP SCREW, 5/8 x 2-1/2" N.F. hex head (Cadmium plated) (S/N FBK 501 to 287002), adjustable tread front wheels - special "M" and "MD"

6шт.

181784

CAP SCREW, 5/8 x 3" N.F. hex head (Cadmium plated) (S/N FBK 287003 up), adjustable tread front wheels - special "M" and "MD"

6шт.

(S/N FDBK 283861 up), adjustable tread front wheels - special "M" and "MD"

6шт.

352777

FRONT WHEEL RIM MOUNTING NUT, adjustable tread front wheels - special "M" and "MD"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Adjustable tread front wheels - special "M" and "MD" 5/8"

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32" I.D. x 1-5/16" O.D. x no. 13 ga., adjustable tread front wheels - special "M" and "MD"

6шт.

14

65220DA

FRONT WHEEL RIM (4.25 KA - 16 DC) (Will work for 52635D) (S/N FBK 501 to 66901), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N also 68031 to 69071), adjustable tread front wheels - special "M" and "MD"

2шт.

14

52635DA

RIM

FRONT WHEEL RIM (4.00 E -16) (Order 354246R91) (S/N FBK 66902 to 68030), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N also 69072 up), adjustable tread front wheels - special "M" and "MD"

2шт.

14

354246R91

RIM

FRONT WHEEL RIM (4.25 KA - 16 DC) (Will work for 52635DA) (S/N FBK 66902 to 68030), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N also 69072 up), adjustable tread front wheels - special "M" and "MD"

2шт.

181779

CAP SCREW, 5/8 x 2-1/2" N.F. hex head (Cadmium plated) (S/N FBK 501 to 287002), adjustable tread front wheels - special "M" and "MD"ø

6шт.

181784

CAP SCREW, 5/8 x 3" N.F. hex head (Cadmium plated) (S/N FBK 287003 up), adjustable tread front wheels - special "M" and "MD"ø

6шт.

(S/N FDBK 283861 up), adjustable tread front wheels - special "M" and "MD"

6шт.

352777R1

NUT

FRONT WHEEL RIM MOUNTING NUT, adjustable tread front wheels - special "M" and "MD"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Adjustable tread front wheels - special "M" and "MD" 5/8"

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" I.D. x 1-5/16" O.D. x no. 13 ga.(replaces 131016), adjustable tread front wheels - special "M" and "MD"

6шт.

REF#14-131016 SHOULD READ 103345 8/9/96

1шт.

15

48703D

RETAINER

FRONT WHEEL FELT WASHER RETAINER, adjustable tread front wheels - special "M" and "MD"

2шт.

16

ST882

CUP

FRONT WHEEL INNER ROLLER BEARING CUP, adjustable tread front wheels - special "M" and "MD"

2шт.

17

60290DA

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, inner (S/N FBK 60060 up), adjustable tread front wheels - special "M" and "MD"

2шт.

17

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

FRONT WHEEL BEARING GREASE RETAINER, inner (Used with wheel, 6694DCXA and 8274DBX), adjustable tread front wheels - special "M" and "MD"

2шт.

17

60289D

WASHER

FRONT WHEEL BEARING GREASE RETAINER, outer (Used with wheel, 6694DCXA and 8274DBX), adjustable tread front wheels - special "M" and "MD"

2шт.

18

8274DBX

FRONT WHEEL HUB, complete (Variable tread) (Adjustable wide tread front axle attachment), adjustable tread front wheels - special "M" and "MD"

2шт.

18

8284DBXA

FRONT WHEEL HUB, complete (Variable tread) (Note A), adjustable tread front wheels - special "M" and "MD"

2шт.

19

60291D

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, outer (S/N FBK 60060 up), adjustable tread front wheels - special "M" and "MD"

2шт.

20

ST869

CUP ASSY.

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 8284DBX), adjustable tread front wheels - special "M" and "MD"

2шт.

20

456200R1

CUP

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 8284DBXA), adjustable tread front wheels - special "M" and "MD"

2шт.

21

48547D

GASKET

FRONT WHEEL HUB CAP GASKET, adjustable tread front wheels - special "M" and "MD"

2шт.

22

48701D

SHIELD

FRONT WHEEL DUST SHIELD, adjustable tread front wheels - special "M" and "MD"

2шт.

23

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

FRONT WHEEL FELT WASHER (Not used with triple lip design oil seal 48704DA), adjustable tread front wheels - special "M" and "MD"

2шт.

24

48704DA

OIL SEAL

FRONT WHEEL OIL SEAL, adjustable tread front wheels - special "M" and "MD"

2шт.

25

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

FRONT WHEEL INNER BEARING CONE, adjustable tread front wheels - special "M" and "MD"

2шт.

26

48548D

WASHER

FRONT WHEEL FELT WASHER RETAINER (Used with wheel, 6694DCXA and 8274DBXA), adjustable tread front wheels - special "M" and "MD"

2шт.

26

48703D

RETAINER

FRONT WHEEL FELT WASHER RETAINER (Used with wheel, 6738DCXB), adjustable tread front wheels - special "M" and "MD"

2шт.

27

13822V

BEARING

FRONT WHEEL INNER BEARING CUP (Used with wheel, 6694DCXA and 8274DBXA), adjustable tread front wheels - special "M" and "MD"

2шт.

27

ST882

CUP

FRONT WHEEL INNER BEARING CUP (Used with wheel, 6738DCXB), adjustable tread front wheels - special "M" and "MD"

2шт.

28

6738DCXB

FRONT WHEEL, less skid ring, complete (Note A), adjustable tread front wheels - special "M" and "MD"

2шт.

28

6738DCYB

FRONT WHEEL, 6738DCXB with skid ring, 48565DA, complete (Note A), adjustable tread front wheels - special "M" and "MD"

2шт.

28

6694DCXA

FRONT WHEEL LESS SKID RING (Adjustable wide tread front axle attachment), adjustable tread front wheels - special "M" and "MD"

2шт.

28

6694DCYA

FRONT WHEEL, 6694DCXA with skid ring, 48565DA, complete, adjustable tread front wheels - special "M" and "MD"

2шт.

28

354134R91

STEEL FRONT WHEEL ATTACHMENT (Consists of two 6694DCXA front wheels) (Adjustable wide tread front axle attachment), adjustable tread front wheels - special "M" and "MD"

1шт.

30

60290DA

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, inner (S/N FBK 60060 up), adjustable tread front wheels - special "M" and "MD"

2шт.

31

48565DA

FRONT WHEEL SKID RING, 2" high (Standard), adjustable tread front wheels - special "M" and "MD"

2шт.

31

53014DA

FRONT WHEEL SKID RING, 2-1/2" high (Special) (Optional with 67893DA), adjustable tread front wheels - special "M" and "MD"

2шт.

31

67893DA

FRONT WHEEL SKID RING, 2-1/2" high (Special) (Optional with 53014DA), adjustable tread front wheels - special "M" and "MD"

2шт.

13293R1

BOLT

MACHINE BOLT, 1/2 x 1-1/2" N.C. square head, adjustable tread front wheels - special "M" and "MD"

12шт.

102637

NUT,1/2"-13, G5

Adjustable tread front wheels - special "M" and "MD" 1/2"-13, G5

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Adjustable tread front wheels - special "M" and "MD" 1/2"

12шт.

32

60291D

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, outer (S/N FBK 60060 up), adjustable tread front wheels - special "M" and "MD"

2шт.

33

ST869

CUP ASSY.

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 6738DCXA and 8274DBX), adjustable tread front wheels - special "M" and "MD"

2шт.

33

13417D

BEARING, CUP,56.92mm OD x 16mm W

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 6694DCXA), adjustable tread front wheels - special "M" and "MD"

2шт.

33

456200R1

CUP

FRONT WHEEL OUTER BEARING CUP (Used with wheel, 6738DCXB, 6803DFXB and 8274DBXA), adjustable tread front wheels - special "M" and "MD"

2шт.

34

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

FRONT WHEEL OUTER BEARING CONE (Used with wheel, 6738DCXA and 8274DBX), adjustable tread front wheels - special "M" and "MD"

2шт.

34

365433R91

BEARING

FRONT WHEEL OUTER BEARING CONE (Used with wheel, 6738DCXB, 6803DFXB and 8274DBXA), adjustable tread front wheels - special "M" and "MD"

2шт.

35

353838R1

WASHER

FRONT WHEEL OUTER BEARING RETAINER WASHER (S/N FBK 212444 up), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N FDBK 206888 UP), adjustable tread front wheels - special "M" and "MD"

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Adjustable tread front wheels - special "M" and "MD" 5/32" x 1 3/8"

2шт.

36

6245D

NUT

FRONT WHEEL OUTER BEARING RETAINER NUT (Order nut, 427642 and washer, 353838R1) (S/N FBK 501 to 212443), adjustable tread front wheels - special "M" and "MD"

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

CAP SCREW, 3/8 x 1-1/2" N.C. hex head, adjustable tread front wheels - special "M" and "MD"

2шт.

280136

NUT,3/8"-16, G8

Adjustable tread front wheels - special "M" and "MD" 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Adjustable tread front wheels - special "M" and "MD" 3/8"

2шт.

36

427642

SLOTTED NUT,7/8"-9, G5

SLOTTED HEX NUT, 7/8" N.C. (with washer, 353838R1 will work for 6245D) (S/N FBK 501 to 212443), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N FDBK 501 to 206887), adjustable tread front wheels - special "M" and "MD"

2шт.

36

361138R1

NUT

SLOTTED HEX NUT, 7/8" N.F. (S/N FBK 212444 up), adjustable tread front wheels - special "M" and "MD"

2шт.

(S/N FDBK 206888 up), adjustable tread front wheels - special "M" and "MD"

2шт.

37

48547D

GASKET

FRONT WHEEL HUB CAP GASKET, adjustable tread front wheels - special "M" and "MD"

2шт.

38

48546DB

CAP

FRONT WHEEL HUB CAP, adjustable tread front wheels - special "M" and "MD"

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Adjustable tread front wheels - special "M" and "MD" Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Adjustable tread front wheels - special "M" and "MD" 5/16"

6шт.
