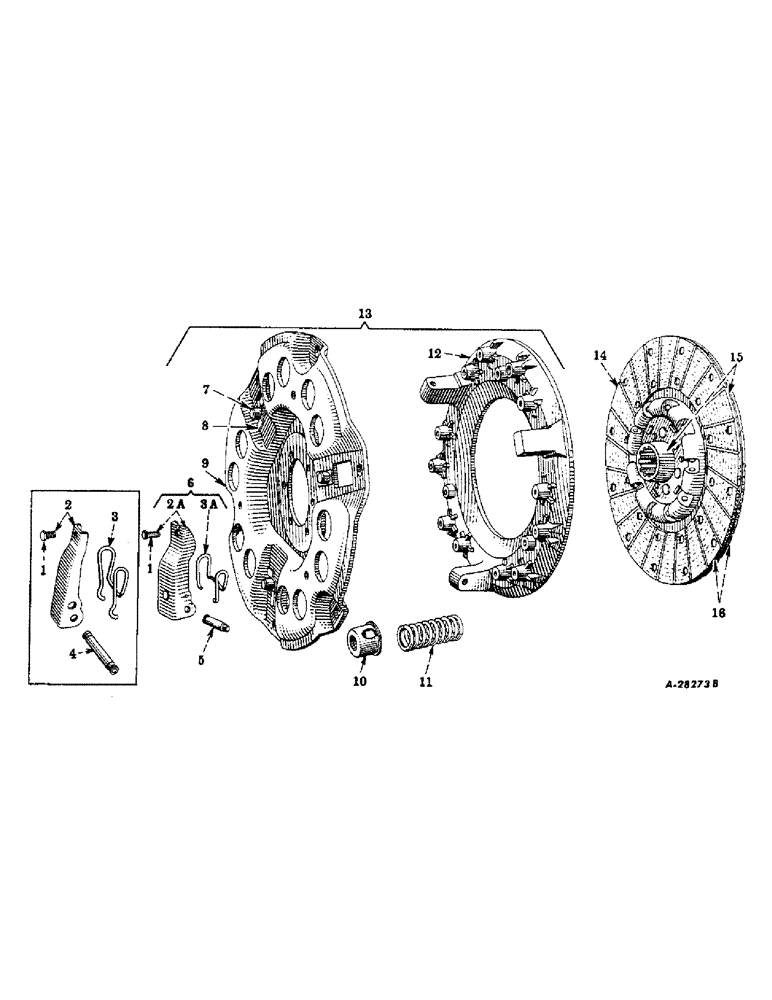

Запчасти Case IH FARMALL MV (190) - CHASSIS, CLUTCH, ROCKFORD, FBK 294708 AND UP (12) - CHASSIS

1

357301R1

ADJUSTMENT SCREW

ADJUSTING SCREW

3шт.

2

357300R91

LEVER

WITH SCREW, 357301R1 (Order 357304R94)

3шт.

2a

357932R92

LEVER

WITH SCREW, 357301R1

3шт.

3

357303R1

LEVER SPRING (Used only with 357300R91)

3шт.

3a

368777R1

SPRING

LEVER SPRING (Will work for 353318R1)

3шт.

4

357302R1

CLUTCH RELEASE LEVER PIVOT PIN

3шт.

5

52846D

PIN

LEVER PIN

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

6

357304R95

LEVER

CLUTCH LEVER, complete

1шт.

7

353314R1

LEVER ADJUSTING SCREW SEAT

3шт.

8

353313R1

CLIP

LEVER SPRING CLIP

3шт.

9

353312R92

BACK PLATE WITH THREE CLIPS, 353313R1 AND THREE SEATS, 353314R1

1шт.

10

353316R1

SPRING CUP

CLUTCH PRESSURE SPRING CUP

12шт.

11

361128R1

SPRING

CLUTCH SPRING (9-1/2" coils) (Order 369352R91)

12шт.

11

369351R1

SPRING

CLUTCH SPRING (Part of package, 369352R91)

12шт.

11

369352R91

CLUTCH PRESSURE SPRING PACKAGE (Consists of 12 springs, 369351R91) (Will work for 361128R1)

1шт.

12

353315R1

LARGE PLATE

PRESSURE PLATE

1шт.

13

357299R95

COVER ASSY

CLUTCH PRESSURE PLATE, complete

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

CAP SCREW, 1/2 x 1" N.C. hex head

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

CLUTCH FACING RIVET (Brass)

26шт.

15

68757HC

CLUTCH DRIVEN DISC WITH FACING, 257819R21 (Will work for 357307R91) (Optional with 359168R91)

1шт.

15

359168R91

PLATE

CLUTCH DRIVEN DISC WITH FACING, 257819R21 (Will work for 357307R91) (Optional with 68757HC)

1шт.

16

257819R21

LINING

CLUTCH FACING PACKAGE (Two facings) (With twenty-six rivets, 37508D)

1шт.
