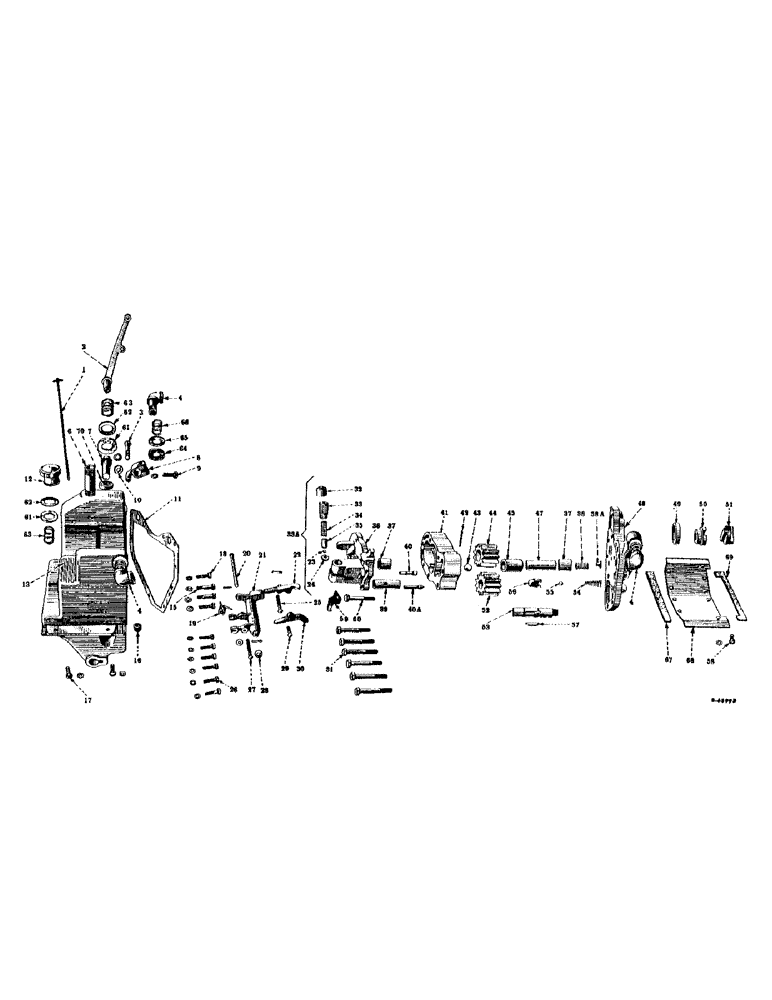

Запчасти Case IH FARMALL MDV (278) - HYDRAULIC SYSTEM, HYDRAULIC "LIFT-ALL" ATTACHMENT, SPECIAL, PUMP UNIT (07) - HYDRAULIC SYSTEM

1

15158EX

GAUGE

OIL STICK (For use with breather cap, 5047EX)

1шт.

2

5044EB

CONTROL LEVER, outer

1шт.

3

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

15078EB

OIL OUTLET ELBOW, complete (Welded)

3шт.

6

16067R1

PIPE NIPPLE, 3/4 x 3-1/4"

1шт.

7

15089EA

CONTROL SHAFT

1шт.

8

5032E

INNER CONTROL SHAFT LEVER

1шт.

9

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

CAP SCREW, 7/16 x 1-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10

15010E

CONTROL SHAFT KEY

1шт.

11

15081E

GASKET

RESERVOIR GASKET

1шт.

12

5047EX

CAP

BREATHER CAP (Use oil stick 15158EX)

1шт.

13

5027EE

OIL RESERVOIR

1шт.

15

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

CAP SCREW, 7/16 x 1-3/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

16

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

17

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

15068EB

SPRING

CAM VALVE AND PISTON LEVER SPRING

1шт.

20

15086E

PIN, 3/8 x 6-3/4" (Drilled)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

5031EA

CAM AND PISTON VALVE LEVER

1шт.

22

5024EA

LOCKING CLIP

1шт.

23

16012R1

BALL

STEEL BALL, 3/8" diameter

1шт.

24

15073E

WASHER

BALL PRESSURE SEAT

1шт.

25

PO14564

AXLE PIN

PIN, 5/16 x 2-3/4" (Drilled)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

26

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

27

Q3533

HEADED PIN,5/16" x 3"

PIN, 5/16 x 3" (Drilled)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

28

Q101

WASHER

5/16 x 3/4" x 18 gauge

2шт.

29

15074E

CAM PLATE PIN, 5/16 x 1-1/2" (Slotted)

1шт.

30

5020E

CAM PLATE

1шт.

31

355116R1

FOLLOWS REFERENCE 36

6шт.

32

15063EC

RELIEF VALVE CAP

1шт.

33

15062E

RELIEF VALVE BODY

1шт.

33a

358356R91

VALVE

RELIEF VALVE, complete (Will work for 15062EX)

1шт.

34

15258E

SPRING

RELIEF VALVE SPRING

1шт.

35

358358R1

SLEEVE

RELIEF VALVE SPRING SLEEVE (Will work for 15160EA)

1шт.

36

5030ECX

PUMP COVER, complete with bushing (S/N below 146397)

1шт.

36

352429R11

PUMP COVER WITH BEARING, 550850R91 (S/N 146397 up)

1шт.

355116R1

CAP SCREW, 1/2 x 3-1/4" (Special) (Will work for 179894)

6шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2"

1шт.

37

15054E

BUSHING

PUMP DRIVE SHAFT BUSHING (S/N below 146397)

2шт.

37

550850R91

NEEDLE BEARING

PUMP DRIVE SHAFT BEARING (S/N 146397 up)

2шт.

38

15056E

SPRING

HOLD UP BALL SPRING (8 coils) (Used with 15075EDX)

1шт.

38a

352783R1

STOP

HOLD UP BALL STOP (Used with 15075EDX)

2шт.

39

15061EA

PISTON

1шт.

40

15066E

HOLD UP BALL LIFT PIN (Used with 15075EDX)

1шт.

40a

356683R1

DIFFERENTIAL CHECK VALVE LIFT PIN (See note)

1шт.

41

352437R91

BODY

PUMP BODY, with shim package, 352431R91 (Will work for 5029EA)

1шт.

42

15257E

SPRING

LOCKING CLIP SPRING

1шт.

43

16024R1

BALL

STEEL BALL, 3/4" diameter (Used with 15075EDX)

1шт.

44

352419R92

GEAR

PUMP DRIVEN GEAR (11 teeth) with bushing, 357883R1 (S/N below 146397)

1шт.

44

15052EA

PUMP DRIVEN GEAR (11 teeth) (Order 352428R93) (S/N 146397 up)

1шт.

45

357883R1

BUSHING

PUMP DRIVEN GEAR BUSHING (Will work for (2) bushing, 15053E and (2) bearing, 550839R91)

1шт.

47

15055E

PUMP DRIVEN GEAR STUD (.9980/.9985 O.D.) (S/N below 146397)

1шт.

47

352423R1

PIN

PUMP DRIVEN GEAR STUD (.9995/1.000 O.D.) (S/N 146397 up)

1шт.

48

5028EBX

BACK PLATE, complete with bushing (S/N below 146397)

1шт.

48

352430R11

BACK PLATE, complete (S/N 146397 up)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8"

6шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4"

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

CAP SCREW, 7/16 x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

49

43509D

OIL SEAL

OIL SEAL

1шт.

50

15060EA

COUPLING

PUMP SHAFT FEMALE COUPLING

1шт.

51

15080EA

PAWL

DRIVING DOG, is now a male to male, replaces: Ref 15080E

1шт.

52

15051EA

PUMP DRIVE GEAR (11 teeth) (S/N below 146397)

1шт.

52

15051EA

PUMP DRIVE GEAR (11 teeth) (Order 352428R93) (S/N 146397 up)

1шт.

53

15058EA

PUMP DRIVE SHAFT (Has .9970/.9975 O.D. bearing surfaces) (S/N below 146397)

1шт.

53

352420R2

SHAFT

PUMP DRIVE SHAFT (Has .9990/.9995 O.D. bearing surfaces) (S/N 146397 up)

1шт.

53

15058EAX

PUMP DRIVE SHAFT, 15058EA with gear, 15051EA and key, 144542 (S/N below 146397)

1шт.

53

PUMP DRIVE SHAFT, with gear (Order 352428R93) (S/N 146397 up)

1шт.

54

356684R1

SPRING

DIFFERENTIAL CHECK VALVE SPRING (Used with 15075EEX) (See note)

1шт.

55

16013R1

BALL

DIFFERENTIAL CHECK VALVE BALL (13/32") (Used with 15075EEX) (See note)

1шт.

56

356682R1

VALVE

DIFFERENTIAL CHECK VALVE (Used with 15075EEX) (See note)

1шт.

57

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

no. 126

1шт.

58

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

59

15265E

BEARING RETAINER BRACKET

1шт.

60

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2"

1шт.

61

15163E

WASHER,1.03" ID x 2" OD x 0.125" Thk

FILLER PIPE AND OPERATOR'S CONTROL ROD FELT WASHER (1-1/32" I.D. x 2" O.D. x 1/8" thick)

2шт.

62

Q357

WASHER, 1-3/32 x 2" x 18 ga.

3шт.

63

15240E

SPRING

FILLER PIPE AND OPERATOR'S CONTROL ROD DUST SEAL SPRING (4 coils)

2шт.

64

15162E

SEALING WASHER

OIL OUTLET ELBOW FELT WASHER (13/16" I.D. x 2" O.D. x 1/8" thick)

3шт.

65

Q3691

WASHER, 29/32 x 2" x 22 ga.

3шт.

66

15164EA

OIL OUTLET ELBOW DUST SEAL SPRING (3-1/2" coils)

3шт.

67

15179EA

REAR COVER PLATE FELT STRIP, rear

1шт.

68

15083EA

REAR COVER PLATE

1шт.

69

15178EA

STRIP

REAR COVER PLATE FELT STRIP, front

1шт.

70

19812D

CONTROL SHAFT OIL SEAL (Used with shaft 15089E)

1шт.

70

494027R1

CONTROL SHAFT OIL SEAL (Used with shaft 15089EA)

1шт.

15175EX

IMPROVEMENT PACKAGE FOR DUST SEALING (Farmall M, MD and MDV tractors not so equipped) (S/N below 21606)

1шт.

15261EX

IMPROVEMENT PACKAGE FOR INCREASING PUMP PRESSURE FROM 500 TO 800 POUNDS FOR "LIFT-ALL" ATTACHMENTS

1шт.

15259E

GASKET

RELIEF VALVE GASKET (1/64" vellumoid)

1шт.

352428R93

GEAR

PUMP GEAR PACKAGE

1шт.

352431R91

SHIM KIT

PUMP BODY SHIM PACKAGE

1шт.

494028R91

CONTROL SHAFT SEALING IMPROVEMENT PACKAGE (Includes shaft, 15089EA and seal, 494027R1) (S/N below 103761)

1шт.
