Запчасти Case IH FARMALL MDV (158) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, REAR LIGHT AND TAIL LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS

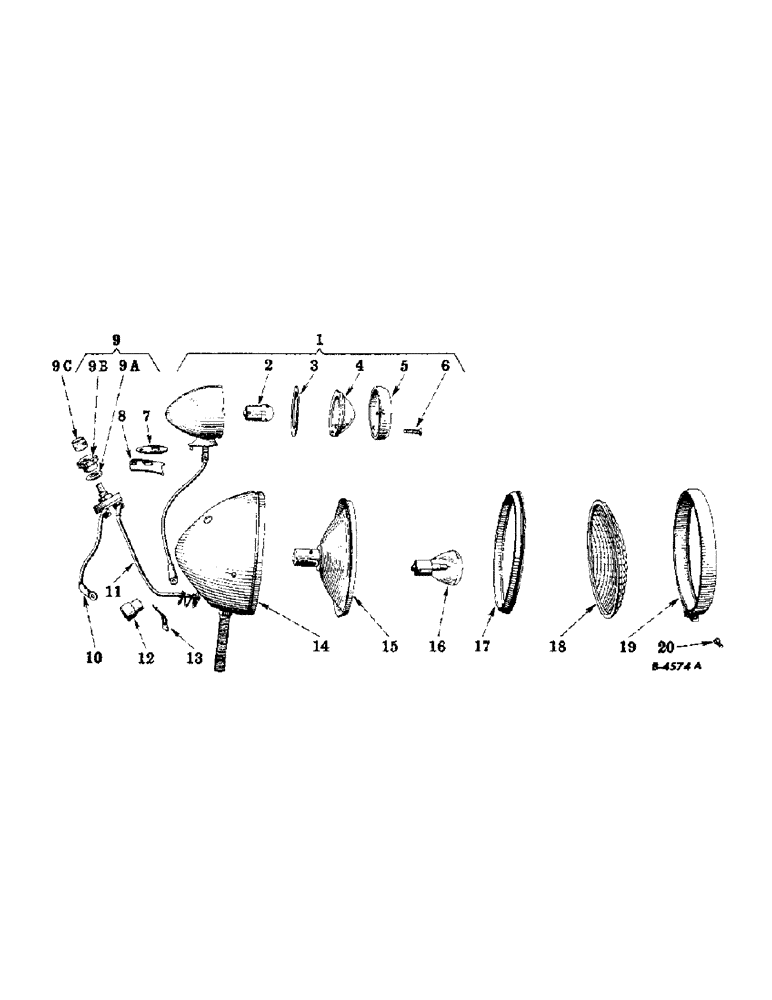

Схема запчастей Case IH FARMALL MDV - (158) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, REAR LIGHT AND TAIL LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS
17
20
14
19
4
6
12
2
7
13
18
16
10
3
5
1
9a
11
8
9c
9b
9
15

Артикул

Название

Примечание

Количество

353268R92

LIGHT

COMBINATION REAR LIGHT AND TAIL LIGHT ATTACHMENT (6 volt) ("M" and "MV") (Order 355914R91)

1шт.

353269R92

LIGHT

COMBINATION REAR LIGHT AND TAIL LIGHT ATTACHMENT (12 volt) ("MD" and "MDV") (Order 355915R91)

1шт.

1

354305R92

LAMP, TAIL

TAIL LIGHT, assembly (6 volt)

1шт.

1

354306R92

TAIL LIGHT, assmebly (12 volt)

1шт.

2

86982698

LAMP

TAIL LIGHT LAMP (SC-6-8 volt, no. 63 - 3 candlepower)

1шт.

2

142450

BULB,C2R, #67, 13.5V

TAIL LIGHT LAMP (SC-12-16 volt, no. 67 - 3 candlepower)

1шт.

3

92111H

TAIL LIGHT DOOR GASKET

1шт.

4

354308R1

TAIL LIGHT LENS, ruby

1шт.

5

354307R92

TAIL LIGHT DOOR, assembly

1шт.

6

104733H

TAIL LIGHT DOOR SCREW

1шт.

7

104734H

TAIL LIGHT MOUNTING GASKET

1шт.

8

354310R1

TAIL LIGHT MOUNTING STIFFENER

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

121917

HEX NUT, 5/16" N.F. (Cadmium plated)

1шт.

9

359682R91

SWITCH

REAR LIGHT AND RAIL LIGHT SWITCH, w/knob, 359773R91 and nut, 355425R1 (Will work for 354309R91)

1шт.

9a

355425R1

SWITCH RETAINING NUT

1шт.

9b

359773R91

SWITCH KNOB (Plastic) (Used only with 359682R91)

1шт.

9c

355423R91

SWITCH KNOB WITH SCREW (Metal) (Used with 354309R91)

1шт.

10

354303R91

SWITCH TO TERMINAL PLATE WIRE

1шт.

11

354304R91

SOCKET TO SWITCH WIRE WITH SPRING

1шт.

12

79407H

PLATE

REAR LIGHT AND TAIL LIGHT TERMINAL PLATE

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SLOTTED SCREW, no. 8-32 x 5/16" round head (Cadmium plated)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

13

79408H

REAR LIGHT AND TAIL LIGHT TERMINAL RETAINING SPRING

1шт.

14

354305R92

LAMP, TAIL

REAR LIGHT BODY

1шт.

15

53523D

REAR LIGHT REFLECTOR

1шт.

16

B50206

LAMP

(SC 6-8 volt, no. 1133 - L - 32 candlepower)

1шт.

16

A41264

BULB,#1156, 12V

LAMP (SC 12-16 volt, no. 1143 - 32 candlepower)

1шт.

17

53527D

GASKET

REAR LIGHT GASKET

1шт.

18

350478R1

LENS

REAR LIGHT LENS

1шт.

19

53525DA

MOLDING

REAR LIGHT MOLDING

1шт.

20

53526D

SCREW

REAR LIGHT DOOR SCREW

1шт.

68417D

INSULATOR

TERMINAL PLATE, complete

1шт.

Выбрано товаров: 33
