Запчасти Case IH FARMALL MDV (154) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINES, HEADLIGHT OR REAR LIGHT SUPPORTS (06) - ELECTRICAL SYSTEMS

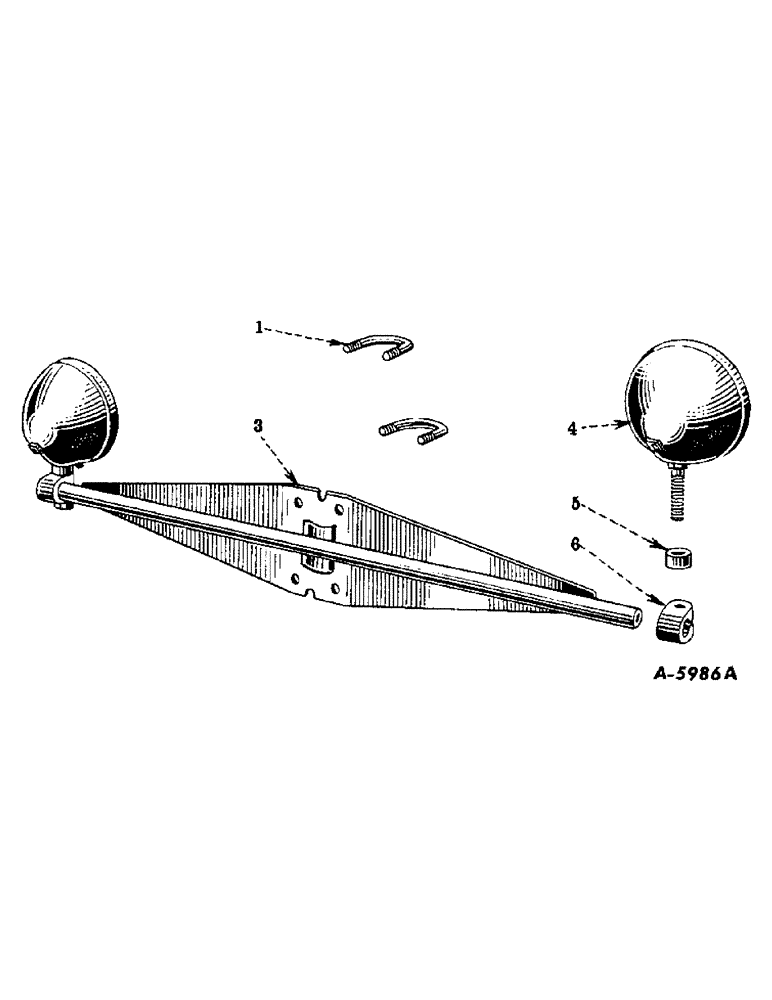

Схема запчастей Case IH FARMALL MDV - (154) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINES, HEADLIGHT OR REAR LIGHT SUPPORTS (06) - ELECTRICAL SYSTEMS
4
6
3
1
5

Артикул

Название

Примечание

Количество

1

59468D

HEADLIGHT SUPPORT "U" BOLT (Will work for 51679D) (S/N FBK 27271 up)

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

51675DC

HEADLIGHT SUPPORT PIPE AND PLATE

1шт.

4

45640DB

LAMP

HEADLIGHT OR REAR LIGHT (Conventional)

1шт.

4

61225DB

LAMP

HEADLIGHT OR REAR LIGHT (Conventional)

1шт.

4

357884R94

LAMP

HEADLIGHT OR REAR LIGHT (Sealed beam) (6 to 8 volt)

3шт.

4

357885R94

LAMP

HEADLIGHT OR REAR LIGHT (Sealed beam) (12 volt)

3шт.

(See list of parts under "Headlights or rear lights" unit)

3шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

49069D

SPACER

HEADLIGHT SPACER

2шт.

6

350920R1

CLAMP

HEADLIGHT CLAMP (Will work for 6780D)

2шт.

9231DA

REAR LIGHT SUPPORT (Optional with 353642R11) (S/N FBK up)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

51678D

HEADLIGHT SUPPORT SADDLE (S/N FBK, Serial Range: 501-27270)

1шт.

66836D

REAR LIGHT SUPPORT 9231DA WITH CAP SCREW, 179874 (Will work for 9231D) (S/N FBK 501 to)

1шт.

353642R11

REAR LIGHT SUPPORT (Optional with 9231DA) (S/N FBK up)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head

1шт.

358285R1

SPACER,3/8" Pipe x 1 3/8"

REAR LIGHT SUPPORT (Used with hydraulic seat suspension and battery box package)

1шт.

Выбрано товаров: 20
