Запчасти Case IH FARMALL MDV (146) - ELECTRICAL SYSTEM, DIESEL ENGINE, BATTERY IGNITION UNIT, FOR TRACTORS EQUIPPED W/BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

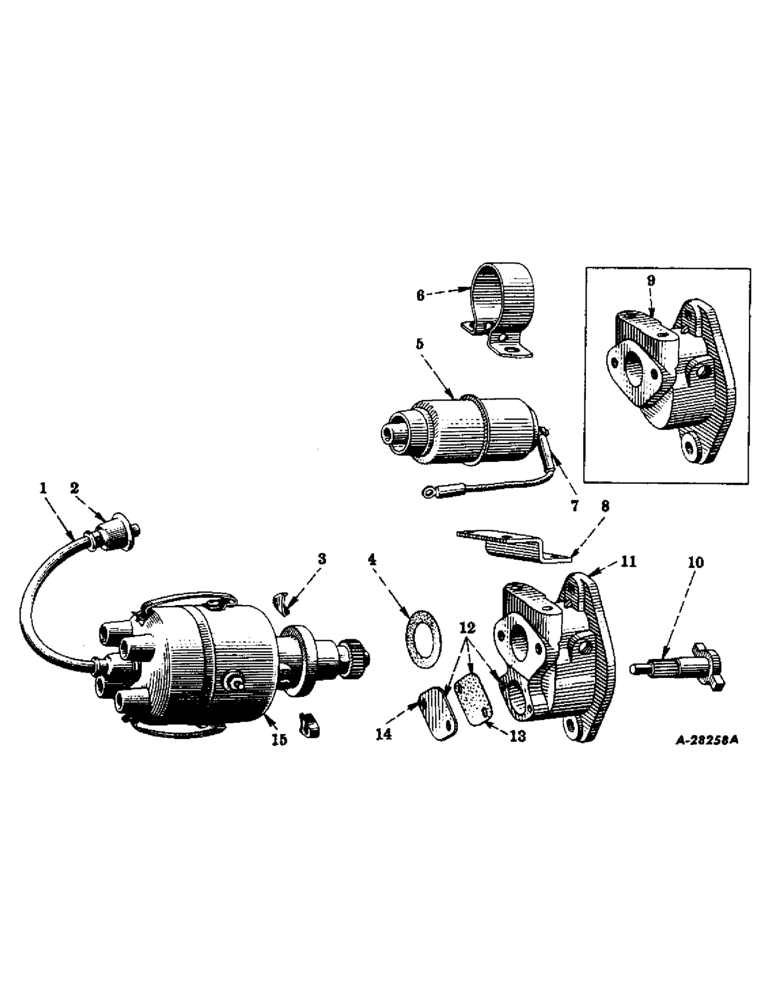

Схема запчастей Case IH FARMALL MDV - (146) - ELECTRICAL SYSTEM, DIESEL ENGINE, BATTERY IGNITION UNIT, FOR TRACTORS EQUIPPED W/BATTERY IGNITION (06) - ELECTRICAL SYSTEMS
8
9
14
7
5
3
1
13
6
2
10
4
12
15
11

Артикул

Название

Примечание

Количество

356610R92

UNIT

BATTERY IGNITION UNIT(replaces 256610R92)

1шт.

1

356686R92

CABLE

COIL TO DISTRUBUTOR SECONDARY CABLE W/TWO NIPPLES, 251553R1

1шт.

2

251553R1

BOOT

SECONDARY CABLE NIPPLE

2шт.

3

353937R1

CLIP

DISTRIBUTOR CLAMP

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

CAP SCREW, 5/16-18NC x 7/8" hex-hd., cd-pltd.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

DISTRIBUTOR GASKET

1шт.

5

353875R91

COIL

IGNITION COIL (12 volt)

1шт.

5

396547R93GV

COIL

Value, Ignition Coil

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

353889R1

CLAMP

COIL CLAMP

1шт.

120376

NUT,5/16"-18, G5

2шт.

120611

NUT,#10 - 32

SQUARE NUT, no. 10-32NF, cd-pltd.

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

CAP SCREW, 5/16-18NC x 5/8", hex-hd., cd-pltd.

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10-32NF x 1-1/4", slotted-rd-hd., cd-pltd.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16", cd-pltd.

4шт.

7

357929R92

ELECTRIC CABLE

PRIMARY COIL TO DISTRIBUTOR CABLE

1шт.

8

353941R1

IGNITION COIL BRACKET

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

CAP SCREW, 5/16-18NC x 5/8", hex-hd., cd-pltd.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16", cd-pltd.

2шт.

9

DISTRIBUTOR DRIVE HOUSING (Without hole for tachometer drive) (Order 363749R91)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

10

353934R11

SHAFT

DISTRIBUTOR DRIVE SHAFT W/INTEGRAL GEAR (16 teeth)

1шт.

11

363763R11

DISTRIBUTRO DRIVE HOUSING, w/bushing (Has hole for tachometer drive)

1шт.

103383

COTTER PIN,1/8" x 1/2"

PIPE PLUG, 1/8", slotted headless

1шт.

12

363749R91

HOUSING

DISTRIBUTOR DRIVE HOUSING, complete (Will work for 353933R11)

1шт.

13

363765R1

GASKET

DISTRIBUTOR DRIVE HOUSING HOLE COVER GASKET (Used with 363763R11)

1шт.

14

363764R1

COVER

DISTRIBUTOR DRIVE HOUSING HOLE COVER (Used with 363763R11)

1шт.

435429

MACHINE SCREW, no. 10-32NF x 9/16", slotted rd-hd., cd-pltd. Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

356657R91

DISTRIBUTOR

complete (For components see list of parts under details of "Battery ignition distributor")

1шт.

Выбрано товаров: 35
