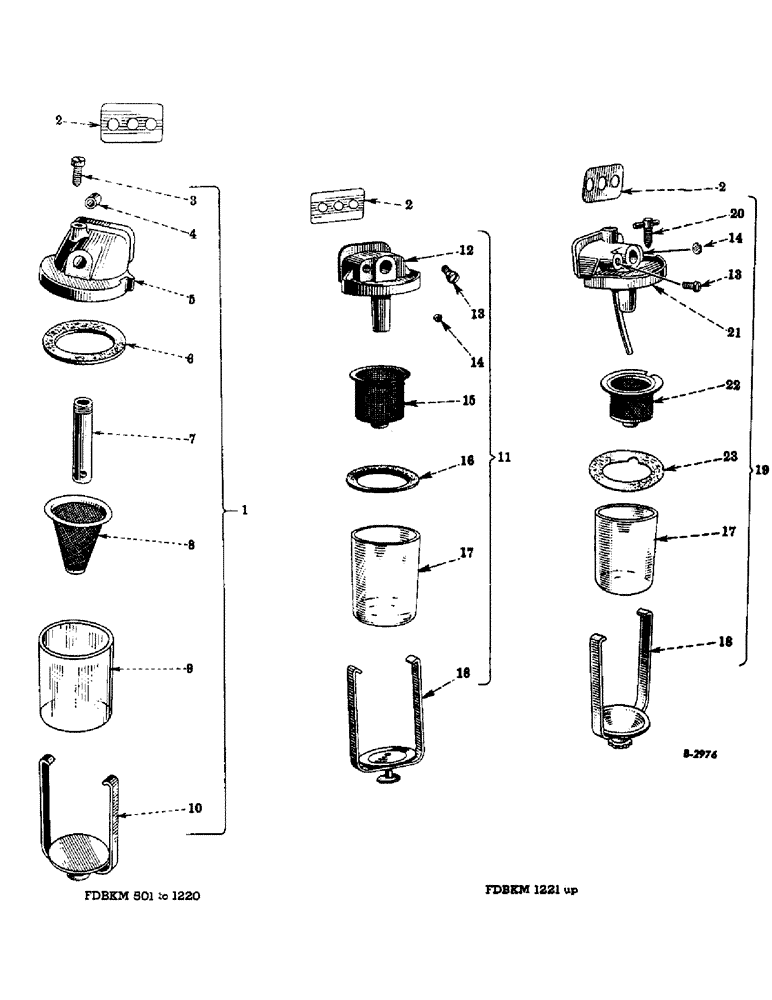

Запчасти Case IH FARMALL MDV (080) - DIESEL ENGINE, WATER TRAP (01) - ENGINE

1

51338D

WATER TRAP, complete (Order 251355R91) (S/N FDBKM, Serial Range: 501-1220)

1шт.

2

51527DC

GASKET

WATER TRAP GASKET

1шт.

3

54766D

WATER TRAP VENT SCREW (Order 60871DA) (S/N FDBKM, Serial Range: 501-1220)

1шт.

4

51339D

WATER TRAP TOP DOWEL (Not used with top, 9118DX) (S/N FDBKM, Serial Range: 501-2351)

2шт.

5

54765D

WATER TRAP BODY WITH 2 DOWELS, 51339D (Order 251748R91) (S/N FDBKM, Serial Range: 501-1220)

1шт.

6

54763D

EXCITER

WATER TRAP BOWL GASKET (Order 60876D) (S/N FDBKM, Serial Range: 501-1220)

1шт.

7

54762D

TUBE

WATER TRAP TUBE (S/N FDBKM, Serial Range: 501-1220)

1шт.

8

54761D

SCREEN

WATER TRAP SCREEN (S/N FDBKM, Serial Range: 501-1220)

1шт.

9

54764D

EXCITER

WATER TRAP GLASS BOWL (Order 60877D) (S/N FDBKM, Serial Range: 501-1220)

1шт.

10

54760D

EXCITER

WATER TRAP BAIL (Order 60878DX) (S/N FDBKM, Serial Range: 501-1220)

1шт.

11

60870D

WATER TRAP, complete (Order 251355R91) (S/N FDBKM, Serial Range: 501-2351)

1шт.

12

9118DX

WATER TRAP TOP WITH PLUG, 24805D (Order 251748R91) (S/N FDBKM, Serial Range: 1221-2351)

1шт.

12

9257DX

WATER TRAP TOP WITH PLUG, 20345D and 2 dowels, 51339D (Order 251748R91) (S/N FDBKM, Serial Range: 1221-2351)

1шт.

13

60871DA

WATER TRAP VENT SCREW (Will work for 54766D) (S/N FDBKM 1221 up)

1шт.

14

20345D

WATER TRAP TOP EXPANSION PLUG, 3/8" (Steel) (Used with top, 9257DX) (S/N FDBKM, Serial Range: 1221-2351)

1шт.

14

24805D

PLUG

WATER TRAP TOP EXPANSION PLUG, 3/8" (Brass) (Used with top, 9118DX and 251380R1) (S/N FDBKM 1221 up)

1шт.

15

60872D

WATER TRAP SCREEN (S/N FDBKM, Serial Range: 1221-2351)

1шт.

16

60876DX

WATER TRAP BOWL GASKET (Will work for 54763D) (S/N FDBKM, Serial Range: 1221-2351)

1шт.

17

60877D

BOWL

WATER TRAP GLASS BOWL (Will work for 54764D) (S/N FDBKM 1221 up)

1шт.

18

60878DX

BALL

WATER TRAP BAIL (Will work for 54760D) (S/N FDBKM 1221 up)

1шт.

19

251355R91

TRAP

WATER TRAP, complete (Will work for 51338D and 60870D) (S/N FDBKM 2352 up)

1шт.

20

251347R11

WATER TRAP DRAIN SCREW (S/N FDBKM 2352 up)

1шт.

21

251380R91

TOP

WATER TRAP TOP WITH DRAIN PIPE EXTENSION PLUG, 24805D (S/N FDBKM 2352 up)

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

CAP SCREW, 1/2 x 3" N.C. hex head

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

22

251348R91

SCREEN

WATER TRAP SCREEN (S/N FDBKM 2352 up)

1шт.

23

260708R2

GASKET

WATER TRAP BOWL GASKET (Will work for 251352R1) (S/N FDBKM 2352 up)

1шт.

251748R91

WATER TRAP TOP 251380R91, complete (Will work for 9118DX, 9257DX and 54765D) (S/N FDBKM, Serial Range: 501-2351)

1шт.
