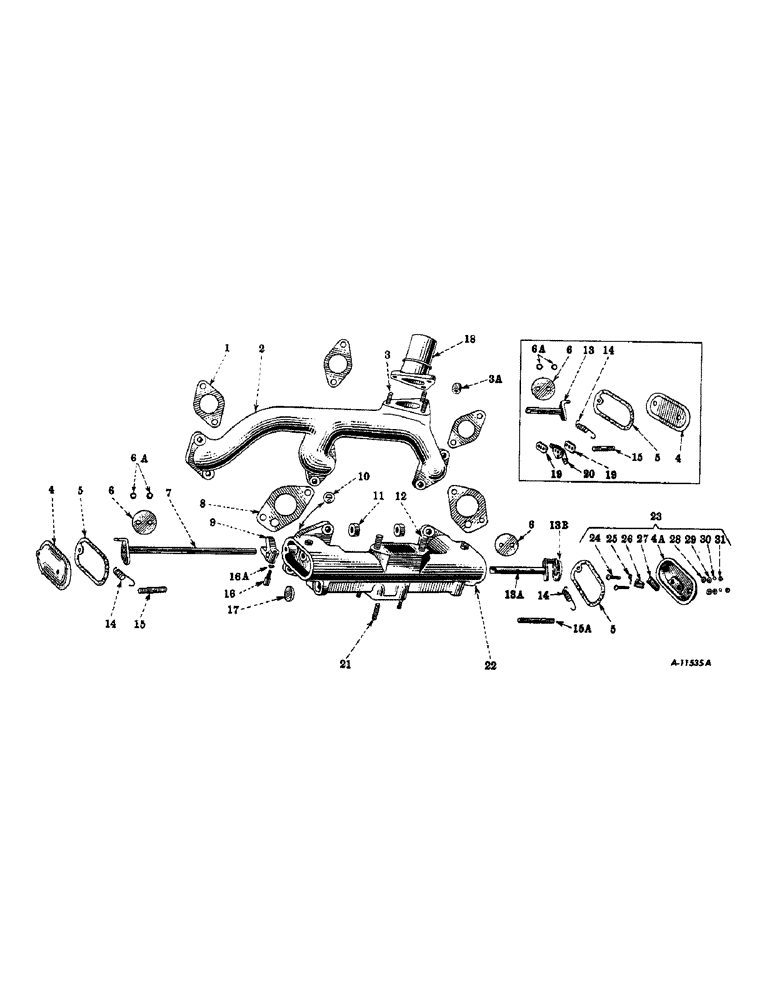

Запчасти Case IH FARMALL MDV (062) - DIESEL ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

52649D

GASKET

EXHAUST MANIFOLD GASKET

3шт.

2

8277DX

EXHAUST MANIFOLD WITH 2 STUDS, 46202D

1шт.

3

46202D

STUD

EXHAUST PIPE STUD

2шт.

3a

64504DA

EXHAUST PIPE STUD NUT (Will work for 19963D)

2шт.

4

52519D

INTAKE MANIFOLD END COVER

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAP SCREW, 1/4 x 3/4" N.C. hex head

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

263312R1

INTAKE MANIFOLD END COVER, REAR (See note B)

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

446186

WASHER,1/4" x 1/2" x .049"

WASHER, 1/4" I.D. x 1/2" O.D. x 18 ga. (Copper)

1шт.

54909H

GASKET

WASHER, 21/64" I.D. x 5/8" O.D. x 18 ga. (Copper)

1шт.

REF#4 THE SEE NOTE COMMENT SHOULD READ (SEE NOTE B)

1шт.

4a

INTAKE MANIFOLD END COVER, front (Order 263345R92)

1шт.

5

52520DB

GASKET

INTAKE MANIFOLD END COVER GASKET

2шт.

6

52653D

INTAKE MANIFOLD BUTTERFLY VALVE

4шт.

228148

SHIELD

SCREW, no. 8 - 32 x 3/8" N.C. round head (S/N FDBKM 892 up)

4шт.

100855

SELECTOR

SCREW, no. 8 - 32 x 1/2" N.C. oval head (S/N FDBKM, Serial Range: 501-891)

4шт.

6a

48716H

WASHER

INTAKE MANIFOLD BUTTERFLY VALVE LOCKWASHER (Shakeproof) (S/N FDBKM, Serial Range: 893-5127)

4шт.

7

52836DX

INTAKE MANIFOLD CONTROL SHAFT, rear with lever

1шт.

8

52650DC

MANIFOLD GASKET

INTAKE MANIFOLD GASKET

2шт.

9

52654D

INTAKE MANIFOLD CONTROL LEVER (Optional with 263030R91)

1шт.

9

263030R91

INTAKE MANIFOLD CONTROL LEVER (Optional with 52654D)

1шт.

10

56527D

INTAKE MANIFOLD BAFFLE (S/N FDBKM, Serial Range: 501-1772)

2шт.

11

53083D

INTAKE MANIFOLD CONTROL SHAFT SEAL (Optional with 264531R91)

2шт.

11

264531R91

INTAKE MANIFOLD CONTROL SHAFT SEAL (Optional with 53083D)

2шт.

12

G1988

STUD

AIR CLEANER PIPE STUD

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

52835DX

INTAKE MANIFOLD CONTROL SHAFT, front with lever (See note A)

1шт.

142341

RIVET, 1/8 x 3/16" round head (Brass)

1шт.

13a

263324R93

INTAKE MANIFOLD CONTROL SHAFT AND LEVER WITH CONTACT DISC 265913R91 and eyelet, 188664 (See note B)

1шт.

13b

265913R91

INTAKE MANIFOLD CONTROL SHAFT CONTACT DISC, with two eyelet, 188527 and eyelet, 188664 (See note B)

1шт.

14

56107D

INTAKE MANIFOLD CONTROL SPRING (Will work for 50696D)

2шт.

15

54964D

INTAKE MANIFOLD CONTROL SPRING STUD (See note A)

2шт.

15a

263318R1

INTAKE MANIFOLD CONTROL SPRING STUD (See note B)

2шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

42739DA

STUD

INTAKE MANIFOLD CONTROL LEVER PIN

1шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

1шт.

16a

114604

LOCK WASHER,Ext Tooth, 1/4"

INTAKE MANIFOLD CONTROL LEVER PIN LOCKWASHER (Shakeproof) (Same as 2853Y)

1шт.

17

41-16

PLUG,Exp, 1"

INTAKE MANIFOLD EXPANSION PLUG, 1" (Same as 23007V)

2шт.

18

8328D

EXHAUST PIPE

1шт.

19

52514D

IGNITION CUTOUT SWITCH INSULATING PLATE (See note A)

2шт.

110504

SCREW,Slotted Rd Hd, #10-24 x 1"

no. 10 - 24 x 1" round head

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Q102

WASHER

13/64" I.D. x 1/2" O.D. x no. 18 gauge

1шт.

20

52515DA

IGNITION CUTOUT SWITCH CONTACT AND TERMINAL PLATE, complete (See note A)

1шт.

21

50705D

STUD

CARBURETOR STUD

4шт.

22

270853R91

INTAKE MANIFOLD, complete (Will work for 8526 DBXA and 256632R11)

1шт.

102390

SET SCREW, 5/16" x 3/4" N.C. headless (Oval point)

2шт.

220065

HEX NUT, 5/16" N.C.

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, (S/N FDBKM 733 to 2061) Slotted, Headless, 1/8" NPT

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(S/N FDBKM 733 to 2061) Hex, 3/8"-16 x 1/2", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (S/N FDBKM 733 to 2061) 3/8"

2шт.

23

263311R12

INTAKE, manifold end cover, front, complete (See note B) (For tractors with battery ignition)

1шт.

23

263345R92

INTAKE, manifold end cover, front, complete (See note B) (For tractors with magneto ignition)

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

263330R1

SCREW,Slotted Pan Hd, #10-32 x 1"

no. 10-32 x 1" N.F. pan head (See note B)

1шт.

24

263356R1

SCREW, no. 10-32 x 5/8" N.F. pan head (See note B)

1шт.

25

263327R1

SWITCH CONTACT BLADE (See note B)

1шт.

26

263358R1

SWITCH CONTACT BLADE (See note B)

1шт.

27

263325R2

SWITCH, blade mounting strip (See note B)

1шт.

28

263326R1

TERMINAL, insulator (See note B)

1шт.

29

363329R1

TERMINAL, screw washer (See note B)

1шт.

30

493-41020

LOCK WASHER,Ext Tooth, #10

LOCKWASHER, no. 10, external tooth (Cadmium plated) (See note B)

2шт.

31

120614

NUT,Hex, #10 - 32

NUT, (See note B) #10-32

2шт.

263357R1

MAGNETO, grounding sleeve (See note B)

1шт.

188664

WASHER

EYELET, 1/4 x 7/32", brass (For 263324R93)

1шт.

188527

EYELET, 1/8 x 1/4", brass (For 265913R91)

2шт.

228148

SHIELD

MANIFOLD BUTTERFLY VALVE SCREW (Will work for 100750 and 256271R1) (S/N FDBKM 892 up)

4шт.
