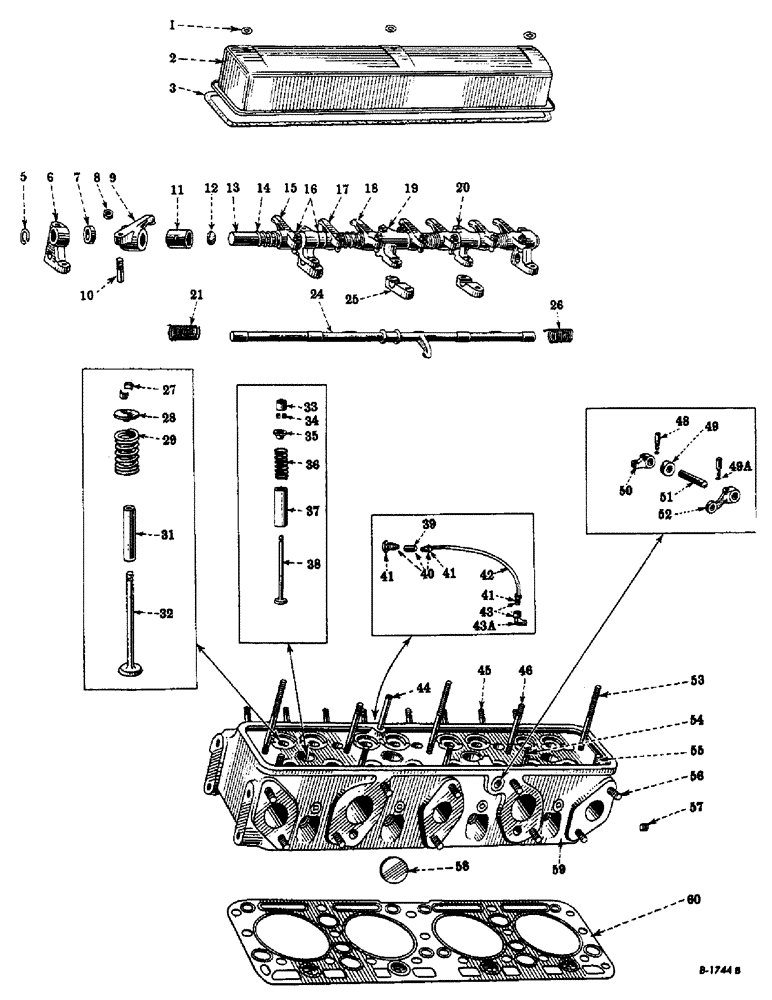

Запчасти Case IH FARMALL MDV (040) - DIESEL ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND STARTING VALVE MECHANISM (01) - ENGINE

1

62866D

WASHER,5/64" Thk x 13/32" ID

VALVE COVER STUD NUT WASHER (Will work for 58511D)

3шт.

2

52018DAX

VALVE COVER WITH STIFFENER

1шт.

3

52019D

GASKET

VALVE COVER GASKET

1шт.

5

49950D

VALVE LEVER SHAFT SNAP RING

2шт.

6

8202D

VALVE LEVER BRACKET, end

2шт.

7

52017D

VALVE LEVER SPACER, short

2шт.

8

133093R1

NUT,Hex, 3/8" - 24

VALVE LEVER ADJUSTING SCREW NUT (Will work for 38763H)

8шт.

9

46224DBX

EXHAUST VALVE LEVER, R.H. w/bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

10

16067DA

ADJUSTMENT SCREW,3/8" - 24

VALVE LEVER ADJUSTING SCREW

8шт.

11

46225DA

VALVE LEVER BUSING

8шт.

12

172530

PLUG,Exp, 11/16"

VALVE LEVER SHAFT EXPANSION PLUG, 11/16" (Same as 27080H)

2шт.

13

52016DX

VALVE LEVER SHAFT WITH PLUG, 172530

2шт.

14

46218D

VALVE LEVER SPRING

4шт.

15

46221DBX

INTAKE VALVE LEVER L.H., with bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

16

46220D

VALVE LEVER SPACER, long

4шт.

17

46222DBX

INTAKE VALVE LEVER, R.H., with bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

18

46223DBX

EXHAUST VALVE LEVER, L.H., with bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

19

8201D

VALVE LEVER BRACKET, center, upper half

1шт.

102720

CRANKSHAFT

HEADLESS SET SCREW, 5/16 X 3/4" N.C. (Cup point)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

20

8200D

VALVE LEVER BRACKET, intermediate upper half

2шт.

21

51169D

STARTING VALVE SHAFT SPRING, rear

1шт.

24

52014DB

STARTING VALVE SHAFT WITH LEVER (Order four covers, 250535R1 and shaft, 256102R92) (S/N FDBKM, Serial Range: 501-3720)

1шт.

24

260939R91

STARTING VALVE SHAFT, 256102R93 with lever, 260938R1 (Will work for 256102R91) (S/N FDBKM, Serial Range: 3721-16662)

1шт.

24

256102R93

STARTING VALVE SHAFT (S/N FDBKM 16663 up)

1шт.

25

8199D

VALVE LEVER BRACKET, center and intermediate lower half

3шт.

26

51170D

STARTING VALVE SHAFT SPRING, front

1шт.

27

41339D

KEY

VALVE SPRING SEAT KEY

16шт.

28

46206D

SEAT

VALVE SPRING SEAT

8шт.

29

46205DA

SPRING

VALVE SPRING

8шт.

31

8198DR

GUIDE

VALVE GUIDE

8шт.

32

46203DD

VALVE

INTAKE VALVE

4шт.

32

46204DD

EXHAUST VALVE

4шт.

Ref. 32 in 3270 the part that is the same as a 46204dd is a 46204de.

1шт.

33

46210D

STARTING VALVE COVER (Order four covers, 250535R1 and shaft, 256102R93) (S/N FDBKM, Serial Range: 501-3720)

4шт.

33

250535R1

COVER

STARTING VALVE COVER (S/N FDBKM 3721 up)

4шт.

34

46209D

BUCKET TOOTH KEY

STARTING VALVE SPRING SEAT KEY

8шт.

35

46208D

STARTING VALVE SPRING SEAT

4шт.

36

46211D

VALVE SPRING

STARTING VALVE SPRING

4шт.

37

8744DR

STARTING VALVE GUIDE

4шт.

38

46207DA

VALVE

STARTING VALVE

4шт.

39

55999D

HYD CONNECTOR,9/16"-20

CYLINDER HEAD BREATHER PIPE UNION (Air cleaner end)

1шт.

40

55999DX

UNION

CYLINDER HEAD BREATHER PIPE UNION WITH 2 COUPLING NUTS, 37165D

1шт.

41

222-504

TUBE NUT,9/16"-20

COUPLING NUT

3шт.

42

60928DX

CYLINDER HEAD BREATHER PIPE WITH 2 COUPLING NUTS, 37165D

1шт.

43

57736DX

CYLINDER HEAD BREATHER PIPE ELBOW WITH NUT, 37165D

1шт.

43a

57736D

CYLINDER HEAD BREATHER PIPE ELBOW

1шт.

44

52139D

CYLINDER HEAD BREATHER PIPE

1шт.

45

52013D

NOZZLE BODY RETAINER STUD (S/N FDBKM, Serial Range: 501-14500)

8шт.

45

260871R1

STUD

NOZZLE BODY RETAINER STUD (S/N FDBKM 14501 up)

8шт.

46

52012D

VALVE LEVER BRACKET STUD, intermediate

2шт.

103026

NUT,3/8"-24, G5

2шт.

48

42739DA

STUD

STARTING VALVE SHAFT OPERATING LEVER PIN

2шт.

102024

NUT

HEX NUT, 1/4" N.F.

2шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

LOCKWASHER, 1/4" (Shakeproof) (Same as 2853Y)

2шт.

49

271597R91

BUSHING

STARTING VALVE SHAFT OIL SEAL

1шт.

49a

114604

LOCK WASHER,Ext Tooth, 1/4"

FOLLOWS REFERENCE NO. 48

1шт.

50

52020D

STARTING VALVE SHAFT OPERATING LEVER (S/N FDBKM, Serial Range: 501-16662)

1шт.

50

260938R1

STARTING VALVE SHAFT OPERATING LEVER (S/N FDBKM 16663 up)

1шт.

51

51195D

STARTING VALVE OPERATING SHAFT

1шт.

52

52745D

STARTING VALVE OPERATING SHAFT LEVER, outer

1шт.

53

46198D

STUD

VALVE LEVER BRACKET STUD, center, outer

3шт.

103026

NUT,3/8"-24, G5

3шт.

54

46200D

VALVE LEVER BRACKET STUD, short, center and intermediate

3шт.

103026

NUT,3/8"-24, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

55

32445D

STUD

VALVE LEVER BRACKET STUD, short, outer

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

56

46202D

STUD

MANIFOLD STUD (S/N FDBKM, Serial Range: 501-14500)

10шт.

220067

PIPE

HEX NUT, 7/16"

10шт.

56

260870R1

STUD

MANIFOLD STUD (S/N FDBKM 14501 up)

10шт.

260872R1

NUT

MANIFOLD STUD NUT

10шт.

57

50410DA

PLUG

OIL HEADER PLUG

1шт.

58

256659R1

CYLINDER HEAD EXPANSION PLUG, 1" (Bronze) (Will work for 23007V) (Optional with 172545)

2шт.

58

41-16

PLUG,Exp, 1"

CYLINDER HEAD EXPANSION PLUG, 1" (Steel) (Optional with 256659R1)

2шт.

59

8228DCY

CYLINDER HEAD, complete with valves and springs (S/N FDBKM, Serial Range: 501-1772)

1шт.

59

8228DGX

CYLINDER HEAD WITH STUDS AND VALVE GUIDES, complete (S/N FDBKM, Serial Range: 1773-14500)

1шт.

59

260869R51

CYLINDER HEAD WITH STUDS AND VALVE GUIDES, complete (S/N FDBKM 14501 up)

1шт.

3066422R1

PLUG

PIPE PLUG, 3/8" countersunk headless

4шт.

116566

PLUG

PIPE PLUG, 1/2" countersunk headless

6шт.

59

62336DB

CYLINDER HEAD WITH STUDS, valve guides, 8228DGX and cylinder head gasket, 53436DD (Will work for 8228DCX) (S/N FDBKM, Serial Range: 501-1772)

1шт.

60

305805R1

GASKET

CYLINDER HEAD GASKET

1шт.

50678D

STARTING VALVE SHAFT PUSH ROD (S/N FDBKM, Serial Range: 501-16662)

1шт.

52141D

VALVE OILER PAD (S/N FDBKM, Serial Range: 501-19165)

1шт.

261339R92

STRIPPER PACKAGE

CYLINDER HEAD REPLACEMENT GASKET PACKAGE

1шт.
