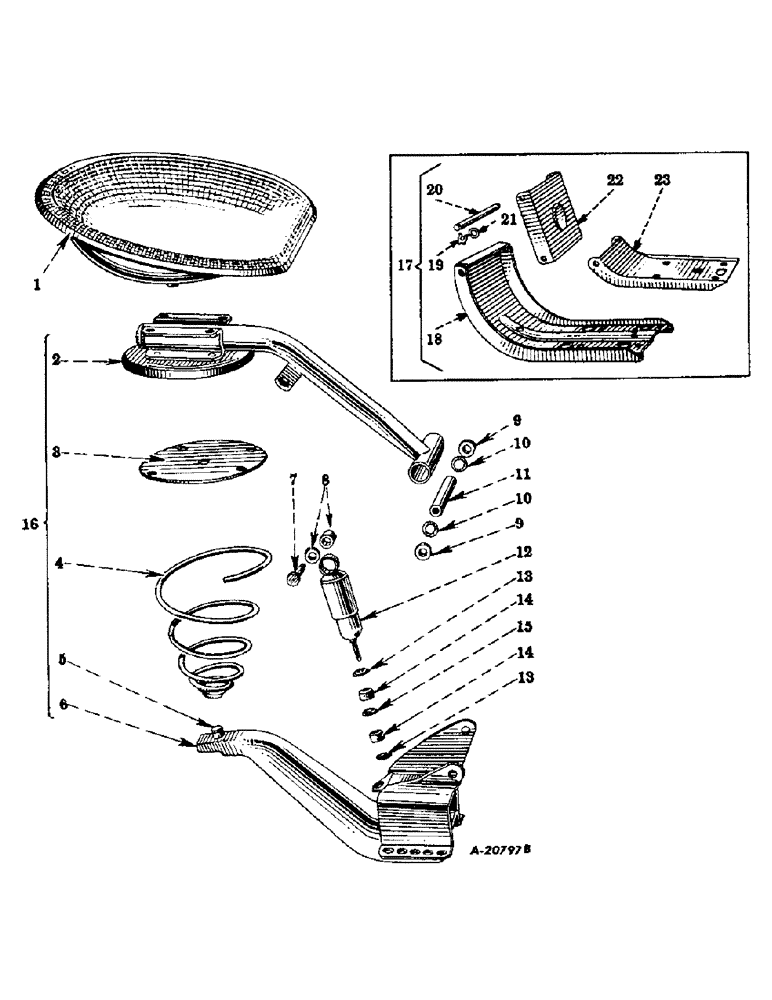

Запчасти Case IH FARMALL MDV (263) - CHASSIS, HYDRAULIC SEAT, SPECIAL (12) - CHASSIS

351928R97

HYDRAULIC SEAT ATTACHMENT (S/N 9287 up)

1шт.

1

357518R91

DRIVER SEAT

DELUXE UPHOLSTERED SEAT (Will work for 351925R92 and 354155R92)

1шт.

2

352644R91

SEAT SUPPORT (S/N, Serial Range: 9287-165270)

1шт.

2

353202R91

SEAT SUPPORT (S/N 165271 up)

1шт.

181393

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5

CAP SCREW, 7/16 x 3/4" N.F. hex head

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

3

352649R1

SEAT SPRING NOISE DAMPENER PAD

1шт.

4

354671R2

SPRING

CONICAL SPRING (3 identifying notches) (For light weight operators) (Special)

1шт.

4

352598R2

SPRING

CONICAL SPRING (4 identifying notches) (For medium weight operators) (Standard)

1шт.

4

354670R2

VALVE SPRING

CONICAL SPRING (5 identifying notches) (For heacy weight operators) (Special)

1шт.

5

352646R1

SEAT SPRING SEAT

1шт.

6

352645R91

SEAT SUPPORT BRACKET WITH SPRING SEAT, 352646R1 (S/N, Serial Range: 9287-165270)

1шт.

6

353203R91

SEAT SUPPORT BRACKET WITH SPRING SEAT, 352646R1 (S/N 165271 up)

1шт.

179927

SCREW,Hex, 5/18" - 11 x 1 1/2"

CAP SCREW, 5/8 x 1-1/2" N.C. hex head

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

351751R1

BOLT,7/16" - 20 x 2 7/32"

SHOCK ABSORBER MOUNTING PIN (2 used) (S/N, Serial Range: 9287-165270)

1шт.

425-117

NUT,7/16"-20, G5

HEX NUT, 7/16" N.F.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

72696R1

SHOCK ABSORBER

MOUNTING PIN BUSHING (Rubber) (4 used) (Will work for 250416R1) (S/N, Serial Range: 9287-165270)

2шт.

9

72696R1

SHOCK ABSORBER

SEAT SUPPORT PIVOT ROD BUSHING (Rubber) (Will work for 250416R1)

2шт.

10

352650R1

WASHER,15.93mm ID x 23.02mm OD x 2.38mm Thk

SEAT PIVOT TUBE WASHER

2шт.

11

352648R1

PIN

SEAT SUPPORT PIVOT ROD

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

CAP SCREW, 1/2 x 1" N.F. hex head

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

352587R92

SHOCK ABSORBER

(S/N, Serial Range: 9287-165270)

1шт.

12

353204R93

SHOCK ABSORBER

(S/N 165271 up)

1шт.

103026

NUT,3/8"-24, G5

1шт.

REF 12 352587R92 NOTE STATES: SHOCK HAS BUSHINGS ON BOTH ENDS. IF YOU NEED ONE W/BUSHING ON ONE END AND STUD ON THE OTHER THE PART NUMBER IS 353204R93. CNS/CAM 8/5/98

1шт.

13

353206R1

RETAINER

SHOCK ABSORBER CUSHION RETAINER

2шт.

14

353205R1

CUSHION

SHOCK ABSORBER CUSHION

2шт.

15

353207R1

WASHER

SHOCK ABSORBER CUSHION GUIDE WASHER

1шт.

16

351932R91

SEAT SUSPENSION, complete (S/N, Serial Range: 9287-165270)

1шт.

16

353169R93

SEAT SUSPENSION, complete (S/N 165271 up)

1шт.

17

356890R93

TILT BACK SEAT BRACKET, attachment (For hydraulic seat) (Composed of bracket, 356891R93, complete) nut, 271500, screw, 179856, and washer, 103322)

1шт.

17

356891R94

TILT BACK SEAT BRACKET

1шт.

18

356897R4

SEAT ADJUSTMENT BRACKET

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

CAP SCREW, 7/16 N.C. x 3/4" hex head

4шт.

NLS

NO LONGER SERVICED

HEX NUT, 7/16" N.C.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

19

356893R1

"X" WASHER

4шт.

20

356892R2

PIN

HINGE PIN

2шт.

21

80158H

WASHER

SPACER

2шт.

22

356895R2

SUPPORT

HINGE

1шт.

23

356896R2

SEAT RETAINER

1шт.

351438R93

PAD

DETACHABLE SEAT PAD (Rubber)

1шт.

359483R91

PAD

DETACHABLE SEAT PAD (Jute)

1шт.

351922R11

LEVER

STARTING SWITCH ACTUATING LEVER (Illustrated with steering mechanism)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

351924R1

STARTING SWITCH ACTUATOR LEVER BRACKET (Illustrated with steering mechanism)

1шт.

181348

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 5

CAP SCREW, 5/16 x 2-1/4" N.F. hex head

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

352118R1

PLOW TRIP ROPE CLIP

1шт.

271500

SOCKET

HEX NUT, 7/16" N.C.

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

CAP SCREW, 7/16 x 3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
