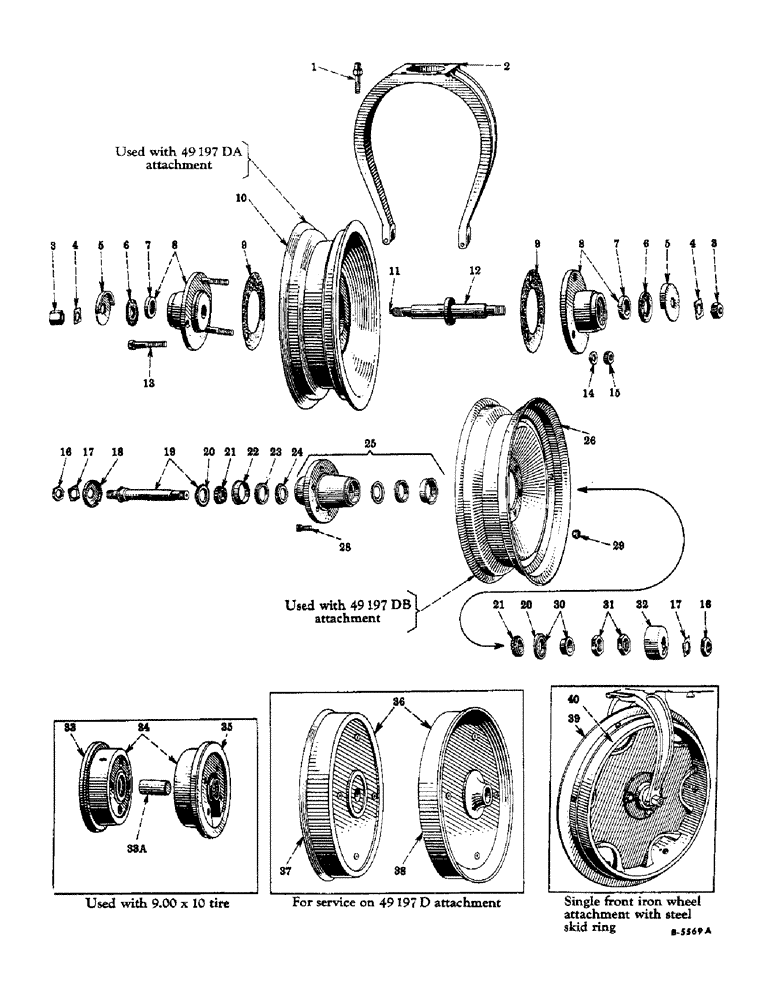

Запчасти Case IH FARMALL MDV (214) - CHASSIS, SINGLE FRONT WHEEL, PNEUMATIC TIRE, SPECIAL (12) - CHASSIS

49197DB

SINGLE FRONT WHEEL (Pneumatic tire) attachment (For 7.50 x 16 tire)

1шт.

49199DB

SINGLE FRONT WHEEL (Pneumatic tire) attachment (For 9.00 x 10 tire)

1шт.

1

49195DA

STEERING STOP BOLT

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

352536R1

NUT

STEERING STOP BOLT NUT (Will work for 117054)

1шт.

2

5676D

FRONT BOLSTER FORK (For 7.50 to 18 tire)

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

2шт.

271635

CYLINDER

CAP SCREW, 3/4 x 2-1/4" N.F. hex head

2шт.

114774

HEX NUT, 1/2" N.C.

2шт.

218197

NUT,3/4"-16, G5

HEX NUT, 3/4" N.F.

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

8298DB

FRONT BOLSTER FORK (For 7.50 x 16 or 9.00 x 10 tire) (Also single iron front wheel)

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

2шт.

271635

CYLINDER

CAP SCREW, 3/4 x 2-1/4" N.F. hex head

3шт.

102637

NUT,1/2"-13, G5

2шт.

352536R1

NUT

HEX NUT, 3/4" N.F. (Special)

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

3

218408

NUT

FOLLOWS REFERENCE NO. 12

1шт.

4

38916D

LOCK WASHER

FRONT AXLE NUT LOCKWASHER

2шт.

5

38915DX

FRONT WHEEL HUB SHIELD WITH LOCK

2шт.

6

38914D

FRONT WHEEL FELT WASHER

2шт.

7

273581R91

SEAL

FRONT WHEEL OIL SEAL (Will work for 21969D)

2шт.

8

8297DX

FRONT WHEEL HUB WITH OIL SEAL, 273581R91

2шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

CAP SCREW, 5/8 x 3-1/2" N.C. hex head

3шт.

114820

HEX NUT, 5/8" N.C.

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

52874D

FRONT WHEEL HUB GASKET (For hub, 8297DX)

2шт.

10

8295D

FRONT WHEEL (For 7.50 x 16 tire)

1шт.

11

126132

FITTING

FRONT AXLE LUBRICATOR (Optional with 273349) (Same as 45959D)

1шт.

11

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FRONT AXLE LUBRICATOR (Optional with 126132) (Same as HA59602)

1шт.

12

38917DA

FRONT AXLE

1шт.

218408

NUT

HEX NUT, 1-1/4" N.F.

2шт.

13

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

FOLLOWS REFERENCE NO. 8

1шт.

14

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Follows ref #8 5/8"

1шт.

15

114820

FOLLOWS REFERENCE NO. 8

1шт.

16

218197

NUT,3/4"-16, G5

FOLLOWS REFERENCE NO. 19

1шт.

17

38916D

LOCK WASHER

FRONT AXLE NUT LOCKWASHER

2шт.

18

351419R11

PROTECTOR

FRONT WHEEL HUB SHIELD, short

1шт.

19

351417R11

FRONT AXLE WITH OIL SEAL, 48539DA

1шт.

218197

NUT,3/4"-16, G5

HEX NUT, 1-1/4" N.F.

2шт.

20

48539DA

PACKING RING

FRONT AXLE OIL SEAL

2шт.

21

ST2048

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

FRONT WHEEL INNER BEARING CONE

2шт.

22

48548D

WASHER

FRONT WHEEL OIL SEAL RETAINER

2шт.

23

13822V

BEARING

FRONT WHEEL BEARING CUP

2шт.

24

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

FRONT WHEEL BEARING GREASE RETAINER

2шт.

25

351398R21

FRONT WHEEL HUB, complete (Will work for 351398R12 providing six bolts, 358134R1 are used)

1шт.

26

354195R91

WHEEL

FRONT WHEEL (Optional with 357005R91)

1шт.

26

357005R91

FRONT WHEEL (Optional with 354195R91)

1шт.

28

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

CAP SCREW, 9/16-18 x 1-3/4" N.F. hex-hd. cd. pltd. (Used with 351398R12)

6шт.

28

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

FRONT WHEEL MOUNTING BOLT (Sq-hd.) (Used with 351398R21)

6шт.

29

351793R1

WHEEL NUT

FRONT WHEEL MOUNTING NUT

6шт.

30

351416R11

FRONT WHEEL BEARING SPACER WITH OIL SEAL, 48539DA

1шт.

31

351418R1

BEARING LOCK NUT

FRONT WHEEL BEARING ADJUSTING NUT

2шт.

32

351420R11

PROTECTOR

FRONT WHEEL HUB SHIELD, long

1шт.

33

5677DAX

FRONT WHEEL, male half with bushing, 359341R91 and oil seal, 273581R91 (For 9.00 x 10 tire)

1шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

CAP SCREW, 5/8 x 7" N.C. hex head

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

33a

359341R91

FRONT WHEEL BUSHING (Not used with 5677DX and 5678DX)

1шт.

34

42989D

FRONT WHEEL, less tire (For 9.00 x 10 tire)

1шт.

35

5678DAX

FRONT WHEEL, female half with bushing, 359341R91 and oil seal, 273581R91 (For 9.00 x 10 tire)

1шт.

36

42311D

FRONT WHEEL, less tire (For 7.50 x 18 tire)

1шт.

37

5603DX

FRONT WHEEL, male half with one oil seal, 273581R91 (For 7.50 x 18 tire)

1шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

CAP SCREW, 5/8 x 3-1/2" N.C. hex head

4шт.

114820

HEX NUT, 5/8" N.C.

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

38

5604DX

FRONT WHEEL, female half with one oil seal, 273581R91 (For 7.50 x 18 tire)

1шт.

39

9681D

SINGLE FRONT WHEEL (Iron), single front (Iron) wheel attachment - special

1шт.

40

67881D

FRONT WHEEL SKID RING, single front (Iron) wheel attachment - special

1шт.

13338R1

MACHINE BOLT, 1/2 x 2" N.C., single front (Iron) wheel attachment - special

7шт.

114774

HEX NUT, 1/2" N.C., single front (Iron) wheel attachment - special

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Single front (Iron) wheel attachment - special 1/2"

7шт.
