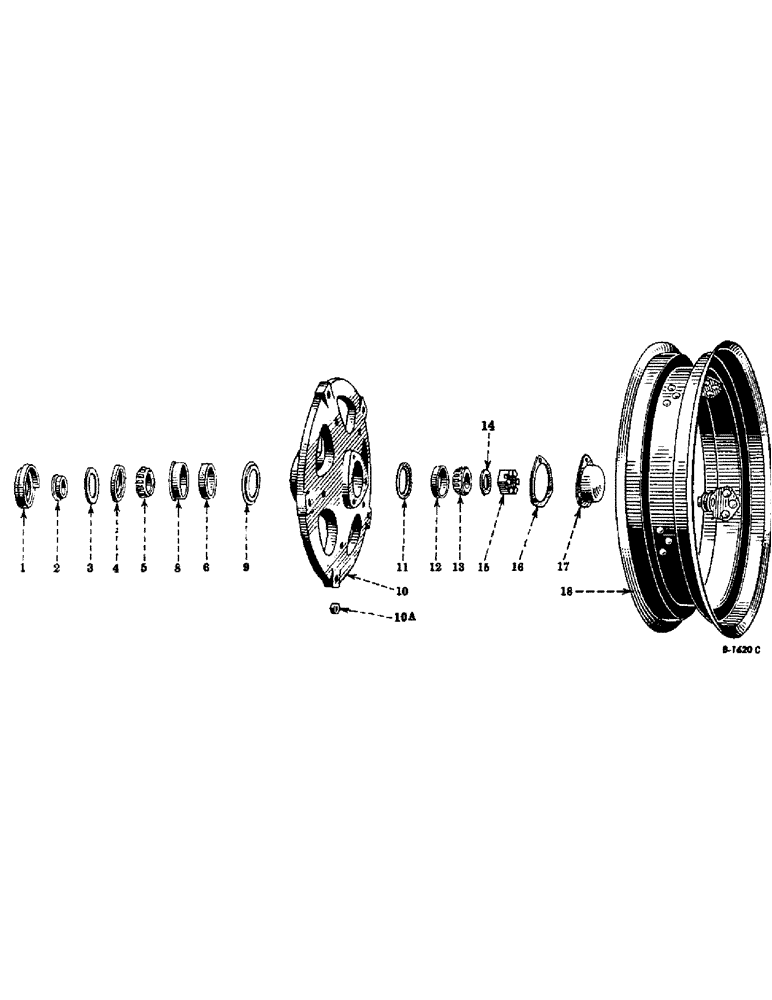

Запчасти Case IH FARMALL MDV (212) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, "MV" AND "MDV" (12) - CHASSIS

354897R92

FRONT WHEEL AND RIM, complete (Variable tread) (Note A)

2шт.

1

48701D

SHIELD

FRONT WHEEL DUST SHIELD

2шт.

2

51901D

SPACER

FRONT WHEEL BEARING SPACER

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

FRONT WHEEL FELT WASHER (Not used with triple lip design oil seal 48704DA)

2шт.

4

48704DA

OIL SEAL

FRONT WHEEL OIL SEAL

2шт.

5

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

FRONT WHEEL INNER BEARING CONE

2шт.

6

ST882

CUP

FRONT WHEEL INNER ROLLER BEARING CUP

2шт.

8

48703D

RETAINER

FRONT WHEEL FELT WASHER RETAINER

2шт.

9

60290DA

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, inner

2шт.

10

9504DXB

FRONT WHEEL, complete (Variable tread) (Note A)

2шт.

181779

CAP SCREW, 5/8" x 2-1/2" N.F. hex head

10шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

STEEL WASHER, 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

10шт.

10a

352777R1

NUT

FRONT WHEEL RIM MOUNTING NUT (Cadmium plated)

10шт.

11

60291D

RETAINER

FRONT WHEEL BEARING GREASE RETAINER, outer

2шт.

12

ST869

CUP ASSY.

FRONT WHEEL OUTER ROLLER BEARING CUP (Used with wheel, 9504DXA)

2шт.

12

456200R1

CUP

FRONT WHEEL OUTER ROLLER BEARING CUP (Used with wheel, 9504DXB)

2шт.

13

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

FRONT WHEEL OUTER ROLLER BEARING CONE (Used with wheel, 9504DXA)

2шт.

13

365433R91

BEARING

FRONT WHEEL OUTER ROLLER BEARING CONE (Used with wheel, 9504DXB)

2шт.

14

353838R1

WASHER

FRONT WHEEL OUTER BEARING RETAINER WASHER (S/N FBKV 212948 up)

2шт.

(S/N FDBKV 206914 up)

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

15

6245D

NUT

FRONT WHEEL OUTER BEARING RETAINER NUT (Order nut, 427642 and washer, 353838R1) (S/N FBKV, Serial Range: 501-212947)

2шт.

(S/N FDBKV, Serial Range: 501-206913)

2шт.

15

427642

SLOTTED NUT,7/8"-9, G5

SLOTTED HEX NUT, 7/8" N.C. (With washer, 353838R1 will work for 6245D) (S/N FBKV 501 to 212947)

2шт.

(S/N FDBKV, Serial Range: 501-206913)

2шт.

15

361138R1

NUT

SLOTTED HEX NUT, 7/8" N.F. (S/N FBKV 212948 up)

2шт.

(S/N FDBKV 206914 up)

2шт.

16

48547D

GASKET

FRONT WHEEL HUB CAP GASKET

2шт.

17

48546DB

CAP

FRONT WHEEL HUB CAP

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

65167D

FRONT WHEEL RIM (4.50 E X 20 DC for 6.00 x 20 tire)

2шт.
