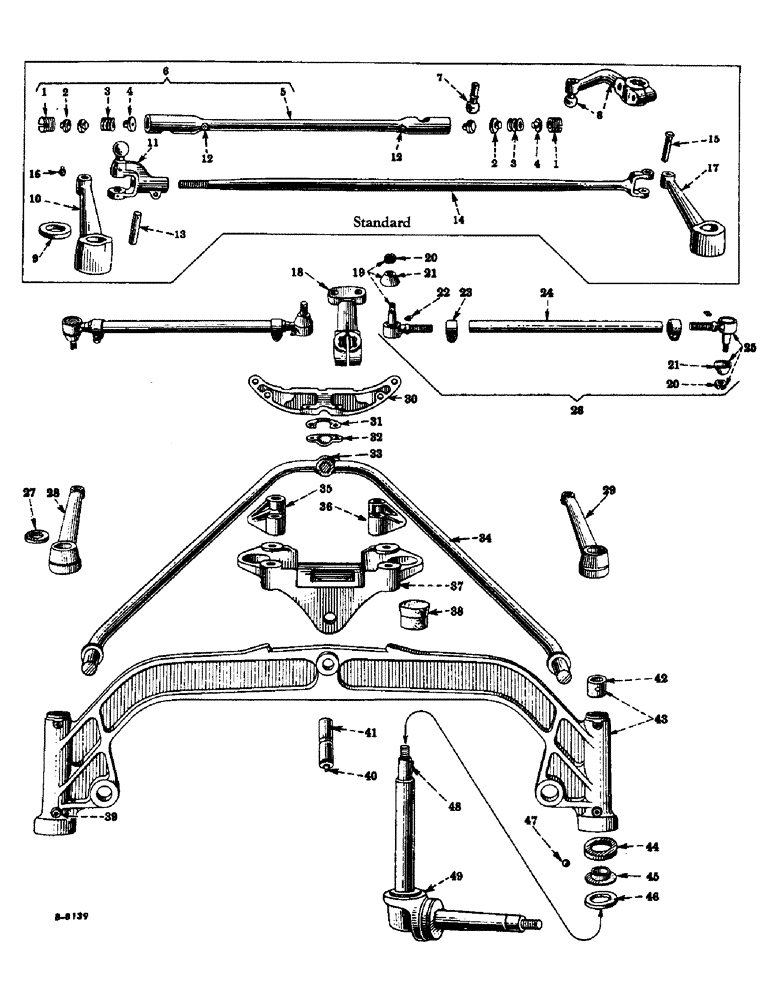

Запчасти Case IH FARMALL MDV (202) - CHASSIS, FRONT AXLE, BOLSTER AND STEERING CONNECTIONS, FARMALL "MV" AND "MDV" (12) - CHASSIS

1

10823D

DRAG LINK NUT

2шт.

used with 65091DY.

1шт.

1

66294H

DRAG LINK NUT

2шт.

used with 357810R91.

1шт.

2

10824D

DRAG LINK BALL SEAT

4шт.

used with 65091DY.

1шт.

2

66290H

SEAT

DRAG LINK BALL SEAT

4шт.

used with 357810R91.

1шт.

3

10825D

DRAG LINK SPRING

2шт.

used with 65091DY.

1шт.

3

66292H

DRAG LINK SPRING

2шт.

used with 357810R91.

1шт.

4

12333D

DRAG LINK SAFETY PLUG

2шт.

used with 65091DY.

1шт.

4

66293H

DRAG LINK SAFETY PLUG

2шт.

used with 357810R91.

1шт.

5

65091DX

DRAG LINK

1шт.

used with 65091DY.

1шт.

5

357809R1

DRAG LINK

1шт.

used with 357810R91.

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

6

65091DY

DRAG LINK, complete (Steel tubing type) (Optional with 357810R91)

1шт.

6

357810R91

DRAG LINK, complete (Solid round bar type) (Optional with 65091DY)

1шт.

7

12329DA

BALL

STEERING GEAR ARM BALL

1шт.

8

9497DAXA

STEERING GEAR ARM WITH BALL, 12329DA

1шт.

179935

BOLT

CAP SCREW, 5/8 x 3" N.C. hex head

2шт.

114820

HEX NUT, 5/8" N.C.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

65087D

STEERING KNUCKLE ARM RETAINING WASHER

2шт.

10

9496DA

STEERING KNUCKLE ARM, R.H.

1шт.

11

3131DB

TIE ROD CLEVIS (S/N FBKV, Serial Range: 501-192017)

1шт.

11

353334R1

TIE ROD CLEVIS (S/N FBKV 192018 up)

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

CAP SCREW, 3/8 x 1-5/8" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

DRAG LINK LUBRICATOR (Alemite) (Optional with 109461) (Same as 14186DA)

2шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

DRAG LINK LUBRICATOR (Lincoln) (Optional with 119512) (Same as Q3615)

2шт.

13

65090D

TIE ROD CLEVIS PIN

1шт.

14

353430R91

STEERING TIE ROD AND ADJUSTABLE CLEVIS, complete (Will work for 65089DX) (FBKV, Serial Range: 501-192017)

1шт.

14

353420R11

TIE ROD WITH CLEVIS (S/N FBKV 192018 up)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

15

10565DA

TIE ROD CLEVIS PIN

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING KNUCKLE ARM LUBRICATOR (Alemite) (Optional with 109461) (Same as 14186DA)

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING KNUCKLE ARM LUBRICATOR (Lincoln) (Optional with 119512) (Same as Q3615)

2шт.

17

9495DA

STEERING KNUCKLE ARM, L.H.

1шт.

18

358348R1

STEERING GEAR ARM

1шт.

Part is used only in field improvement package

1шт.

181488

CAP SCREW, 5/8-18 x 3" N.F. hex head

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

358352R91

TIE ROD END, with cover, 358900R1 and nut, 358901R1 (L.H. thread)

2шт.

Part is used only in field improvement package

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

20

358901R91

TIE ROD END NUT (5/8-18 N.F.)

4шт.

Part is used only in field improvement package

1шт.

21

358900R1

SEAL

DUST COVER

4шт.

Part is used only in field improvement package

1шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUBRICATION FITTING, 1/8" straight (Tie rod) (Lincoln) (Optional with 119512)

4шт.

Part is used only in field improvement package

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATION FITTING, 1/8" straight (Tie rod) (Alemite) (Optional with 109461)

4шт.

Part is used only in field improvement package

1шт.

23

358354R1

TIE ROD CLAMP

4шт.

Part is used only in field improvement package

1шт.

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

CAP SCREW, 1/2-20 x 1-7/8" N.F. hex head

4шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2-20 N.F.

4шт.

24

358351R1

TIE ROD TUBE 1.125" OD, 18.25" Length

2шт.

Part is used only in field improvement package

1шт.

25

358353R92

TIE ROD END, with cover, 358900R1 and nut, 358901 (R.H. thread)

2шт.

Part is used only in field improvement package

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

26

358347R92

TIE ROD, assembly

2шт.

Part is used only in field improvement package

1шт.

27

65087D

STEERING KNUCKLE ARM RETAINING WASHER

2шт.

Part is used only in field improvement package

1шт.

28

358349R1

STEERING KNUCKLE ARM, L.H.

1шт.

Part is used only in field improvement package

1шт.

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

no. 24

1шт.

29

358350R1

STEERING KNUCKLE ARM, R.H.

1шт.

Part is used only in field improvement package

1шт.

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

no. 24

1шт.

30

9517DB

STAY ROD BALL SOCKET

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

CAP SCREW, 3/4 x 3-1/4" N.C. hex head

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q1551

WASHER, PLAIN, 25/32" I.D. x 1-1/8" O.D. x no. 10 ga.

1шт.

31

60762D

SHIM

STAY ROD BALL SOCKET CAP SHIM

4шт.

32

60763DB

CYLINDER END CAP

STAY ROD BALL SOCKET CAP

1шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

CAP SCREW, 1/2 x 1-3/4" N.F. hex head

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

10546D

BALL

STAY ROD BALL

1шт.

34

65126DX

STAY ROD WITH BALL, 10546D ("MV" only) (S/N FBKV, Serial Range: 501-297107)

1шт.

34

356603R11

STAY ROD WITH BALL, 10546D ("MV" only) (S/N FBKV 297108 up)

1шт.

128127

GUIDE

HEX NUT, 1-1/2" N.F.

2шт.

118029

LOCKWASHER, 1-1/2"

2шт.

34

65194DX

STAY ROD WITH BALL, 10546D ("MDV" only) (S/N FDBKV, Serial Range: 501-298157)

1шт.

34

356604R11

STAY ROD WITH BALL, 10546D ("MDV" only) (S/N FDBKV 298158 up)

1шт.

35

9500D

LOWER BOLSTER SPACER, R.H.

1шт.

36

9499D

LOWER BOLSTER SPACER, L.H.

1шт.

37

9493DA

LOWER BOLSTER (S/N FBKV, Serial Range: 501-297107)

1шт.

37

356606R1

LOWER BOLSTER (S/N FBKV 297108 up)

1шт.

(S/N FDBKV 298158 up)

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

CAP SCREW, 3/8 x 3-3/4" N.C. hex head

2шт.

179961

CAP SCREW, 3/4 x 4-1/4" N.C. hex head

2шт.

16161R1

CAP SCREW, 3/4 x 5-1/2" N.C. hex head

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

38

12522D

FRONT AXLE RUBBER BUMPER

2шт.

39

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING KNUCKLE PIVOT LUBRCATOR (1/8" straight) (Lincoln) (Optional with 119512) (Same as Q3615)

4шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING KNUCKLE PIVOT LUBRICATOR (1/8" straight) (Alemite) (Optional with 109461) (Same as 14186DA)

4шт.

40

Q3673

FITTING

FRONT AXLE PIVOT LUBRICATOR (1/8 x 45 degree elbow) (Lincoln) (Optional with 36177D)

1шт.

40

36177D

FRONT AXLE PIVOT LUBRICATOR (1/8 x 45 degree elbow) (Alemite) (Optional with Q3673)

1шт.

41

65084D

FRONT AXLE PIVOT

1шт.

42

353267R1

STEERING KNUCKLE PIVOT, BUSHING (Will work for 55236D)

2шт.

43

65083DBX

FRONT AXLE WITH 2 BUSHINGS, 353267R1 (For "MV" order 357376R91 together with lower bolster, 356606R1 and stay rod, 356603R11 with ball) (S/N FBKV, Serial Range: 501-297107)

1шт.

(For "MDV" order 357376R91 together with lower bolster, 356606R1 and stay rod, 356604R11 with ball) (S/N FDBKV, Serial Range: 501-298157)

1шт.

43

356607R11

FRONT AXLE WITH FOUR BUSHINGS, 353267R1 (Order 357376R91) (S/N FBKV 297108 up)

1шт.

(S/N FDBKV 298158 up)

1шт.

44

59836D

BEARING

STEERING KNUCKLE PIVOT BEARING OUTER RACE

2шт.

45

55413D

FLANGE

STEERING KNUCKLE PIVOT BEARING INNER RACE

2шт.

46

55412D

WASHER

STEERING KNUCKLE PIVOT FELT WASHER

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

47

D2616

BALL

STEERING KNUCKLE PIVOT BEARING BALLS (3/8" chrome steel) (Same as 1110C)

40шт.

48

19961D

STEERING KNUCKLE ARM KEY (Woodfuff no. 24)

2шт.

49

65085DA

STEERING KNUCKLE, complete (Order 65085DC together with washer, 353838R1 and nut, 102652) (S/N FBKV, Serial Range: 501-212947)

2шт.

49

65085DC

STEERING KNUCKLE, complete (Together with washer, 353838R1 and nut, 102652 will work for 65085DA) (S/N FBKV 212948 up)

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

115781

NUT

HEX JAM NUT, 1" N.F.

2шт.

121326

WASHER,1"

LOCK, (Special light) 1"

2шт.

357376R91

FRONT AXLE WITH BUSHING AND BEARINGS SERVICE PACKAGE (Will work for 356607R11) (S/N FBKV 297108 up)

1шт.

(S/N FDBKV 298158 up)

1шт.

(Will work for 65083DBX, if lower bolster 356606R1 and stay rod, 356603R11 with ball are also ordered on "MV") (S/N FBKV 501 to 297107 up)

1шт.

(Will work for 65083DBX, if lower bolster 356606R1 and stay rod, 356604R11 with ball are also ordered on "MDV") (S/N FDBKV, Serial Range: 501-298157)

1шт.
