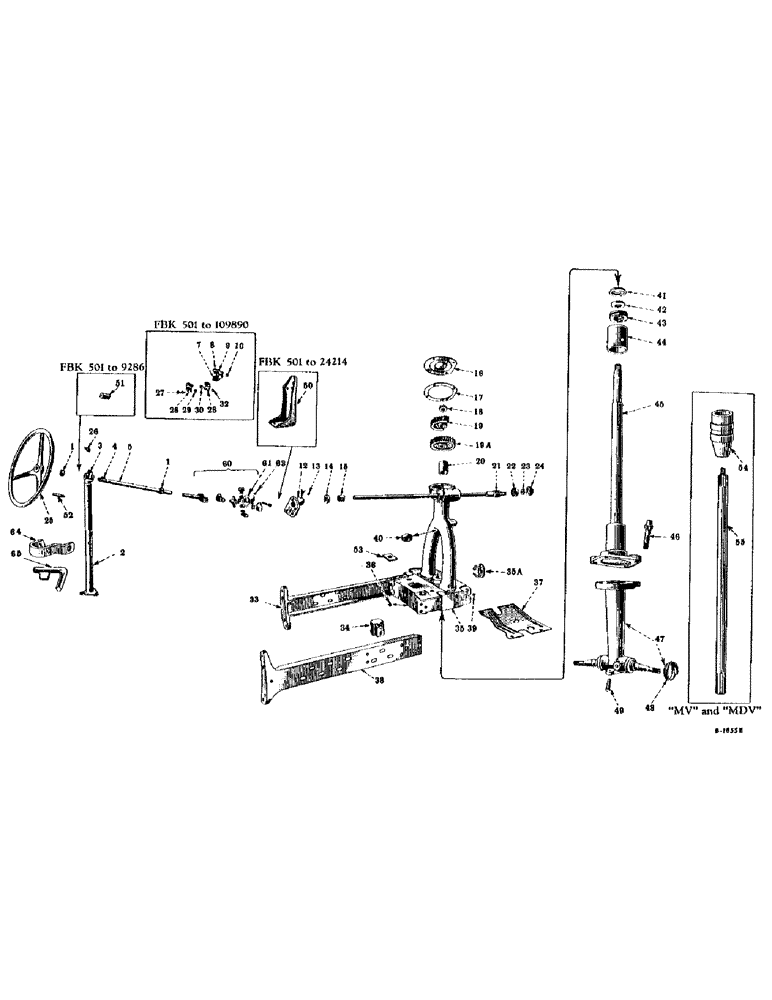

Запчасти Case IH FARMALL MDV (195) - CHASSIS, STEERING MECHANISM, UPPER AND LOWER BOLSTERS AND FRONT FRAME CHANNELS (12) - CHASSIS

1

51444DA

COLLAR

STEERING SHAFT REAR BEARING SPACER

2шт.

84-55

SET SCREW,Hex Soc, 5/16"-24 x 5/16"

HOLLOW SET SCREW, 5/16 x 5/16" N.F. (Cup point)

4шт.

2

51143DXA

STEERING POST, complete ("M" and "MDV") (S/N FBK, Serial Range: 501-9286)

1шт.

179858

SUPPORT

CAP SCREW, 7/16 x 1" N.C. hex head

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

2

352968R92

STEERING POST, complete (Will work for 54507DBX and 54516DB) ("M" and "MV") (S/N FBK 9287 up)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

352967R92

STEERING POST WITH BASE ("M" and "MV") (S/N FBK 158645 up)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

352972R92

STEERING POST, complete (Will work for 60916DBX and 60917DB) ("MD" and "MDV")

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

352971R92

STEERING POST WITH BASE ("MD" and "MDV") (S/N FDBK 165861 up)

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

CAP SCREW, 7/16 x 1-3/8" N.C. hex head

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

8562DX

STEERING SHAFT REAR BEARING WITH RIVET, 104091 ("M" and "MV") (S/N FBK, Serial Range: 9287-158644)

1шт.

3

352965R11

BEARING

STEERING SHAFT REAR BEARING WITH RIVET, 104091 ("M" and "MV") (S/N FBK 158645 up)

1шт.

3

8562DY

STEERING SHAFT REAR BEARING WITH RIVET, 104091 AND LUBRICATOR, Q3615 OR 14186DA ("M" only) (S/N FBK, Serial Range: 501-9286)

1шт.

3

9123DX

STEERING SHAFT REAR BEARING WITH RIVET, 104091 ("MD" and "MDV") (S/N FDBK, Serial Range: 501-165860)

1шт.

3

352969R11

STEERING SHAFT REAR BEARING WITH RIVET, 104091 ("MD" and "MDV") (S/N FDBK 165861 up)

1шт.

4

7235T

KEY

STEERING WHEEL KEY

1шт.

5

50054DAXA

STEERING SHAFT REAR, complete (Order 63099DA) (S/N FBK, Serial Range: 501-55056)

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

SLOTTED HEX JAM NUT, 3/4" N.F.

1шт.

5

63088D

SHAFT

STEERING SHAFT, rear, with universal joint fork and pin (Order 63099DA) (S/N FBK, Serial Range: 55057-109890)

1шт.

114499

SLOTTED HEX JAM NUT, 3/4" N.F.

1шт.

5

350358R91

STEERING SHAFT AND YOKE, REAR (S/N FBK 109891 up)

1шт.

219753

BACK-UP RING

HEX JAM NUT, 3/4" N.F.

1шт.

7

48606DA

STEERING UNIVERSAL JOINT PIN (S/N FBK, Serial Range: 501-14923)

3шт.

8

52895DA

STEERING UNIVERSAL JOINT LUBRICATING PIN (S/N FBK, Serial Range: 501-14923)

1шт.

8

66584D

FITTING

STEERING UNIVERSAL JOINT LUBRICATOR (S/N, Serial Range: 55057-109890)

1шт.

9

6944DAXB

STEERING UNIVERSAL JOINT FORK, front with pin, 48606DA and pin, 52895DA (Order 63099DA) (S/N FBK, Serial Range: 501-55056)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

9318DX

STEERING UNIVERSAL JOINT FORK FRONT WITH PIN AND LUBRICATOR, 66584D (Order 63099DA) (S/N FBK, Serial Range: 55057-109890)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

41116D

KEY

STEERING UNIVERSAL JOINT FORK, front, key (S/N FBK, Serial Range: 501-109890)

1шт.

12

8099D

STEERING SHAFT CENTER BEARING ("M" and "MV") (S/N FBK, Serial Range: 501-24214)

1шт.

NLS

NO LONGER SERVICED

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

9098DA

SUPPORT

STEERING SHAFT CENTER BEARING ("M" and "MV") (S/N FBK 24215 up)

1шт.

179842

SPACER

CAP SCREW, 3/8 x 1-3/8" N.C. hex head

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

280136

NUT,3/8"-16, G8

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

9124DA

STEERING SHAFT CENTER BEARING ("MD" and "MDV")

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

280136

NUT,3/8"-16, G8

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING SHAFT CENTER BEARING LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING SHAFT CENTER BEARING LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

14

364468R91

SEAL

STEERING WORM SHAFT OIL SEAL (Will work for 43800DA)

1шт.

15

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

STEERING WORK BUSHING

1шт.

16

48951DX

STEERING WORM GEAR HOUSING COVER

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

LOCKWASHER, 3/8" external tooth

2шт.

17

48952DA

GASKET

STEERING WORM GEAR HOUSING COVER GASKET

1шт.

18

70121D

NUT

UPPER BOLSTER PIVOT SHAFT NUT (Will work for nut, 218445)

1шт.

19

50037DA

STEERING WORM GEAR SECTOR, 19 teeth (Order 50037DB)

1шт.

19a

50037DB

GEAR

STEERING WORM GEAR (32 teeth) (Will work for 50037DA)

1шт.

20

45172DR

BUSHING,38.16mm ID x 41.38mm OD x 60.33mm L

UPPER BOLSTER BUSHING, top

1шт.

21

50052DB

SHAFT

STEERING WORM AND SHAFT ("M" and "MV")

1шт.

69942D

SLOTTED HEX JAM NUT, 3/4" N.F. (Order 69442D)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

21

60945DB

STEERING WORM AND SHAFT ("MD" and "MDV")

1шт.

69942D

SLOTTED HEX JAM NUT, 3/4" N.F. (Order 69442D)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

22

ST225Y

STEERING WORM BALL BEARING (Order ST225BT)

1шт.

22

ST225BT

BALL BEARING

STEERING WORM BALL BEARING (Will work for ST225Y)

1шт.

23

69442D

NUT

STEERING WORM NUT (Slotted hex jam nut, 3/4" N.F.)

1шт.

24

6660DA

BEARING CAP

STEERING WORM BEARING RETAINER

1шт.

25

29118DC

WHEEL

STEERING WHEEL, 18" diameter (Optional with 60070D)

1шт.

25

60070D

STEERING WHEEL

STEERING WHEEL, 18" diameter (Optional with 29118DC)

1шт.

25

557282R91

STEERING WHEEL, 20" diameter (Special)

1шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STEERING SHAFT REAR BEARING LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STEERING SHAFT REAR BEARING LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

27

48608D

STEERING UNIVERSAL JOINT BOLT (S/N FBK, Serial Range: 501-109890)

4шт.

102644

SLOTTED NUT,5/16"-24, G5

SLOTTED HEX NUT, 5/16" N.F.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

4шт.

28

48607D

STEERING UNIVERSAL JOINT PLATE (S/N FBK, Serial Range: 501-55056)

2шт.

28

63085D

STEERING UNIVERSAL JOINT PLATE (S/N FBK, Serial Range: 55057-109890)

2шт.

29

52894D

STEERING UNIVERSAL JOINT WASHER (S/N FBK, Serial Range: 501-109890)

20шт.

30

48609DA

STEERING UNIVERSAL JOINT KEY (S/N FBK, Serial Range: 501-55056)

1шт.

32

102644

SLOTTED NUT,5/16"-24, G5

FOLLOWS REFERENCE NO. 27

1шт.

33

58247DCX

FRONT FRAME CHANNEL WITH BRACKET, L.H. (Will work for 50995DA) (S/N FBK 501 to 23569 also)

1шт.

(S/N FBK, Serial Range: 24215-24326)

1шт.

33

360519R91

FRONT FRAME CHANNEL WITH BRACKET (LH) ("MD" and "MDV") (Will work for 60941DD)

1шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

CAP SCREW, 5/8 x 1-3/8" N.C. hex head

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("MD" only)

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("MDV" only)

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("MD" only) 3/4"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("MDV" only) 3/4"

2шт.

33

61329DD

FRONT FRAME CHANNEL WITH BRACKET, L.H. ("M" and "MV") (S/N FBK, Serial Range: 23570-24214)

1шт.

(S/N also FBK 24327 up)

1шт.

190270

BOLT,Hex, 1/2" - 13 x 4 1/4"

CAP SCREW, 1/2 x 4-1/4" N.C. hex head

2шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

CAP SCREW, 5/8 x 1-3/8" N.C. hex head

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("M" only)

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("MV" only)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("M" only) 3/4"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("MV" only) 3/4"

2шт.

34

9170D

ENGINE FRONT SUPPORT ("M" and "MV") (S/N FBK, Serial Range: 23570-24214)

1шт.

(S/N also FBK 24327 up)

2шт.

34

51347DA

ENGINE FRONT SUPPORT, complete ("M" only) (S/N FBK 501 to 23569 also

1шт.

(S/N FBK, Serial Range: 24215-24326)

2шт.

35

9131DDXA

UPPER BOLSTER, complete ("MD" only)

1шт.

35

9141DCXA

UPPER BOLSTER, complete ("M" only) (S/N FBK 26117 up)

1шт.

35

60974DD

UPPER BOLSTER, complete ("M" only) (Will work for 6752DGX) (S/N FBK, Serial Range: 501-26116)

1шт.

35

65135DD

UPPER BOLSTER, complete ("MV" only)

1шт.

35

65136DE

UPPER BOLSTER, complete ("MDV" only)

1шт.

35a

57563DX

UPPER BOLSTER PLUG SPRING AND 2 RIVETS (S/N FBK 57794 up)

2шт.

110638

RIVET

S, 3/16 x 5/16" round head

2шт.

36

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

STARTING CRANK RATCHET LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

36

67957D

FITTING

STARTING CRANK RATCHET LUBRICATOR (For tractors equipped with short wheel base)

1шт.

36

109461

LUBE NIPPLE,1/8"-27 x .66 lg

STARTING CRANK RATCHET LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

37

49052DD

FAN DRIVE PULLEY DUST SHIELD ("M" and "MV")

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

37

60943DD

FAN DRIVE PULLEY DUST SHIELD ("MD" and "MDV")

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

38

58248DDX

FRONT FRAME CHANNEL WITH BRACKET, R.H. (Will work for 50996DB) (S/N FBK 501 to 23569 also)

1шт.

(S/N FBK, Serial Range: 24215-24326)

1шт.

38

360520R91

FRONT FRAME CHANNEL WITH BRACKET (RH) ("MD" and "MDV") (Will work for 60942DD)

1шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

CAP SCREW, 5/8 x 1-3/8" N.C. hex head

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("MD" only)

3шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

CAP SCREW, 3/4 x 2" N.C. hex head

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("MDV" only)

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("MD" only) 3/4"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("MDV" only) 3/4"

2шт.

38

61330DD

FRONT FRAME CHANNEL WITH BRACKET, R.H. ("M" and "MV") (S/N FBK, Serial Range: 23570-24214)

1шт.

(S/N also FBK 24327 up)

1шт.

190270

BOLT,Hex, 1/2" - 13 x 4 1/4"

CAP SCREW, 1/2 x 4-1/4" N.C. hex head

2шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

CAP SCREW, 5/8 x 1-3/8" N.C. hex head

4шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

CAP SCREW, 3/4 x 2" N.C. hex head

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("M" only)

3шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

CAP SCREW, 3/4 x 2-1/2" N.C. hex head ("MV" only)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("M" only) 3/4"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, ("MV" only) 3/4"

2шт.

39

109461

LUBE NIPPLE,1/8"-27 x .66 lg

UPPER BOLSTER PIVOT SHAFT LUBRICATOR (Optional with 119512) (Same as Q3615)

1шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

UPPER BOLSTER PIVOT SHAFT LUBRICATOR (Optional with 109461) (Same as 14186DA)

1шт.

40

364470R91

OIL SEAL

UPPER BOLSTER PIVOT SHAFT OIL SEAL (Will work for 80093H)

1шт.

41

49664D

WASHER

UPPER BOLSTER FELT WASHER RETAINER ("M" and "MD")

1шт.

42

65131D

UPPER BOLSTER FELT WASHER ("MV" and "MDV")

1шт.

42

49663D

WASHER

UPPER BOLSTER FELT WASHER ("M" and "MD")

1шт.

43

354675R91

BALL BEARING,54.13mm ID x 91.67mm OD x 20.75mm W

UPPER BOLSTER PIVOT SHAFT THRUST BEARING ("M" and "MD") (Will work for 49662D)

1шт.

44

49661DAR

BUSHING,92.22mm ID x 95.47mm OD x 92.08mm L

UPPER BOLSTER BUSHING, bottom ("M" and "MD")

1шт.

45

50040DC

UPPER BOLSTER PIVOT SHAFT ("M" and "MD")

1шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

CAP SCREW, 3/4 x 2-3/4" N.F. hex head

3шт.

352536R2

HEX NUT, 3/4" N.F.

3шт.

218445

NUT,Jam, 1"-8, G5

SLOTTED HEX JAM NUT, 1" N.F. (Order 70121D)

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

183

WASHER, 1-1/32" I.D. x 2" O.D. x no. 16 ga.

1шт.

46

48751DA

BOLT,3/4" - 16 x 2 7/8"

STEERING STOP BOLT ("M" and "MD") (Not used on single front wheel attachments)

1шт.

352536R2

HEX NUT, 3/4" N.F.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

47

6719DCXC

LOWER BOLSTER WITH AXLE, complete ("M" and "MD") (Order 6719DDX together with washer, 353838R1 and nut, 102652) (S/N FBK, Serial Range: 501-212443)

1шт.

(S/N FDBK, Serial Range: 501-206887)

1шт.

47

6719DDX

LOWER BOLSTER WITH AXLE, complete ("M" and "MD") (S/N FBK 212444 up)

1шт.

(S/N FDBK 206888 up)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

111280

RIVET, 5/8 x 3-3/4" round head (Annealed) (Will work for 41105D)

1шт.

48

48701D

SHIELD

FRONT WHEEL DUST SHEILD

2шт.

49

111280

FOLLOWS REFERENCE NO. 47

1шт.

50

51141D

STEERING SHAFT CENTER BEARING SUPPORT ("M" only) (S/N FBK, Serial Range: 501-24214)

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

CAP SCREW, 7/16 x 3/4" N.C. hex head

4шт.

114773

HEX NUT, 7/16" N.C.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

51

51131D

STEERING SHAFT REAR BEARING BUSHING ("M" only) (S/N FBK, Serial Range: 501-9286)

1шт.

52

3066T

STEERING SHAFT REAR BEARING PIN (Order rivet, 104091)

1шт.

53

51693D

BAR

ENGINE FRONT SUPPORT BEVEL WASHER ("MD" and "MDV")

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

CAP SCREW, 1/2 x 2-3/4" N.C. hex head

2шт.

114774

HEX NUT, 1/2" N.C.

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

54

9502D

UPPER BOLSTER PIVOT SHAFT BUSHING ("MV" and "MDV")

1шт.

55

65130D

UPPER BOLSTER PIVOT SHAFT ("MV" AND "MDV")

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

183

WASHER, 1-1/32" I.D. x 2" O.D. x no. 16 ga.

1шт.

60

350254R91

U-JOINT SPIDER

STEERING UNIVERSAL JOINT BEARING AND SPIDER, complete (Optional with 357439R91) (S/N FBK 109891 up)

1шт.

60

357439R91

STEERING UNIVERSAL JOINT BEARING AND SPIDER, complete (Optional with 350254R91) (S/N FBK 109891 up)

1шт.

61

350361R2

YOKE

STEERING UNIVERSAL JOINT YOKE (S/N FBK 109891 up)

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.F. hex head

1шт.

86509310

NUT,3/8" - 24, Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

63

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

STEERING SHAFT UNIVERSAL JOINT KEY (Woodruff, 3/16 x 7/8") (S/N 109891 up)

1шт.

64

351924R1

STARTING SWITCH ACTUATOR LEVER BRACKET

1шт.

65

351922R11

LEVER

STARTING SWITCH ACTUATING LEVER

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

350334R92

FORK

STEERING SHAFT, 350358R91 and universal joint, 350371R92 (S/N FBK 109891 up)

1шт.

104091

RIVET,But Hd, 1/4" x 1 3/4"

1/4 x 1-3/4" (Round head)

1шт.

218445

NUT,Jam, 1"-8, G5

SLOTTED HEX JAM NUT, 1" N.F.

1шт.
