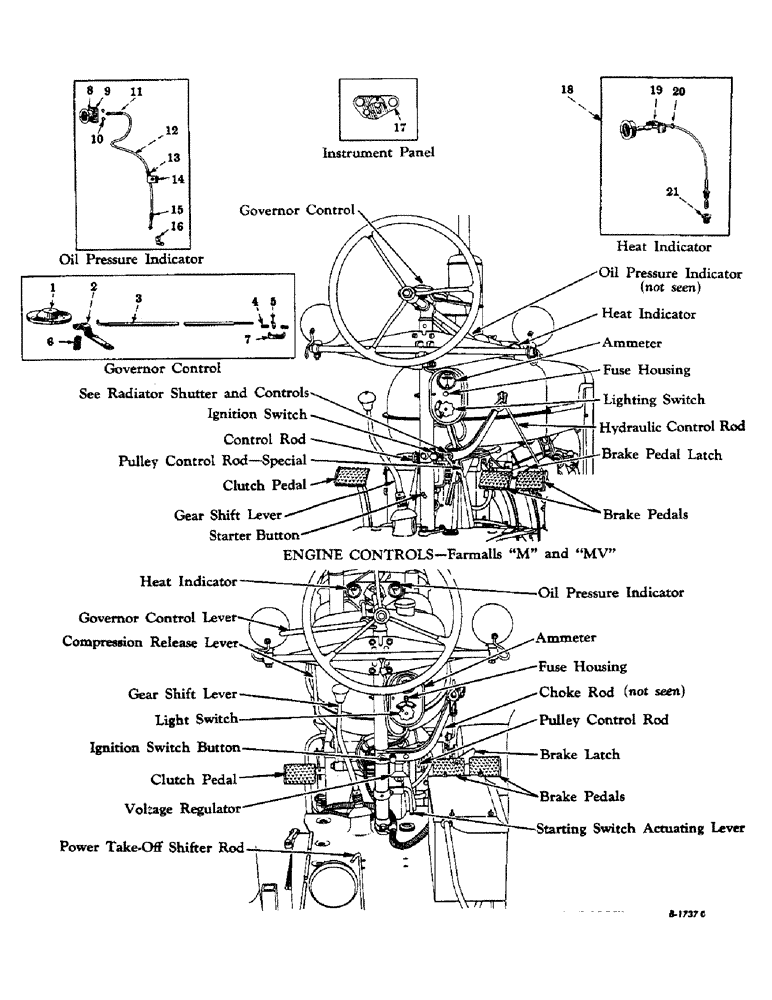

Запчасти Case IH FARMALL MDV (174) - CHASSIS, ENGINE CONTROLS AND INSTRUMENTS (12) - CHASSIS

366727R91

GOVERNOR

CONTROL PARTS ACCESSORY ("M" and "MV")

1шт.

1

51351DBXA

GOVERNOR CONTROL SECTOR WITH PIVOT PIN ("M" and "MV")

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q1505

WASHER

13/32" I.D. x 1" O.D. x no. 16 ga.

1шт.

2

51348DAX

HANDLE

GOVERNOR CONTROL HANDLE WITH HUB ("M" and "MV")

1шт.

3

51360DA

GOVERNOR CONTROL ROD, rear ("M" and "MV")

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F. (S/N FBK 501 to 270032)

2шт.

220065

HEX NUT, 5/16" N.C. (S/N FBK 270033 up)

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

4

51354DA

VALVE SPRING

GOVERNOR CONTROL ROD EQUALIZER SPRING ("M" and "MV")

2шт.

5

51355D

PIVOT

GOVERNOR CONTROL ROD SWIVEL ("M" and "MV")

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

Q243

WASHER

21/64" I.D. x 3/4" O.D. x no. 16 ga.

1шт.

6

51349D

SPRING

GOVERNOR CONTROL HANDLE SPRING ("M" and "MV")

1шт.

7

51353D

GOVERNOR CONTROL ROD EQUALIZER ("M" and "MV")

1шт.

8

41934DC

OIL PRESSURE INDICATOR, complete (Work range 0 to 75 lbs. per square inch) ("M" and "MV") (S/N FBKM 501 up)

1шт.

8

41934DC

OIL PRESSURE INDICATOR, complete (Work range 0 to 75 lbs. per square inch) ("MD" and "MDV") (S/N FDBKM, Serial Range: 501-8246)

1шт.

(S/N not FDBKM 7983 thru 8009)

1шт.

8

258634R91

GAUGE

OIL PRESSURE INDICATOR, complete (Work range 0 to 45 lbs. per square inch) ("MD" and "MDV") (S/N FDBKM 8247 up)

1шт.

(S/N also FDBKM 7983 thru 8009)

1шт.

103089

HEX NUT, no. 12 x 24 N.C.

2шт.

ref # 8 subs to 536962r2, PART NOW HAS MALE CONNECTOR, AND THE OLD GAUGES WERE FEMALE PART NUMBER 257523R1 ADAPTER IS NEEDED TO CONVERT. ALSO, YOU MAY NEED A 1/8" TUBE NUT PART NUMBER 19984R1 TO FIT YOUR APPPLICATION. USE BOTH PART NUMBERS TO ADAPT TO 1/8" TUBE.

1шт.

9

60805D

OIL PRESSURE INDICATOR CLAMP

1шт.

10

125750

OIL PRESSURE INDICATOR CLAMP LOCKWASHER NO. 12 (External tooth) (Shakeproof) (Same as 53031D)

2шт.

11

222-502

TUBE NUT,7/16"-24

COUPLING NUT, oil pipe to gauge

1шт.

12

52647DX

PIPE

OIL PIPE, engine to gauge, with 2 coupling nuts, 29898D ("M" and "MV")

1шт.

12

60924DX

OIL PIPE, engine to gauge, with 2 coupling nuts, 29898D ("MD" and "MDV")

1шт.

13

52728D

OIL PIPE CUSHION

1шт.

14

355097R1

OIL PIPE CLIP (Will work for 27385D, 52727D, 60938D and 61032D)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

222-502

TUBE NUT,7/16"-24

COUPLING NUT, oil pipe to engine

1шт.

16

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

CONNECTOR, oil pipe to engine ("M" only) (Order 60046D)

1шт.

16

30402DX

ELBOW

CONNECTOR WITH NUT, 29898D, OIL PIPE TO ENGINE ("M" only) (Order 60046DX)

1шт.

16

60046D

ELBOW

CONNECTOR, oil pipe to engine (Will work for 30402D)

1шт.

16

60046DX

CONNECTOR WITH NUT, 29898D, oil pipe to engine (Will work for 30402DX)

1шт.

17

57260D

INSTRUMENT PANEL ("M" only) (Will work for 51142D) (S/N FBK, Serial Range: 501-24214)

1шт.

17

60676D

INSTRUMENT PANEL, complete (S/N FBK 24215 up)

1шт.

18

49040DB

INDICATOR

HEAT INDICATOR (Work range 170 degrees to 200 degrees) (For tractors equipped with conventional-type radiators only) (S/N FBK, Serial Range: 501-60244)

1шт.

18

67135D

DIPSTICK

HEAT INDICATOR (Work range 170 degrees to 220 degrees) (For tractors equipped with pressure type radiators only) (S/N FBK 60245 up)

1шт.

372632A1

SPRING

HEX NUT, no. 12-24 N.C.

2шт.

19

50417D

HEAT INDICATOR CLAMP

1шт.

20

125750

HEAT INDICATOR CLAMP STUD LOCKWASHER (No. 12 external tooth) (Shakeproof) (Same as 54031D)

2шт.

21

51510D

BUSHING

HEAT INDICATOR REDUCING BUSHING

1шт.

37596D

CHOKE ROD HOLDER

1шт.

51822D

CHOKE ROD (46-5/8" long)

1шт.

357420R1

CHOKE ROD (45-27/32")

1шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

1шт.

55234D

HEAT INDICATOR OPENING COVER (For tractors not equipped with heat indicator)

1шт.

110532

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

1шт.

55235DX

HEAT INDICATOR OPENING COVER FASTENING STRIP WITH NUT (For tractors not equipped with heat indicator)

1шт.

62513DX

CHOKE CONTROL ROD AND BUTTON ("MD" and "MDV" tractors not equipped with voltage regulation)

1шт.

103361

PIN, SPLIT (COTTER)

COTTER PIN, 1/16 x 1/2"

1шт.

63783D

NO LONGER SERVICED

HEAT INDICATOR (Used with low boiling point attachment) (Work range 130 degrees to 160 degrees) (Tractors equipped with conventional type radiators) (S/N FBK, Serial Range: 501-60244)

1шт.

355705R91

CHOKE CONTROL ROD AND BUTTON ("MD" and "MDV" tractors equipped with voltage regulation)

1шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

1шт.

3058TA

CHOKE ROD HOLDER SPRING

1шт.
