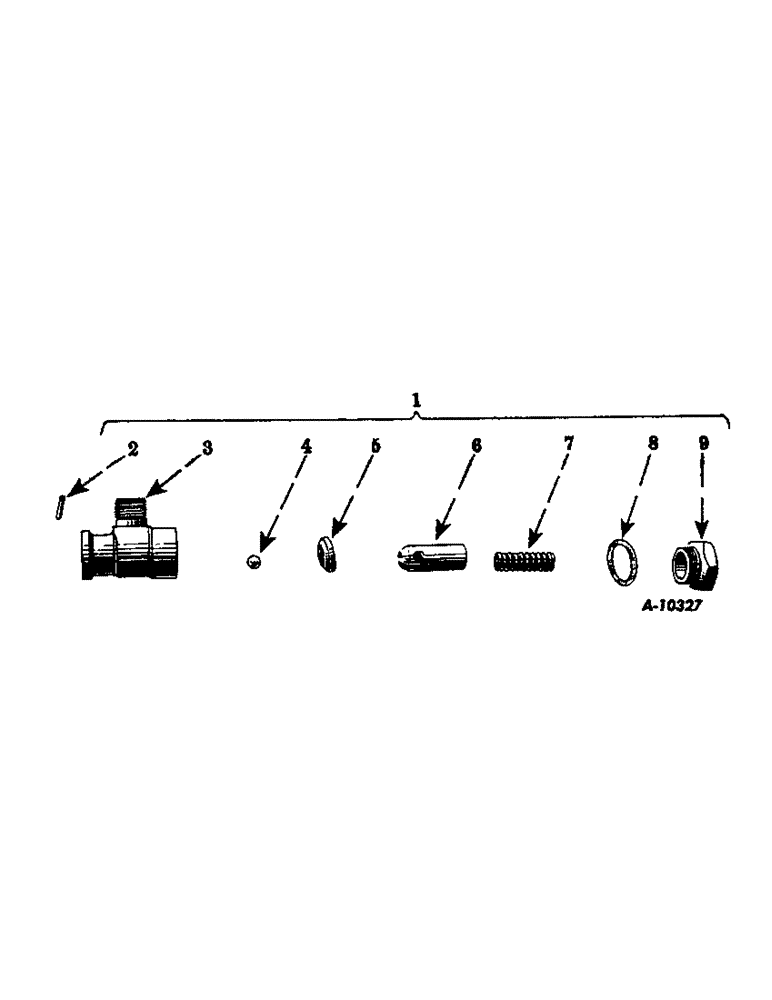

Запчасти Case IH FARMALL MDV (285) - HYDRAULIC SYSTEM, DELAYED LIFT VALVE (07) - HYDRAULIC SYSTEM

1

15120EX

DELAYED LIFT VALVE, complete (Releases at 275 pounds to 300 pounds pressure. To be used with pump unit having 450 pounds to 500 pounds pressure) (A)

1шт.

1

15120EBX

DELAYED LIFT VALVE, complete (Releases at 475 pounds to 500 pounds pressure. To be used with pump unit stenciled "8" having 800 pounds to 850 pounds pressure) (B)

1шт.

2

15141E

BALL RETAINING PIN (Order 103575) (A)

1шт.

2

103575

PIN,#1 x 1 1/4", Tapered

BALL RETAINING PIN (Will work for 15141E) (Used with 15120EAX) (B)

1шт.

2

NLS

NO LONGER SERVICED

BALL RETAINING PIN (Used with 15120EBX) (B)

1шт.

3

5041EA

VALVE HOUSING (Order 15120EBX)

1шт.

4

D2615

BALL

STEEL BALL, 3/8" diameter

1шт.

5

15119E

RUBBER STEEL

1шт.

6

15116E

VALVE PISTON

1шт.

7

15118E

PISTON PRESSURE SPRING (Order 15118EA if increased pressure is desired) (A)

1шт.

7

15118EA

PISTON PRESSURE SPRING (Replaces 15118E 15120EX if increased pressure is desired. Can only be used if pump unit has "8" stenciled on it) (Will work for 494031R1) (B)

1шт.

8

15122EA

VALVE HOUSING GASKET (Fishpaper)

1шт.

9

15117E

VALVE PLUG

1шт.

15142E

ADJUSTING SHIM (B)

1шт.
