Запчасти Case IH FARMALL MD (164) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, LIGHTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

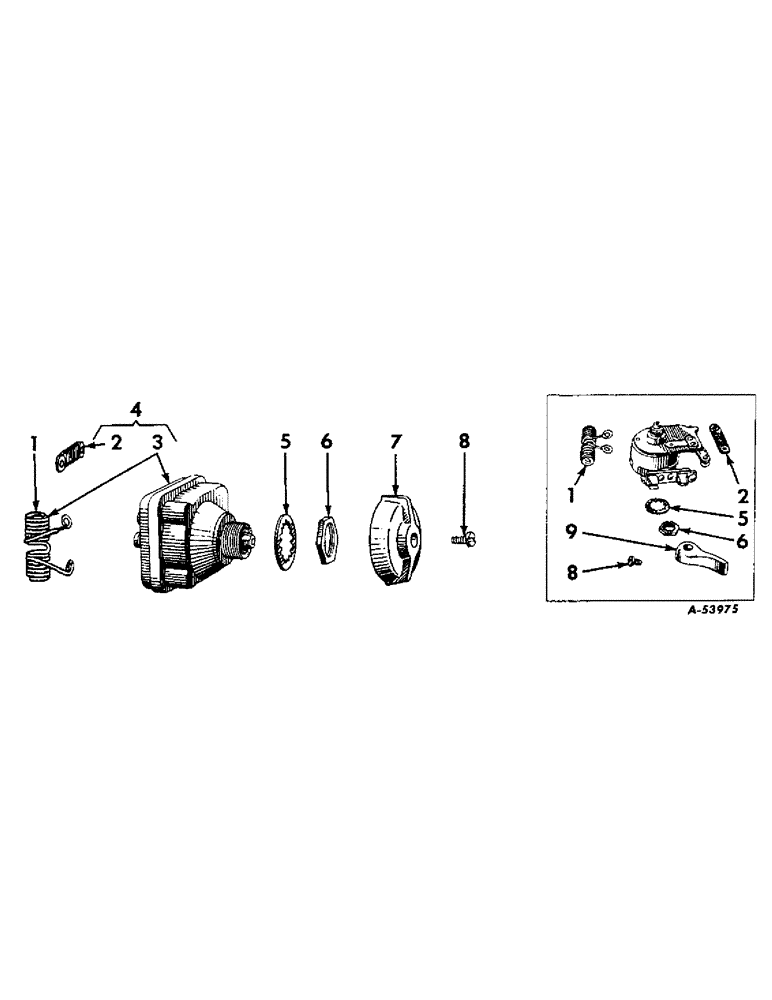

Схема запчастей Case IH FARMALL MD - (164) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, LIGHTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS
2
5
2
7
6
9
6
8
5
4
1
3
1
8

Артикул

Название

Примечание

Количество

1

LIGHTING SWITCH DIMMER RESISTANCE (12 volt) (MD and MDV tractors equipped with starting and lighting) (Mfr. no. 1877830)

1шт.

1

LIGHTING SWITCH DIMMER RESISTANCE (6 volt) (M and MV tractors equipped with lighting or starting and lighting (MD and MDV tractors equipped with lighting only) (Also tractors equipped with Bosch "No-battery" lighting) (Mfr. no. 814545)

1шт.

2

LIGHTING SWITCH GENERATOR FIELD RESISTANCE (12 volt) (MD and MDV tractors equipped with starting and lighting) (Mfr. no. 1877831)

1шт.

Tractors equipped with relay.

1шт.

2

LIGHTING SWITCH GENERATOR FIELD RESISTANCE (6 volt) (M and MV tractors equipped with Delco-Remy lighting or starting and lighting) (Also MD and MDV tractors equipped with Delco-Remy lighting only) (S/N Magneto igintion 501 to ) (Mfr. no. 1878070)

1шт.

Tractors equipped with relay.

1шт.

3

363130R91

SWITCH

LIGHTING SWITCH WITH COIL, 814545 AND KNOB, 1930685 ("M" and "MV") (6 volt) (Mfr. no. 1994038)

1шт.

Tractors equipped with voltage regulation.

1шт.

3

363131R91

SWITCH

LIGHTING SWITCH WITH COIL, 814545 AND KNOB, 1930685 ("MD" and "MDV") (12 volt) (Mfr. no. 1994043)

1шт.

Tractors equipped with voltage regulation.

1шт.

3

LIGHTING SWITCH WITH COIL (Bosch "No battery" lighting equipped with fuses) (Mfr. no. 1994021)

1шт.

3

LIGHTING SWITCH WITH COIL (Bosch "No battery" lighting less fuses) (S/N up) (Mfr. no. 1994036)

1шт.

4

LIGHTING SWITCH WITH COILS (6 volt) (S/N FBK 20050 to ) (Mfr. no. 1994019)

1шт.

Tractors equipped with relay.

1шт.

4

LIGHTING SWITCH WITH COILS, 1877830 and 1877831 (12 volt) (Mfr. no. 1994020)

1шт.

Tractors equipped with relay.

1шт.

5

38767D

WASHER

LIGHTING SWITCH LOCKWASHER (Shakeproof) (S/N FBK, Serial Range: 501-20049)

1шт.

5

141706

WASHER

LOCKWASHER, 11/16" (Internal tooth) (S/N FBK 20050 up)

1шт.

6

LIGHTING SWITCH MOUNTING NUT (S/N FBK 501 to 20049) (Mfr. no. 1873327)

1шт.

6

LIGHTING SWITCH MOUNTING NUT (S/N FBK 20050 up) (Mfr. no. 1882012)

1шт.

7

LIGHTING SWITCH KNOB (Mfr. no. 1930685)

1шт.

8

LIGHTING SWITCH KNOB SCREW (Mfr. no. 1864099)

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

9

LIGHTING SWITCH HANDLE (S/N 501 to 20049) (Mfr. no. 1873326)

1шт.

LIGHTING SWITCH CONTACT SUPPORT (Used with 1994021 Bosch lighting)

1шт.

Выбрано товаров: 25
