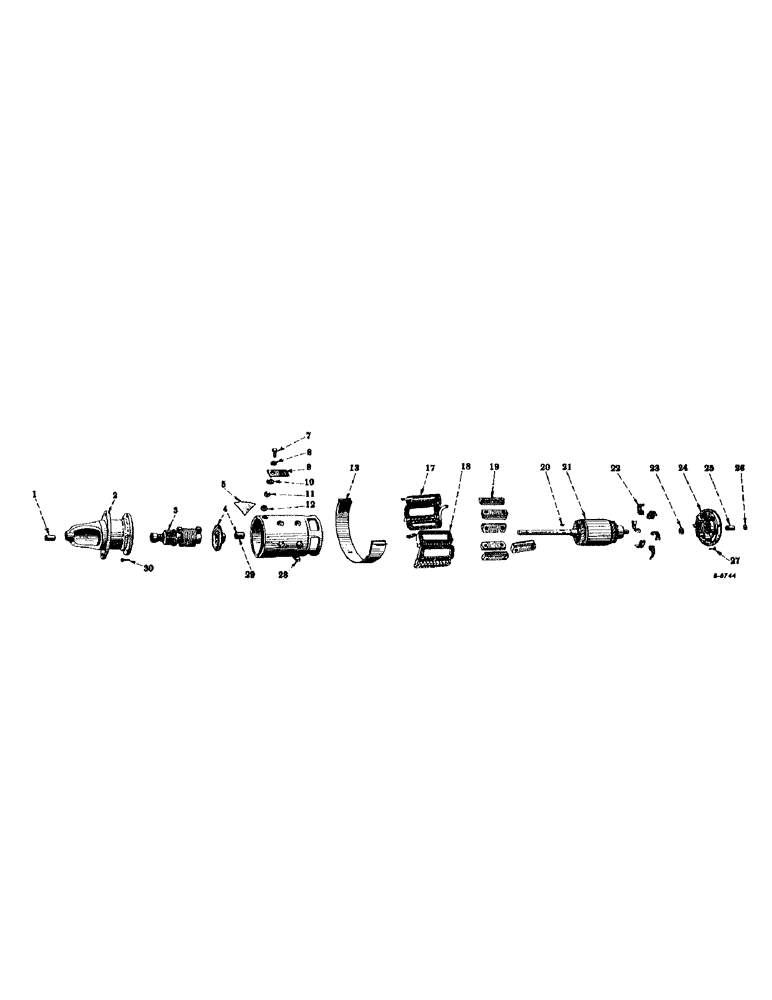

Запчасти Case IH FARMALL MD (132) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR, DELCO REMY (06) - ELECTRICAL SYSTEMS

61061DA

SPARE PART CRANKING MOTOR (Mfr. no. 1108913)

1шт.

104220A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia. Three Bolt Flange

1шт.

104220A1C

CORE-STARTER

Return Number

1шт.

104219A2GV

STARTER MOTOR

Value, 6V, 10MT

1шт.

104219A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT 2 hole mount.

1шт.

104219A1C

CORE-STARTER

Return Number

1шт.

1

DRIVE HOUSING BUSHING (Mfr. no. 812410)

1шт.

2

DRIVE HOUSING BUSHING, 812410 (Mfr. no. 1878774)

1шт.

3

MOTOR DRIVE (Mfr. no. 1883648)

1шт.

4

CENTER BEARING WITH BUSHING, 820148 (Mfr. no. 820149)

1шт.

*

SLOTTED SCREW, no. 10-32 x 5/16" round head (Blued) (Mfr. no. 142210)

2шт.

*

LOCKWASHER, no. 10 (Mfr. no. 802731)

2шт.

5

FIELD COIL INSULATION STRIP (Mfr. no. 1868810)

1шт.

7

TERMINAL STUD (Mfr. no. 826938)

1шт.

*

HEX NUT, 3/8" N.C. (Cadmium plated)

1шт.

*

LOCKWASHER, 3/8" (Mfr. no. 110730)

2шт.

8

TERMINAL STUD INSULATING WASHER (Mfr. no. 1904669)

3шт.

9

FIELD COIL INSULATION STRIP (Mfr. no. 33345)

1шт.

10

TERMINAL STUD INSULATING WASHER (Mfr. no. 1861076)

2шт.

11

TERMINAL STUD WASHER, plain (Mfr. no. 805790)

2шт.

12

TERMINAL STUD NUT (Mfr. no. 805258)

1шт.

13

COVER BAND (Mfr. no. 1880355)

1шт.

17

FIELD COIL, L.H. (Mfr. no. 038279)

1шт.

18

FIELD COIL, R.H. (Mfr. no. 038278)

1шт.

19

POLE SHOE (Mfr. no. 036497)

6шт.

20

WOODRUFF KEY, no. 6 (Mfr. no. 106750)

1шт.

21

ARMATURE (Mfr. no. 1857480)

1шт.

22

BRUSH (Mfr. no. 38367)

6шт.

*

SLOTTED SCREW, no. 8-32 x 5/16" round head (Cadmium plated) Mfr. no. 121749)

6шт.

*

LOCKWASHER, no. 8 (Mfr. no. 106496)

6шт.

23

COMMUTATOR END SPACE WASHER (Mfr. no. 817051)

1шт.

24

COMMUTATOR END FRAME (Mfr. no. 38290)

1шт.

25

COMMUTATOR END FRAME BUSHING (Mfr. no. 38296)

1шт.

26

COMMUTATOR END FRAME PLUG (Mfr. no. 810819)

1шт.

27

COMMUTATOR END FRAME ATTACHING SCREW (Mfr. no. 37872)

6шт.

*

LOCKWASHER, no. 10 (Mfr. no. 106497)

6шт.

28

POLE SHOE SCREW (Mfr. no. 1843646)

12шт.

29

CENTER BEARING BUSHING (Mfr. no. 820148)

1шт.

30

DRIVE HOUSING ATTACHING SCREW (Mfr. no. 37872)

6шт.

*

LOCKWASHER, no. 10 (Mfr. no. 106497)

6шт.
