Запчасти Case IH FARMALL MD (104) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

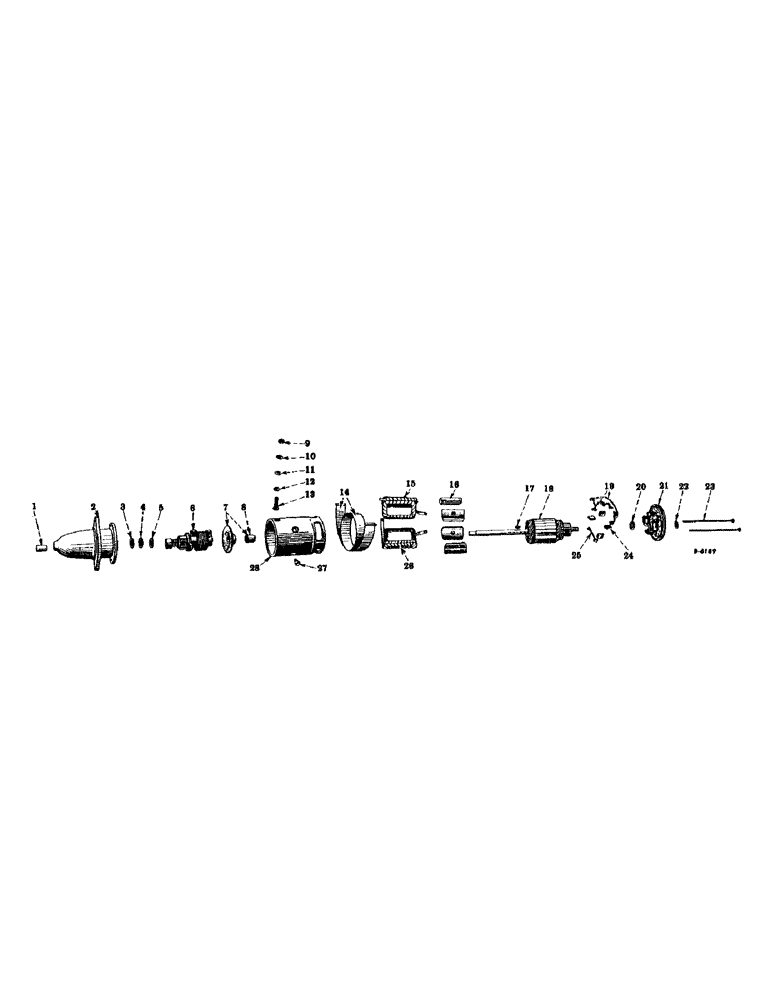

Схема запчастей Case IH FARMALL MD - (104) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS
28
12
27
17
1
20
11
18
25
24
3
4
5
8
26
21
7
19
15
22
2
9
7
23
13
16
14
10

Артикул

Название

Примечание

Количество

63608D

SPARE PART CRANKING MOTOR (Mfr. no. 1107448)

1шт.

104220A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia. Three Bolt Flange

1шт.

104220A1C

CORE-STARTER

Return Number

1шт.

1

DRIVE HOUSING BUSHING (Mfr. no. 810620)

1шт.

2

DRIVE HOUSING WITH BUSHING, 810620 (Mfr. no. 1887109)

1шт.

3

DRIVE END SPACE WASHER (Mfr. no. 833602)

1шт.

4

DRIVE END SPACE WASHER (Mfr. no. 809815)

1шт.

5

DRIVE END SPACE WASHER (Mfr. no. 1849774)

1шт.

6

MOTOR DRIVE (Mfr. no. 1868804)

1шт.

7

CENTER BEARING WITH BUSHING, 1838670 (Mfr. no. 1838667)

1шт.

.

SLOTTED SCREW, no. 10-32 x 5/16" round head (Blued) (Mfr. no. 142210)

2шт.

.

LOCKWASHER, no. 10 (Mfr. no. 802731)

2шт.

8

CENTER BEARING BUSHING (Mfr. no. 1838670)

1шт.

9

TERMINAL STUD NUT (Mfr. no. 805258)

2шт.

10

TERMINAL STUD WASHER, plain (Mfr. no. 805790)

1шт.

11

TERMINAL STUD INSULATING WASHER (Mfr. no. 1861076)

2шт.

12

TERMINAL STUD INSULATING WASHER (Mfr. no. 1904669)

2шт.

13

TERMINAL STUD (Mfr. no. 826938)

1шт.

.

LOCKWASHER, 3/8"

2шт.

14

COVER BAND (Mfr. no. 1886923)

1шт.

.

SLOTTED SCREW, no. 10-32 x 1-1/4" round head (Cadmium plated) (Mfr. no. 132926)

1шт.

.

HEX NUT, no. 10-32 (Mfr. no. 103088)

1шт.

15

UPPER FIELD COIL (Mfr. no. 1878635)

1шт.

16

POLE SHOE (Mfr. no. 810601)

4шт.

17

WOODRUFF KEY, no. 6 (Mfr. no. 124546)

1шт.

18

ARMATURE (Mfr. 1871662)

1шт.

19

BRUSH CONNECTOR LEAD (Mfr. no. 819362)

1шт.

.

SLOTTED SCREW, no. 10-32 x 1/4" round head (Cadmium plated) (Mfr. no. 106497)

2шт.

.

LOCKWASHER, no. 10 (Mfr. no. 106497)

2шт.

20

COMMUTATOR END SPACER WASHER (Mfr. no. 833602)

1шт.

21

COMMUTATOR END FRAME (Mfr. no. 1881627)

1шт.

22

COMMUTATOR END FRAME PLUG (Mfr. no. 1865182)

1шт.

23

THRU BOLT (Mfr. no. 809053)

2шт.

.

LOCKWASHER, 1/4" (Mfr. no. 103319)

2шт.

24

BRUSH (Mfr. no. 811553)

4шт.

.

SLOTTED SCREW, no. 6-32 x 1/2" round head (Blued) (Mfr. no. 115903)

4шт.

.

LOCKWASHER, no. 6 (Mfr. no. 106495)

4шт.

25

GROUND BRUSH LEAD (Mfr. no. 813554)

2шт.

.

SLOTTED SCREW, no. 8-32 x 1/4" round head (Cadmium plated) (Mfr. no. 122159)

2шт.

.

LOCKWASHER, no. 8 (Mfr. no. 106496)

2шт.

26

LOWER FIELD COIL (Mfr. no. 1878636)

1шт.

27

POLE SHOE SCREW (Mfr. no. 1881869)

4шт.

28

FRAME (Not serviced separately)

1шт.

.

COMMUTATOR END FRAME OILER (Mfr. no. 1880642)

1шт.

.

COMMUTATOR END FRAME OILER OIL WICK (Mfr. no. 802691)

1шт.

Выбрано товаров: 45
