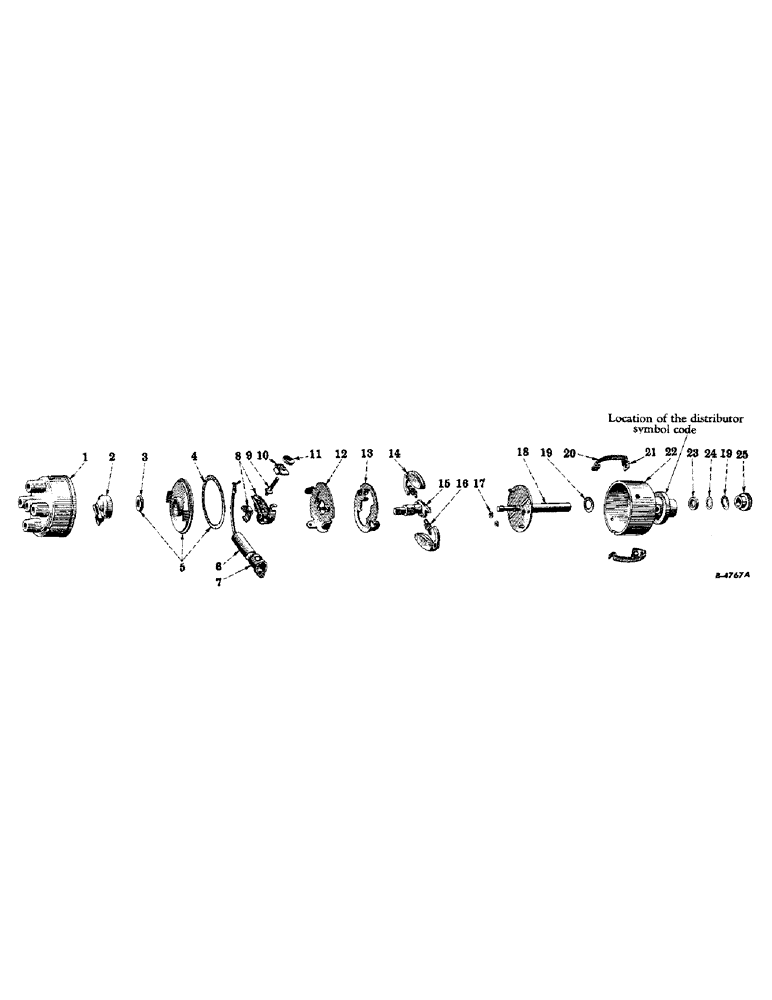

Запчасти Case IH FARMALL MD (089) - ELECTRICAL SYSTEM, CARBURETED ENGINE, BATTERY IGNITION DISTRUBITOR (06) - ELECTRICAL SYSTEMS

353890R91

DISTRIBUTOR

complete

1шт.

1

351693R92

DISTRIBUTOR,Cap

DISTRIBUTOR CAP

1шт.

2

353896R91

ROTOR ASSY.

DISTRIBUTOR ROTOR

1шт.

3

353901R2

FELT SEAL

BREAKER COVER SEAL FELT

1шт.

4

352284R2

GASKET

BREAKER COVER GASKET

1шт.

5

353900R11

COVER

BREAKER COVER WITH FELT, 353901R2 and cover gasket, 352284R2

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

CONDENSER CLAMP

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

SLOTTED SCREW, no. 8-32 x 3/16" fillister head (Cadmium plated)

1шт.

121841

LOCK WASHER,#8

1шт.

8

353172R91

BREAKER

ARM AND STATIONERY POINT PACKAGE

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

1шт.

21394D

WASHER

STATIONARY POINT AND TERMINAL WASHER

3шт.

9

353907R1

STUD

TERMINAL SCREW

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

3шт.

10

353906R1

PLUG

SPRING ANCHOR TERMINAL INSULATOR

1шт.

11

251538R1

WASHER

TERMINAL INSULATING WASHER

1шт.

12

352277R11

PLATE

BREAKER PLATE

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

1шт.

121841

LOCK WASHER,#8

1шт.

13

352301R1

GUARD

GOVERNOR WEIGHT GUARD

1шт.

131949

DECAL KIT

SLOTTED SCREW, no. 8-32 x 3/16" fillister head (Cadmium plated)

2шт.

121841

LOCK WASHER,#8

2шт.

14

353915R91

ARM

WEIGHT ARM

2шт.

15

355724R91

PACKAGE

CAM, with felt, 355460R1 (Will work for 353908R91)

1шт.

16

358106R91

SPRING

GOVERNOR SPRING (Will work for 353918R1)

1шт.

17

352293R1

SHIM

WEIGHT ARM SPACER

4шт.

18

353928R91

SHAFT

DISTRIBUTOR SHAFT

1шт.

19

352298R1

THRUST WASHER

DISTRIBUTOR THRUST WASHER

2шт.

20

353894R1

VALVE SPRING

DISTRIBUTOR CAP SPRING

2шт.

21

353895R1

SUPPORT

DISTRIBUTOR CAP SPRING SUPPORT

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

2шт.

121841

LOCK WASHER,#8

2шт.

22

353898R11

HOUSING

DISTRIBUTOR HOUSING WITH SEAL, 252739R1, retainer, 353899R1 and plug, 125947

1шт.

125947

STUD

PIPE PLUG, 1/8" slotted (Cadmium plated)

1шт.

23

353899R1

STOP

DISTRIBUTOR SHAFT OIL SEAL RETAINER

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

25

353902R1

GEAR

DISTRIBUTOR GEAR

1шт.

354552R1

HARDWARE

DISTRIBUTOR GEAR PIN (Straight pin, 1/8 x 7/8") (Will work for 117890)

1шт.

352302R1

FELT

CAM OIL HOLE FELT (For cam bore, 5/32")

1шт.

355460R1

FELT SEAL

CAM OIL HOLE FELT (For cam bore, 9/32")

1шт.
