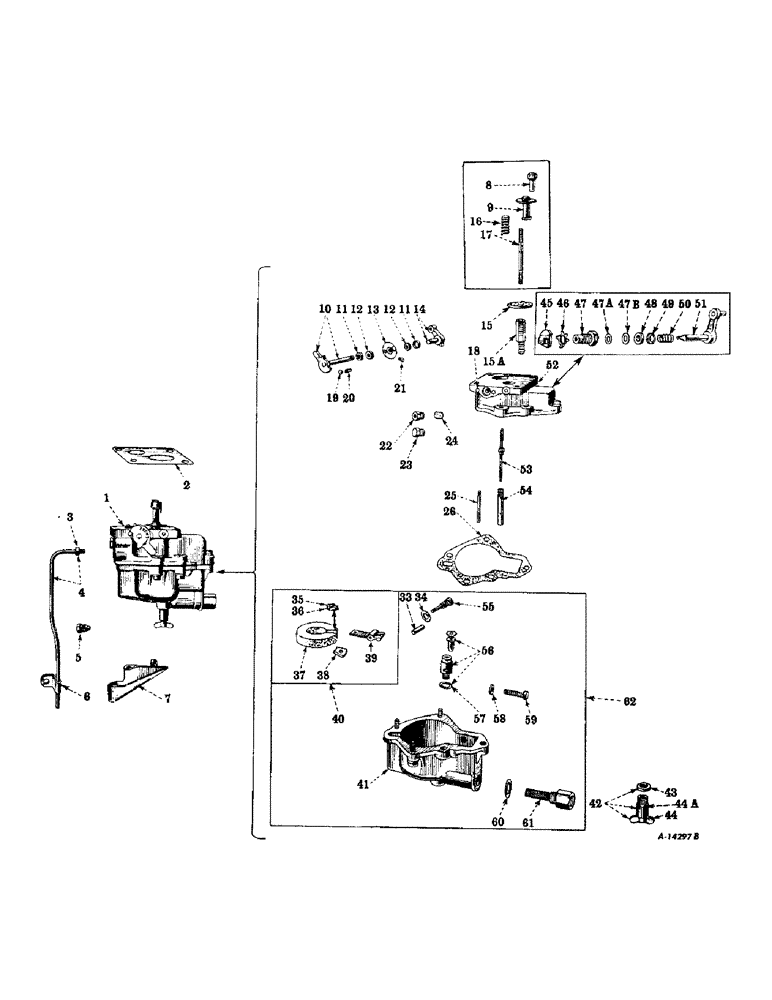

Запчасти Case IH FARMALL MD (065) - DIESEL ENGINE, CARBURETOR, INTERNATIONAL MODEL F-8, FOR STARTING ON GASOLINE (01) - ENGINE

1

53873DH

CARBURETOR, complete (Less ref. 2)

1шт.

425-115

NUT,5/16"-24, G5

HEX NUT, 5/16" N.F.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

53459DA

GASKET

CARBURETOR GASKET

1шт.

3

25038HA

TUBE NUT,3/8"-24

CARBURETOR DRAIN TUBE NUT

1шт.

4

58858DX

CARBURETOR DRAIN TUBE WITH NUT, 25038HA

1шт.

5

61338D

PRIMER CONNECTION PLUG (S/N FDBKM 773 up)

1шт.

6

51704D

CARBURETOR DRAIN TUBE CLIP

1шт.

7

58843DX

CARBURETOR DRAIN TROUGH WITH SUPPORT AND CLIP

1шт.

8

50807D

AIR VALVE COLLAR (S/N FDBKM, Serial Range: 501-2542)

1шт.

9

53875DA

AIR VALVE WITH BUSHINGS AND DISC (S/N FDBKM, Serial Range: 501-2542)

1шт.

10

56537DAX

STARTING SHUTTER OUTER LEVER AND SHAFT, long

1шт.

11

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

STARTING SHUTTER DUST SEAL RETAINER

2шт.

12

45149DA

SEAL

STARTING SHUTTER DUST SEAL

2шт.

13

56542DX

STARTING SHUTTER WITH VALVE, valve guide and spring (Used with 53873DG)

1шт.

13

356850R11

STARTING SHUTTER WITH GUIDE AND SPRING (Used with 53873DH)

1шт.

14

56538DAX

STARTING SHUTTER INNER, lever and shaft, short

1шт.

15

250097R1

AIR VALVE (S/N FDBKM 2543 up)

1шт.

NLS

NO LONGER SERVICED

SLOTTED SCREW, no. 10-32 x 1/2" fillister head (Cadmium plated)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

15a

260098R1

AIR VALVE SPACER (S/N FDBKM 2543 up)

1шт.

16

27452D

VALVE SPRING

AIR VALVE SPRING (S/N FDBKM, Serial Range: 501-2542)

1шт.

17

53840D

AIR VALVE GUIDE (S/N FDBKM, Serial Range: 501-2542)

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

18

45110D

PIN

STARTING LEVER STOP PIN

2шт.

19

52791R1

BALL,3/16" Dia, Stainless

FRICTION SPRING BALL, 3/16"

1шт.

20

46059D

SPRING

STARTING LEVER FRICTION SPRING

1шт.

21

31636D

SCREW

STARTING SHUTTER SCREW

2шт.

22

50802D

DRIP TUBE ADAPTER

1шт.

23

58835D

AIR VALVE CONTROL PLUG (S/N FDBKM, Serial Range: 501-2542)

1шт.

24

27445DB

FILLER

DRIP HOLE FILLER

1шт.

25

50803D

FUEL INLET TUBE

1шт.

26

32606DD

GASKET

FUEL BOWL GASKET

1шт.

33

32604D

FLOAT LEVER SPACER

1шт.

34

25948D

GASKET

FLOAT LEVER PIVOT SCREW GASKET

1шт.

35

32578D

SPRING, LEAF

FLOAT LEVER SPRING, upper leaf

1шт.

36

32577D

SPRING, LEAF

FLOAT LEVER SPRING, lower leaf

1шт.

37

32572DAX

FLOAT

CORK FLOAT WITH FERRULE (For 35691D bowl)

1шт.

12287R1

SLOTTED SCREW, no. 4-36 x 7/16" (Round head) (For 32574D plate)

1шт.

37

251650R11

FLOAT

RUBBER FLOAT WITH SCREW, 132646 and nut, 114777 (For 35691DA, bowl)

1шт.

132646

SCREW,Sl Rnd Hd, #4 - 40 x 1/2"

SLOTTED SCREW, no. 4-40 x 1/2" (Round head) (Cadmium plated)

1шт.

114777

HEX NUT, no. 4-40

1шт.

38

32574DAX

FLOAT REINFORCING PLATE WITH SCREW, 132646 (For 35691D bowl)

1шт.

132646

SCREW,Sl Rnd Hd, #4 - 40 x 1/2"

SLOTTED SCREW, no. 4-40 x 1/2" (Round head) (Cadmium plated)

1шт.

39

32575D

LEVER

FLOAT LEVER (Optional with 357090R2)

1шт.

39

357090R2

LEVER

FLOAT LEVER (Optional with 32575D)

1шт.

40

251652R91

FLOAT

AND LEVER, complete (Will work for 53079D)

1шт.

41

5051DX

FUEL BOWL WITH LEVER SPACER, 32604D (Optional with 9390DX)

1шт.

41

9390DX

FUEL BOWL WITH LEVER SPACER, 32604D (Optional with 5051DX)

1шт.

132203

SCREW, no. 12 - 24 x 7/8" fillister head (Cadmium plated) Slotted Fil Hd, #12-24 x 7/8"

5шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

5шт.

42

58840DAX

PLUG

CARBURETOR DRAIN VALVE BODY WITH STEM, 64536DA, lock nut, 58837D and body, 64932D

1шт.

43

58837D

CARBURETOR DRAIN VALVE LOCK NUT

1шт.

44

64536DA

STEM

CARBURETOR DRAIN VALVE STEM

1шт.

44a

64932D

CARBURETOR DRAIN VALVE BODY

1шт.

45

32582D

LOCKING SHAFT CAM

1шт.

46

352352R1

LOCKING SHAFT BEARING LOCK (Will work for 58836D)

1шт.

47

51735D

LOCKING SHAFT BEARING

1шт.

47a

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Locking shaft seal ring

1шт.

47b

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

LOCKING SHAFT WASHER

1шт.

48

32588D

LOCK WASHER

LOCKING SHAFT DUST WASHER

1шт.

49

32587D

LOCKING SHAFT DUST WASHER RETINER

1шт.

50

32586D

LOCKING SHAFT DUST WASHER SPRING

1шт.

51

51732D

LOCKING SHAFT WITH LEVER AND PIN

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

52

8479DCX

CARBURETOR BODY, complete

1шт.

53

53837DX

NOZZLE WITH TUBE

1шт.

54

55660DB

METERING WELL

1шт.

55

32576DX

FLOAT PIVOT AND SCREW

1шт.

56

32581DXB

CAGE

NEEDLE VALVE AND CAGE WITH GASKET, 25948D

1шт.

57

59241D

GASKET

NEEDLE VALVE CAGE GASKET (Will work for 25948D)

1шт.

58

121733

BRACKET

FOLLOWS REF. NO. 41

1шт.

59

132203

FOLLOWS REF. NO. 41 Slotted Fil Hd, #12-24 x 7/8"

1шт.

60

18377D

GASKET

STRAINER SCREEN GASKET

1шт.

61

29902DX

SCREEN

STRAINER SCREEN RETAINER WITH SCREEN

1шт.

62

35691DA

FUEL BOWL, complete

1шт.

62513DX

CHOKE CONTROL ROD AND BUTTON ("MD" AND "MDV" tractors not equipped with voltage regulation)

1шт.

103361

PIN, SPLIT (COTTER)

COTTER PIN, 1/16 x 1/2"

1шт.

357405R91

COLD STORAGE CHOKE IMPROVEMENT PACKAGE (Includes 2 screws, 31636D, shaft, 56537DAX, shaft, 56638DAX and shutter, 356850R11) (For 53873DG Carburetor)

1шт.

355705R91

CHOKE CONTROL ROD AND BUTTON ("MD" and "MDV" tractors equipped with voltage regulation)

1шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

1шт.
