Запчасти Case IH FARMALL MD (305) - ATTACHMENTS, ENGINE HOURMETER, SPECIAL Attachments

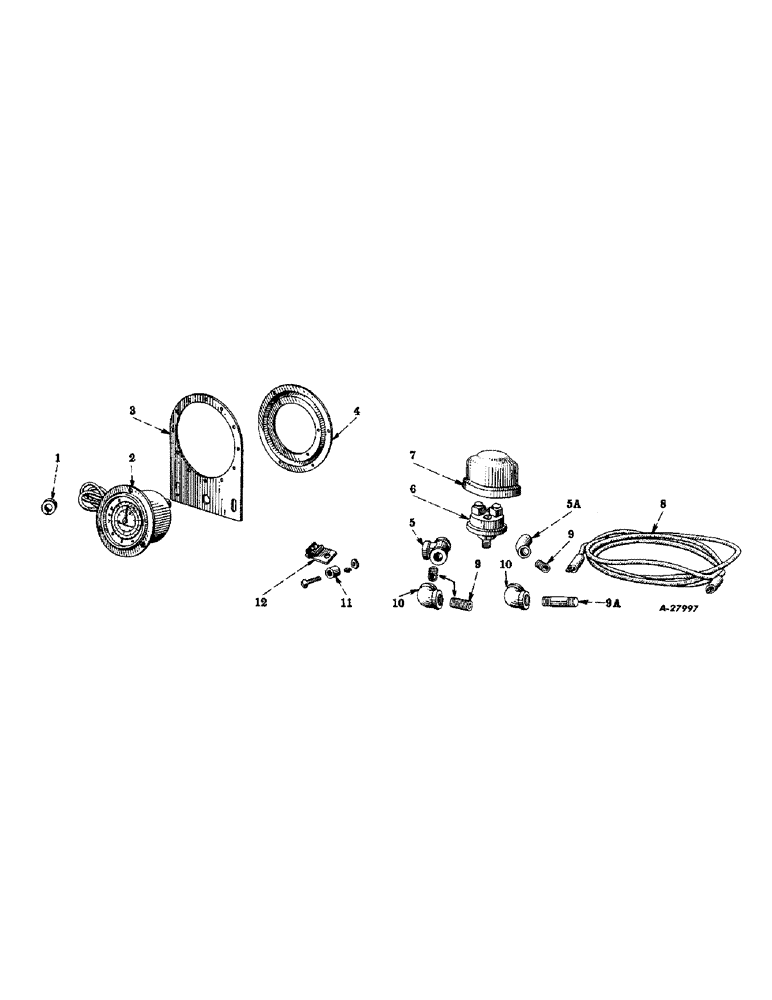

Схема запчастей Case IH FARMALL MD - (305) - ATTACHMENTS, ENGINE HOURMETER, SPECIAL Attachments
12
4
5a
11
10
9
1
5
9
7
8
10
2
6
9a
3

Артикул

Название

Примечание

Количество

356735R91

ENGINE HOURMETER ATTACHMENT (6 volt) (For M and MV tractors equipped with electric starting and/or lighting)

1шт.

356740R91

ENGINE HOURMETER ATTACHMENT (12 volt) (For MD and MDV tractors equipped with electric starting and/or lighting)

1шт.

1

33560D

RUBBER GROMMET ("M" and "MV" only) (Optional with 187540)

1шт.

1

187540

RUBBER GROMMET ("M" and "MV" only) (Optional with 33560D) 1/4" ID x 5/8" x .125", Diag Cut

1шт.

2

356736R91

HOURMETER (6 volt) ("M" and "MV" only)

1шт.

2

356741R91

HOURMETER (12 volt) ("MD" and "MDV" only)

1шт.

132705

GEARBOX

SLOTTED SCREW, no. 6-32 x 1/2" round head (Cadmium plated)

3шт.

138526

LOCK WASHER

LOCKWASHER, no. 6 (Cadmium plated)

3шт.

3

356738R1

HOURMETER MOUNTING BRACKET

1шт.

171589

SLOTTED SCREW, no. 12-24 x 1/2" round head self tapping (Cadmium plated)

2шт.

125751

WASHER,Ext Tooth, #10

LOCKWASHER, no. 12

2шт.

446179

WASHER,#12

1/2" O.D. x 1/4" I.D. x no. 18 ga.

2шт.

4

356737R91

DAMPER

HOURMETER VIBRATION DAMPLER

1шт.

132705

GEARBOX

SLOTTED SCREW, no. 6-32 x 1/2" round head (Cadmium plated)

3шт.

138526

LOCK WASHER

LOCKWASHER, no. 6

3шт.

5

105416

TEE,1/8" NPT, Fem

PIPE TEE, 1/8" ("M" and "MV" only)

1шт.

5a

NLS

NO LONGER SERVICED

ELBOW, 1/8" malleable iron, 45 degrees ("MD" and "MDV" only)

1шт.

6

132244R91

SWITCH

HOURMETER PRESSURE SWITCH (Will work for 356739R91) (Optional with 277748R91)

1шт.

6

277748R91

PRESSURE SWITCH

HOURMETER PRESSURE SWITCH (Will work for 356739R91) (Optional with 132244R91)

1шт.

7

354558R1

SHIELD

PRESSURE SWITCH SHIELD

1шт.

8

358581R91

PRESSURE SWITCH TO JUNCTION BLOCK CABLE (Will work for 70261D)

1шт.

9

144580

NIPPLE, LUBE,Nipple, 1/8" NPT x 7/8"

NIPPLE, 1/8 x 7/8" close ("M" and "MV" only)

2шт.

9

144580

NIPPLE, LUBE,Nipple, 1/8" NPT x 7/8"

NIPPLE, 1/8 x 7/8" close ("MD" and "MDV" only)

1шт.

9a

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE, 1/8 x 1-1/2" long ("MD" and "MDV" only)

1шт.

10

105412

ELBOW,90 Degree, 1/8" NPT

1/8" malleable iron, 90 degrees

1шт.

11

354260R1

SPACER,1/8" Pipe x 7/16"

JUNCTION BLOCK SPACER

1шт.

12

42915D

BLOCK

JUNCTION BLOCK

1шт.

132919

SCREW,Sl Rnd Hd, #10 - 32 x 7/8"

SLOTTED SCREW, no. 10-32 x 7/8" round head (Cadmium plated)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Выбрано товаров: 30
