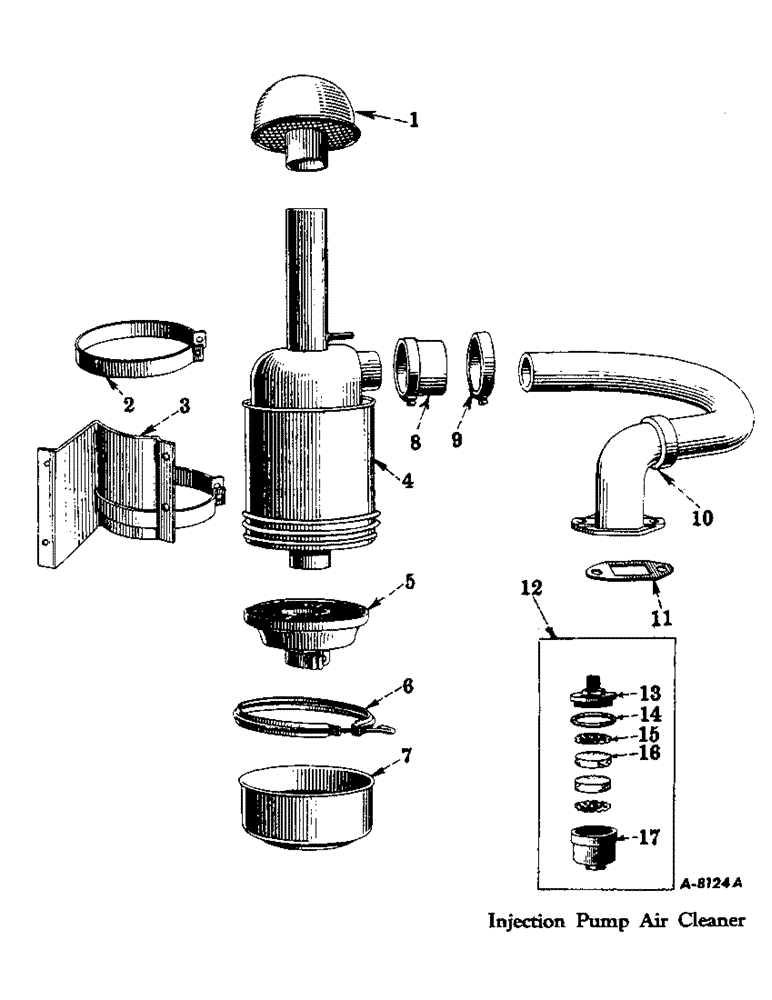

Запчасти Case IH FARMALL MD (181) - CHASSIS, AIR CLEANER AND CONNECTIONS, "MD" AND "MDV" (12) - CHASSIS

357659R92

AIR CLEANER, complete (7") (Donaldson)

1шт.

1

353018R92

CYLINDER END CAP

AIR INTAKE CAP (Will work for 49357DA)

1шт.

2

53051DX

AIR CLEANER BRACKET BAND WITH NUT, 105605 AND SCREW, 117296

2шт.

117296

SCREW, 5/16 x 1-1/2" N.C. fillister head

2шт.

25-285

SQUARE NUT,Sq, 5/16"-18

SQUARE NUT, 5/16" N.C.

2шт.

3

60927D

AIR CLEANER BRACKET

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

357716R92

BODY, complete (Will work for 61409DA)

1шт.

5

67120DA

HOUSED SCREEN AND BAFFLE, complete (Will work for 54261D, 54274D and 54275D)

1шт.

114357

SCREW, 1/4 x 1" N.C., fillister head

1шт.

13000R1

HEX NUT, 1/4" N.C.

1шт.

6

54269D

OIL CUP RETAINING CLAMP, complete

1шт.

7

355444R92

OIL CUP, complete

1шт.

8

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

9

45813D

CLAMP

AIR CLEANER PIPE HOSE CLAMP

2шт.

10

60930DA

AIR CLEANER PIPE, with elbow and plug, 103879

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103879

PIPE PLUG, 3/8" (Used only with tractors equipped with Bosch fuel injection pump)

1шт.

11

54040D

GASKET

AIR CLEANER PIPE ELBOW GASKET

1шт.

12

64643D

INJECTION PUMP AIR CLEANER, complete, "MD" and "MDV" Tractors equipped with IH fuel injection pump

1шт.

13

9454D

INJECTION PUMP AIR CLEANER CAP, "MD" and "MDV" Tractors equipped with IH fuel injection pump

1шт.

14

64576D

INJECTION PUMP AIR CLEANER BODY GASKET, "MD" and "MDV" Tractors equipped with IH fuel injection pump

1шт.

15

64578D

INJECTION PUMP AIR CLEANER FILTER ELEMENT RETAINER, "MD" and "MDV" Tractors equipped with IH fuel injection pump

2шт.

16

64577D

INJECTION PUMP AIR CLEANER FILTER ELEMENT, "MD" and "MDV" Tractors equipped with IH fuel injection pump

2шт.

17

9453D

INJECTION PUMP AIR CLEANER BODY, "MD" and "MDV" Tractors equipped with IH fuel injection pump

1шт.
