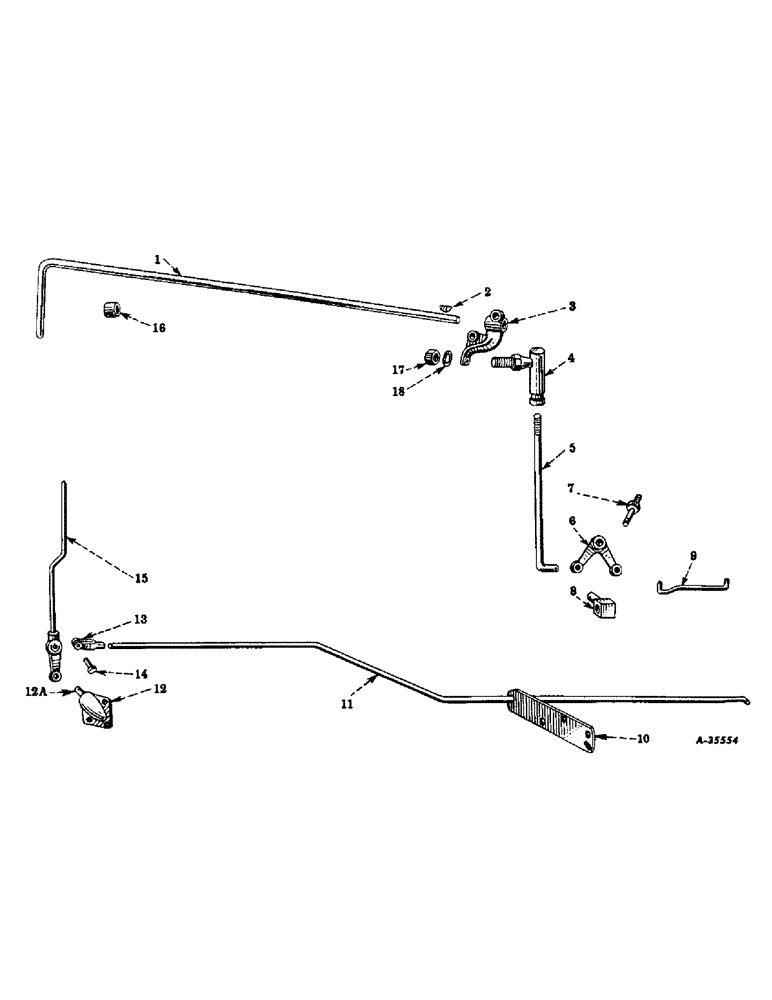

Запчасти Case IH FARMALL MD (177) - CHASSIS, GOVERNOR AND STARTING MECHANISM CONTROLS, "MD" AND "MDV" (12) - CHASSIS

1

60933DB

GOVERNOR CONTROL SHAFT

1шт.

2

114813

KEY

GOVERNOR CONTROL SHAFT KEY (Woodruff 5/32 x 7/8")

1шт.

3

9127D

GOVERNOR CONTROL SHAFT ARM

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102834

TUBE

SET SCREW, 5/16 x 1-1/2" N.C. headless (Dog point)

1шт.

218437

HEX JAM NUT, 5/16" N.C.

1шт.

4

61175D

GOVERNOR CONTROL ROD JOINT

1шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2" N.F.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

60934DA

GOVERNOR CONTROL ROD

1шт.

25-118

NUT,1/2"-20, G5

HEX NUT, 1/2" N.F.

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

6

60851DA

GOVERNOR CONTROL ROD BELLCRANK

1шт.

7

60850DA

GOVERNOR CONTROL ROD BELLCRANK STUD

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

Q3035

WASHER, 17/32" I.D. x 1" O.D. x no. 16 ga.

1шт.

8

60935D

GOVERNOR CONTROL ROD ADJUSTING BLOCK

1шт.

Q1597

WASHER

13/32" I.D. x 3/4" O.D. x no. 16 ga.

1шт.

9

60849D

GOVERNOR CONTROL ROD, upper

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Q1504

WASHER

13/32" I.D. x 7/8" O.D. x no. 16 ga.

1шт.

10

60940DA

GOVERNOR CONTROL ROD GUIDE BRACKET

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(S/N 501 to 155755) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8" N.C. x 1-1/8" hex head (S/N 155756 up)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8" N.C. x 1-3/4" hex head (S/N 155756 up)

1шт.

280136

NUT,3/8"-16, G8

(S/N 155756 up) 3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

356721R1

STARTING CONTROL ROD (Will work for 60951DX)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

JAM NUT, 1/2" N.F.

1шт.

12

9129DX

STARTING CONTROL HAND LEVER BRACKET WITH SHAFT, 60948D

1шт.

NLS

NO LONGER SERVICED

3шт.

280136

NUT,3/8"-16, G8

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

Q1520

WASHER

17/32" I.D. x 1" O.D. x no. 14 ga.

1шт.

12a

60948D

STARTING CONTROL HAND LEVER SHAFT

1шт.

13

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

STARTING CONTROL ROD ADJUSTABLE YOKE (Same as 15033H)

1шт.

14

103498

CLEVIS PIN,1/2" x 1.360"

STARTING CONTROL ROD ADJUSTABLE YOKE PIN (Same as 15041H)

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

15

60949DX

STARTING CONTROL HAND LEVER WITH HANDLE

1шт.

16

60939D

GOVERNOR CONTROL SHAFT BEARING SPACER

1шт.

84-55

SET SCREW,Hex Soc, 5/16"-24 x 5/16"

SET SCREW, 5/16" N.F. hex socket (Cup point)

2шт.

17

25-118

NUT,1/2"-20, G5

FOLLOWS REFERENCE NO. 4

1шт.

18

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Follows ref #4 1/2"

1шт.
