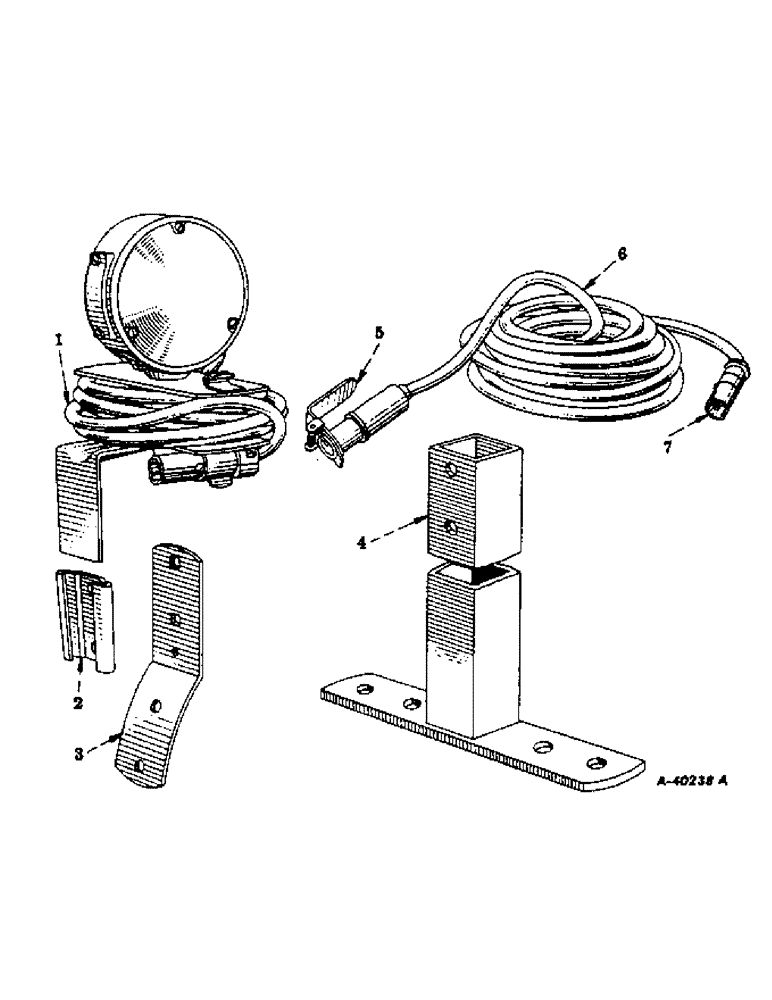

Запчасти Case IH FARMALL M (161) - ELECTRICAL SYSTEM, CARBURETED AND DIESEL ENGINE, SAFETY LIGHT, EXTENSION CABLE & SUPPORT, SPECIAL (06) - ELECTRICAL SYSTEMS

1

367813R91

SAFETY LIGHT (6 volt) (For components see list of parts under detail of "Safety light") (A)

1шт.

363914R91 Safety Light Package (6 volt) (Consists of parts listed in this unit except as noted) ::1

1шт.

1

367814R91

SAFETY LIGHT (12 volt) (For components see list of parts under detail of "Safety light") (B)

1шт.

363915R91 Safety Light Package (12 volt) (Consists of parts listed in this unit except as noted) ::1

1шт.

2

363919R1

SOCKET

SAFETY LIGHT BRACKET SOCKET

1шт.

14490R1

CARRIAGE BOLT, 5/16-18NC x 5/8" sq-nk. (Used on tractors equipped with fenders)

2шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

5/16-18NC x 2" sq-nk. (See note)

2шт.

120276

SCREW

HEX NUT, 5/16-18NC (Cadmium plated)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

363920R1

SAFETY LIGHT BRACKET (Used on tractors with fenders)

1шт.

120376

NUT,5/16"-18, G5

2шт.

142849

MACHINE SCREW, 5/16-18NC slotted-truss hd. (Cadmium plated)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

364290R11

SAFETY LAMP SUPPORT (See note)

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4" N.C. hex

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (See Note) 1/2"

2шт.

5

365446R91

SOCKET/RECEPTACLE

BREAK-AWAY CONNECTOR SOCKET, w/cap, cover and spring (Used with the extension cable) (See note)

1шт.

6

365444R91

EXTENSION CABLE, twenty-four ft., w/plug, 364559R1 and socket, 365446R91 (Special) (For tractors equipped with electrical break away connector socket) (See note)

1шт.

7

364559R91

PLUG

BREAK-AWAY CONNECTOR SOCKET PLUG (For use with 21/64" O.D. cable) (Used with the extension cable) (See note)

1шт.
