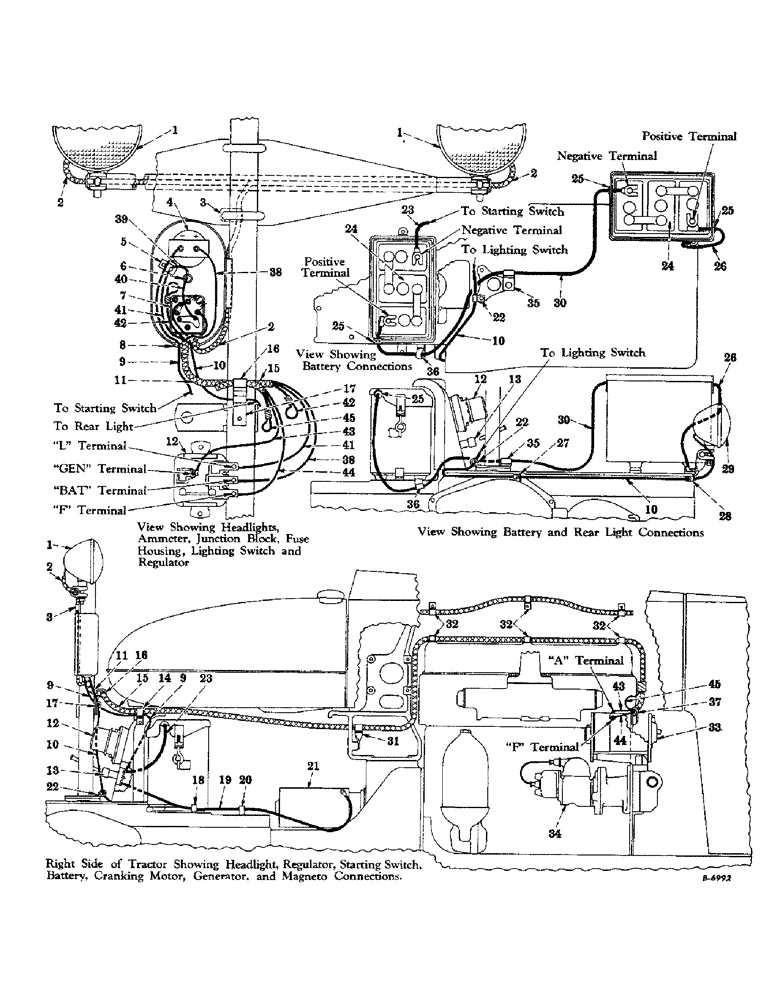

Запчасти Case IH FARMALL M (135) - ELECTRICAL SYSTEM, DIESEL ENGINE, ELECTRIC LIGHTING & STARTING ATTACHMENT, MAGNETO IGNITION (06) - ELECTRICAL SYSTEMS

1

61225DB

LAMP

HEADLIGHT (12-volt) (Conventional) (For components see list of parts under "Detail of headlights or rear light")

2шт.

1

357885R94

LAMP

HEADLIGHT (12-volt) (Sealed beam) (For components see list of parts under "Detail of headlights of rear light")

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

52973DA

HARNESS

HEADLIGHT CABLE HARNESS

1шт.

3

350742R1

CLIP, on lower "U" bolt of headlight support bracket

1шт.

For tractors equipped with voltage regulation

1шт.

4

42383DC

AMMETER

(AC) W/CLAMP, four nuts and four washers (Optional with 354473R91)

1шт.

4

354473R91

AMMETER

(Rochester) W/CLAMP, four nuts and four washers (Optional with 42383DC)

1шт.

4

360053R91

INDICATOR

CHARGE INDICATOR (Rochester Mfg.), w/clamp, four nuts and two washers

1шт.

5

42915D

BLOCK

JUNCTION BLOCK

1шт.

110503

SLOTTED SCREW, no. 10 x 7/8" N.C. round head

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

For tractors equipped with voltage regulation

1шт.

6

354232R91

BOX

FUSE HOUSING (Includes knob, 356445R91)

1шт.

For tractors equipped with voltage regulation

1шт.

7

LIGHTING SWITCH, complete (For components see list of parts under "Detail of lighting switch")

1шт.

For tractors equipped with voltage regulation

1шт.

141706

WASHER

LOCKWASHER, 11/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

42865

GROMMET, on electrical instrument mounting panel cover (Optional with 52062D)

1шт.

8

52062D

GROMMET

on electrical instrument mounting panel cover (Optional with 42865D)

1шт.

9

57061DX

CABLE, starting switch to ammeter with loom, 38094D

1шт.

For tractors not equipped with voltage regulation

1шт.

9

358120R91

CABLE

starting switch to ammeter (Will work for 354276R91)

1шт.

For tractors equipped with voltage regulation

1шт.

10

358121R91

CABLE

switch to rear light (Will work for 61599D)

1шт.

For tractors equipped with voltage regulation

1шт.

10

358563R91

CABLE, switch to rear light (Will work for 62868DX)

1шт.

For tractors not equipped with voltage regulation

1шт.

11

355703R91

REGULATOR CABLE HARNESS

1шт.

For tractors not equipped with voltage regulation

1шт.

12

360899R91

REGULATOR

VOLTAGE REGULATOR (Will work for 355701R91) (Delco-Remy 1118799)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

NLS

NO LONGER SERVICED

HEX NUT, 1/4" N.C.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

356913R91

SWITCH

STARTING SWITCH (Will work for 64931H)

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

MACHINE SCREW, 1/4 x 1/2" N.C. slotted round head

2шт.

NLS

NO LONGER SERVICED

HEX NUT, 1/4" N.C.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

56273D

CLIP, on rear fuel tank support, upper hole, right side

1шт.

For tractors equipped with voltage regulation

1шт.

14

56275D

CLIP, on rear fuel tank support, upper hole, right side

1шт.

For tractors not equipped with voltage regulation

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

NLS

NO LONGER SERVICED

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

62504D

CABLE HARNESS

1шт.

For tractors not equipped with voltage regulation

1шт.

15

355702R91

CABLE HARNESS

1шт.

For tractors equipped with voltage regulation

1шт.

16

355704R1

CLIP, on control bracket mounting bolt

1шт.

For tractors equipped with voltage regulation

1шт.

17

355098

CLIP, on control bracket mounting bolt

1шт.

For tractors equipped with voltage regulation

1шт.

18

56277D

CLIP, on brake pedal stop front mounting bolt

1шт.

19

62510DA

CABLE ASSY.

CABLE, cranking motor to starting switch

1шт.

20

56277D

CLIP, on main frame cover front bolt (Will work for 56279D)

1шт.

21

61061DA

CRANKING MOTOR

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

355098R1

CLIP, on steering post base L.H. front mounting bolt

1шт.

For tractors equipped with voltage regulation

1шт.

23

62509DB

CABLE

battery to starting switch (Suspension and battery box package)

1шт.

23

62509DB

CABLE

battery to starting switch

1шт.

24

60910DB

BATTERY (Auto-Lite) (See note)

2шт.

24

356862R91

BATTERY (Globe-Union) (See note)

2шт.

24

355196R91

BATTERY (Auto-Lite) (Used for lighting attachment only)

1шт.

25

24179D

GROMMET,5/8" ID x 7/8" Groove Dia

BATTERY BOX GROMMET

4шт.

26

39265DA

CABLE, battery to ground (Tractors with remote control)

1шт.

26

62507DA

CABLE

battery to ground (Tractors without remote control)

1шт.

27

351794R1

CLIP, on brake housing mounting bolt, upper bolt, rear

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

351794R1

CLIP, on rear frame cover

1шт.

29

61225DB

LAMP

REAR LIGHT (12-volt) (Conventional) (For components see list of parts under "Detail of headlights or rear light")

1шт.

29

357885R94

LAMP

REAR LIGHT (12-volt) (Sealed beam) (For components see list of parts under "Detail of headlights or rear light")

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

30

62508DA

CABLE, Serial Range: battery-battery

1шт.

31

62505D

CLIP, on fuel tank front support

1шт.

For tractors equipped with voltage regulation

1шт.

32

355097R1

CLIPS, on valve cover studs

3шт.

For tractors equipped with voltage regulation

1шт.

33

355694R91

GENERATOR (Delco-Remy no. 1100964) (For components see list of parts under "Detail of generators")

1шт.

For tractors equipped with voltage regulation

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

49094DC

MAGNETO (Not part of attachment)

1шт.

35

62512D

CLIP, on steering post base bolt, rear

1шт.

36

62511D

CLIP, on third bolt from front of rear frame cover, left side

1шт.

37

355098R1

CLIP, on water pump upper R.H. mounting bolt

1шт.

38

CABLE, regulator "Bat" terminal to ammeter (Natural with black and red cross tracers) (Order 355703R91)

1шт.

For tractors equipped with voltage regulation

1шт.

39

CABLE, fuse housing to junction block

1шт.

40

CABLE, fuse housing to lighting switch

1шт.

41

CABLE, regulator "L" terminal to junction block (Natural with green cross tracers) (Order 355703R91)

1шт.

42

TAPE

1шт.

43

CABLE, regulator "Gen" terminal to generator "A" terminal (Natural with red cross tracers) (Order 355702R91)

1шт.

For tractors equipped with voltage regulation

1шт.

44

CABLE, regulator "F" terminal to generator "F" terminal (Natural with black tracers) (Order 355702R91)

1шт.

For tractors equipped with voltage regulation

1шт.

45

TAPE

1шт.

Q1249

STARTING SWITCH CONTROL ROD

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

6572DA

GENERATOR PULLEY

1шт.

For tractors not equipped with voltage regulation

1шт.

8385D

GENERATOR BRACKET

1шт.

For tractors not equipped with voltage regulation

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9231DA

REAR LIGHTING SUPPORT (Optional with 353642R11) (S/N FDBK up)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

10815V

FUSE

(3AG-10 or equivalent)

1шт.

26375H

BATTERY POST POSITIVE TERMINAL WITH BOLT, 26453HX (For 62507D and 62508D only)

2шт.

26377H

TERMINAL BATTERY TO GROUND CABLE (Order 34745H)

1шт.

26377H

TERMINAL, battery to starting switch cable (Order 46074H)

1шт.

26377H

TERMINAL, starting switch to cranking motor cable (Order 46074H)

2шт.

26453HX

BOLT,Sq Hd, 5/16" - 18 x 1 1/4", Lead

BATTERY TERMINAL BOLT WITH NUT (2 used for lighting attachment only)

4шт.

27377D

LOOM, battery to ground cable (Used for lighting attachment only)

1шт.

27618D

STARTING SWITCH TO AMMETER CABLE LOOM CLAMP RING (Used for lighting attachment only)

2шт.

27618D

BATTERY TO GROUND CABLE LOOM CLAMP RING (Used for lighting attachment only)

2шт.

27618D

BATTERY TO AMMETER CABLE LOOM CLAMP (Used for lighting attachment only)

2шт.

28428D

LOOM CLAMP

1шт.

For tractors not equipped with voltage regulation

1шт.

32215D

RELAY MOUNTING SPACER

2шт.

For tractors not equipped with voltage regulation

1шт.

34745H

TERMINAL, battery to ground cable (For 62507D only)

1шт.

38094D

LOOM, starting switch to ammeter cable

1шт.

For tractors not equipped with voltage regulation

1шт.

38777D

BATTERY POST NEGATIVE TERMINAL WITH BOLT, 26453HX (Used for lighting attachment only)

1шт.

38778D

BATTERY POST POSITIVE TERMINAL WITH BOLT, 26453HX (Used for lighting attachment only)

1шт.

42916D

JUNCTION BLOCK BRACKET

1шт.

For tractors not equipped with voltage regulation

1шт.

45640DB

LAMP

HEADLIGHT OR REAR LIGHT (Conventional) (For components see list of parts under "Detail of headlights or rear light") (Used for lighting attachment only)

2шт.

357884R94

LAMP

HEADLIGHT OR REAR LIGHT (Sealed beam) (For components see list of parts under "Detail of headlights or rear light")

2шт.

102637

NUT,1/2"-13, G5

(Used for lighting attachment only) 1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (Used for lighting attachment only) 1/2"

2шт.

46074H

TERMINAL, battery to starting switch cable (For 62509D only)

1шт.

46074H

TERMINAL, battery switch to cranking motor cable (For 62510D only)

2шт.

47877D

GENERATOR BRACE STUD

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

47885D

GENERATOR RELAY (Used for lighting attachment only)

1шт.

For tractors not equipped with voltage regulation

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

CAP SCREW, 1/4 x 5/8" N.F. hex head (Used for lighting attachment only)

2шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F. (Used for lighting attachment only)

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (Used for lighting attachment only) 1/4"

2шт.

49069D

SPACER

HEADLIGHT OR REAR LIGHT SPACER

3шт.

50929DCX

ELECTRICAL INSTRUMENT MOUNTING PANEL

1шт.

For tractors not equipped with voltage regulation

1шт.

51063DA

SCREW

ELECTRICAL INSTRUMENT MOUNTING PANEL SCREW

2шт.

225-10108

NUT,#8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

51584D

RELAY MOUNTING SPACER (S/N FDBK up)

1шт.

For tractors not equipped with voltage regulation

1шт.

51675DC

HEADLIGHT SUPPORT PIPE AND PLATE

1шт.

51707D

BATTERY BOX WITH 2 EYEBOLTS, 51684DX AND 2 NUT, 103127

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

CAP SCREW, 3/8 x 3/4" N.F. hex head

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

CAP SCREW, 3/8 x 7/8" N.F. hex head

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

51711D

BATTERY BOX ANCHOR STRIP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8" N.C. hex hd

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

LOCKWASHER, 3/8

2шт.

51712D

BATTERY SUPPORT LOCK BOLT

2шт.

359165R91

ELECTRICAL INSTRUMENT MOUNTING PANEL COVER (Will work for 51765DAX)

1шт.

131485

HEX NUT, 5/16" N.F. low crown

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

52035D

BATTERY BOX SPACER (Used for lighting attachment only)

1шт.

52118D

GROMMET

battery box (Order 24179D)

3шт.

52297D

RELAY

GENERATOR RELAY (Delco-Remy no. 1116808)

1шт.

For tractors not equipped with voltage regulation

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

CAP SCREW, 1/4 x 5/8" N.F. hex head

2шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

52318DA

V-BELT,0.55" W

Generator 0.55" W

1шт.

53108DX

BATTERY POST NEGATIVE TERMINAL WITH BOLT, 26453HX (For 62508D and 62509D only)

2шт.

53124D

BATTERY TO STARTING SWITCH CABLE INSULATING TUBING

1шт.

53184DA

GENERATOR BRACE

1шт.

For tractors not equipped with voltage regulation

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

57063D

BATTERY TO AMMETER CABLE LOOM (Used for lighting attachment only)

1шт.

57356D

TERMINAL, battery to ground cable (Used for lighting attachment only)

1шт.

59468D

HEADLIGHT SUPPORT "U" BOLT

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

60938D

CABLE CLIP (4 used for lighting attachment only) (3 used on starting attachment only) (Optional with 61032D)

4шт.

NLS

NO LONGER SERVICED

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61032D

CABLE CLIP (4 used for lighting attachment only) (3 used on starting attachment only) (Optional with 60938D)

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

358575R91

CABLE PULLING GRIP

CABLE, Serial Range: ammeter-switch

1шт.

For tractors equipped with voltage regulation

1шт.

61478DA

ELECTRICAL INSTRUMENT MOUNTING PANEL (Used for starting attachment only)

1шт.

62501D

CABLE, battery to ground, complete (Used for lighting attachment only)

1шт.

62502D

CABLE, battery to ammeter with loom, 57063D (Used for lighting attachment only)

1шт.

62503D

GENERATOR TO RELAY CABLE HARNESS

1шт.

For tractors not equipped with voltage regulation

1шт.

62505D

CLIP, on governor control rod bracket mounting

1шт.

For tractors not equipped with voltage regulation

1шт.

62506D

JUNCTION BLOCK AND BRACKET

1шт.

For tractors not equipped with voltage regulation

1шт.

62512D

CLIP, on seat support bracket mounting bolt, right side

1шт.

For tractors not equipped with voltage regulation

1шт.

62512D

CLIP, on battery cable (Used with hydraulic seat suspension and battery box package)

1шт.

62513DX

CHOKE CONTROL ROD AND BUTTON

1шт.

For tractors not equipped with voltage regulation

1шт.

103361

PIN, SPLIT (COTTER)

COTTER PIN, 1/16 x 1/2"

1шт.

62514D

BATTERY BOX (S/N FDBK, Serial Range: 501-149583)

1шт.

62520D

BATTERY BOX HOLD-DOWN BOLT (S/N FDBK, Serial Range: 501-149583)

3шт.

103026

NUT,3/8"-24, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

62521D

BATTERY BOX BATTERY SPACER

4шт.

66836D

REAR LIGHT SUPPORT, 9231DA with cap screw, 179874 (Will work for 9231D) (S/N FBK, Serial Range: 501-)

1шт.

350525R1

LOOM CLAMP

1шт.

For tractors not equipped with voltage regulation

1шт.

350920R1

CLAMP

HEADLIGHT OR REAR LIGHT CLAMP (Will work for 6780D)

3шт.

351749R1

TAIL LIGHT CABLE CLIP

1шт.

For tractors not equipped with voltage regulation

1шт.

352787R91

BATTERY BOX, on rear frame cover (S/N FDBK 149584 up)

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

352788R1

BATTERY BOX SUPPORT, rear (S/N FDBK 149584 up)

1шт.

352789R1

BATTERY BOX SUPPORT, front (S/N FDBK 149584 up)

1шт.

352790R1

BATTERY BOX HOLD-DOWN BOLT (S/N FDBK 149584 up)

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

353642R11

REAR LIGHT SUPPORT (Optional with 9231DA) (FDBK up)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

JUNCTION BLOCK SPACER

1шт.

For tractors equipped with voltage regulation

1шт.

354262R1

ELECTRICAL INSTRUMENT MOUNTING PANEL

1шт.

For tractors equipped with voltage regulation

1шт.

355097R1

CLIP, cable harness

5шт.

For tractors not equipped with voltage regulation

1шт.

355695R1

GENERATOR BRACKET

1шт.

For tractors equipped with voltage regulation

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

355696R1

GENERATOR BRACE

1шт.

For tractors equipped with voltage regulation

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

355697R2

GENERATOR PULLEY

1шт.

For tractors equipped with voltage regulation

1шт.

355700R1

VOLTAGE REGULATOR MOUNTING BRACKET

1шт.

For tractors equipped with voltage regulation

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

NLS

NO LONGER SERVICED

HEX NUT, 1/4" N.C.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

355705R91

CHOKE CONTROL ROD AND BUTTON

1шт.

For tractors equipped with voltage regulation

1шт.

NLS

NO LONGER SERVICED

COTTER PIN, 1/16 x 1/2"

1шт.

355757R1

BELT PULLEY CONTROL BRACKET

1шт.

For tractors equipped with voltage regulation

1шт.

179814

SPACER

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

356062R91

BOLT

BATTERY TERMINAL BOLT ASSEMBLY (Service for battery cables)

1шт.

356445R91

KNOB

FUSE HOLDER KNOB

1шт.

358285R1

SPACER,3/8" Pipe x 1 3/8"

GROUND STRAP SPACER (Used with hydraulic seat suspension and battery box package)

1шт.

433142

BOLT

CAP SCREW, 7/16 x 4-1/2" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

358987R92

CABLE

STRAP, battery to ground (Used with hydraulic seat suspension and battery box package)

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

LOCKWASHER, 3/8" external tooth (Same as 21491H)

2шт.

352839R91

ATTACHMENT (Complete attachment discontinued), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

3281DAX

GENERATOR SADDLE WITH DOWEL PIN, 23603D, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

186310

SCREW

CAP SCREW, 3/8 x 3-1/2" N.F. hex head, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

103026

NUT,3/8"-24, G5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"

1шт.

6780D

CLAMP

LIGHT CLAMP (Order 350920R1), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

3шт.

9168D

GENERATOR PULLEY, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

9169D

GENERATOR BRACKET, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

CAP SCREW, 7/16 x 1-1/8" N.C. hex head, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 7/16"

2шт.

9231D

REAR LIGHT SUPPORT (Order 66836D) (S/N FBK 501 to ), electric lighting (bosch no-battery generator)- special (2 headlights and 1) "MD" & "MDV"

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex, Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" Jam, 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"

1шт.

9231DA

REAR LIGHT SUPPORT (Optional with 353642R11) (S/N up), electric lighting (bosch no-battery generator)- special (2 headlights and 1) "MD" & "MDV"

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" Hex, 7/16"-14 x 4", G5

1шт.

23603D

GENERATOR DOWEL PIN, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

26080DB

GENERATOR STRAP, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

181326

CAP SCREW, 1/4 x 2-3/4" N.F. hex head, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" Hex, 5/16"-18 x 1 1/2", G5

1шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F., electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 5/16"

1шт.

27618D

LOOM CLAMP RING, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

4шт.

28428D

LOOM CLAMP, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

29336D

LOOM, switch to rear light cable, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

31553DX

CABLE, with loom, 31534D switch to generator, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

31534D

LOOM, switch to generator cable (S/N FBK 501 to ), electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

39273D

CABLE, switch to generator (S/N FBK up), electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

39274D

LOOM, switch to generator (S/N FBK up), electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

42865D

GROMMET, on electrical instrument mounting panel cover (Optional with 52062D), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

45640DB

LAMP

(6-volt) (For components see list of parts under "Detail of headlights or rear light"), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

3шт.

102637

NUT,1/2"-13, G5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 1/2"

3шт.

47877D

GENERATOR STUD, electric lighting (bosch no-batter)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

103026

NUT,3/8"-24, G5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"

1шт.

49069D

SPACER

HIGHLIGHT SPACER, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

3шт.

51063DA

SCREW

INSTRUMENT PANEL MACHINE SCREW, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

2шт.

225-10108

NUT,#8-32

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" #8-32

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" #8

2шт.

51675DC

HEADLIGHT SUPPORT WITH PIPE AND PLATE, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

51765DAX

ELECTRICAL INSTRUMENT MOUNTING PANEL COVER WITH BRACKET, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

131485

HEX NUT, low crown 5/16" N.F., electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 5/16"

1шт.

52062D

GROMMET

on electrical instrument mounting panel cover (Optional with 42865D), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

52973D

CABLE HARNESS, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

54857DA

BELT

GENERATOR BELT, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

56275D

ANGLE CABLE CLIP, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" Hex, 1/4"-20 x 3/8", G5, Full Thd

1шт.

NLS

NO LONGER SERVICED

HEX NUT, 1/4" N.C., electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 1/4"

1шт.

59468D

SUPPORT "U" BOLT, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

2шт.

103026

NUT,3/8"-24, G5

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"

4шт.

60937D

LOOM CLIP, 1/4" (For 1/4" bolt), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

60938D

CABLE CLIP, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

6шт.

NLS

NO LONGER SERVICED

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" Hex, 3/8"-16 x 1", G5

1шт.

220066

HEX NUT, 3/8" N.C., electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 3/8"

1шт.

61247DA

GENERATOR BRACE, electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" 5/16"

1шт.

95-11034

WASHER,1/4"

11/32" I.D. x 11/16" O.D. x no. 16 ga., electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

358575R91

CABLE PULLING GRIP

CABLE, switch to fuse block (S/N 501 to ), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

61262DX

INSTRUMENT PANEL (S/N 501 to ), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" #8

1шт.

61785D

GENERATOR (American Bosch ARJF 75/6-900A-16) (No longer supplied for service), electric lighting (bosch no-battery)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

All service and replacement parts for generator should be referred to an authorized United American Bosch Corporation service station, located in all principal cities. Orders must show Bosch generator number, part number and name.

1шт.

Batteries are not part of attachment

1шт.

62505D

CABLE HARNESS CLIP, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

66836D

LIGHT SUPPORT, 9231DA with cap screw, 179874 (Will work for 9231D) (S/N 501 to ), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

7472H

FUSE BLOCK (S/N 501 to ), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

100751

SCREW,Slotted Rd Hd, #8-32 x 1/2"

SLOTTED SCREW, no. 8-32 x 1/2" round head, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

225-10108

NUT,#8-32

Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" #8-32

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, , Electric lighting (Bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV" #8

1шт.

350920R1

CLAMP

(Will work for 6780D), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

3шт.

351794R1

REAR LIGHT CABLE CLIP, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

352797R11

INSTRUMENT PANEL (S/N up), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

353642R11

REAR LIGHT SUPPORT (Optional with 9231DA) (S/N up), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head, electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

358563R91

CABLE, switch to rear light (Will work for 62868DX), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

10815V

FUSE

(Cartridge type no. 3AG or equivalent) (S/N 501 to), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.

LIGHTING SWITCH (For components see list of parts under "details of lighting switch"), electric lighting (bosch no-battery generator)- special (2 headlights and 1 rear) "MD" & "MDV"

1шт.
